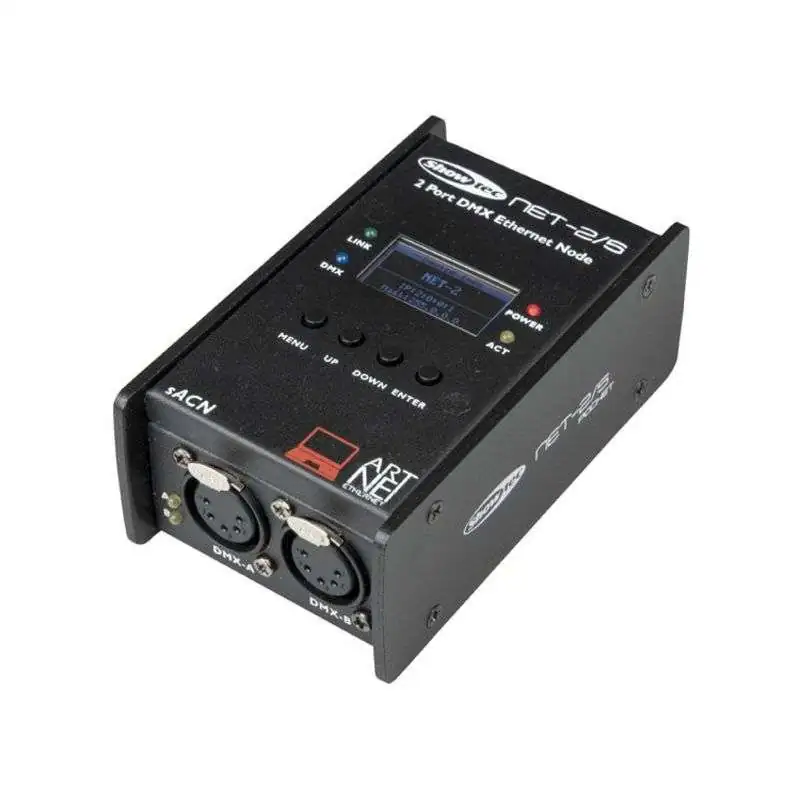

The Showtec NET-2/5 POCKET is an Artnet node with 2 channels and XLR, 5-pin. The Showtec NET-2/3 Pocket and the NET-2/5 Pocket are modern network routers that convert Artnet and SACN data into DMX-512 signals and vice versa. Power can be supplied via PoE and thus without the 12V power adapter. A maximum of 1024 channels can be transmitted via a simple CAT5 cable. All settings can be made with the clear menu on the graphical Display with the buttons on the front.

You can also make the settings remotely through a web browser via your network. Default login: admin, password: admin.

Specifications

Configuration examples:

• ArtNet to 2x DMX outputs
• 2x DMX inputs to ArtNet
• Clone 1 DMX input to 1x DMX output and Artnet
• HTP/LTP - combine 2x ArtNet to 1 DMX output
• HTP/LTP - merge DMX input and ArtNet to 1 DMX output

Connections:

• Network: RJ45
• DMX: 2x XLR, 5-pin
• Supported protocols: ArtNET, sACN, TCP/IPv4, DMX-512A
• Dimensions: 67 x 115 x 44 mm
• Power consumption: 12 VDC, 500 mA
• Power consumption: 6 W max.
• Operating temperature: 0 to +40 °C
• Weight: 335 g
