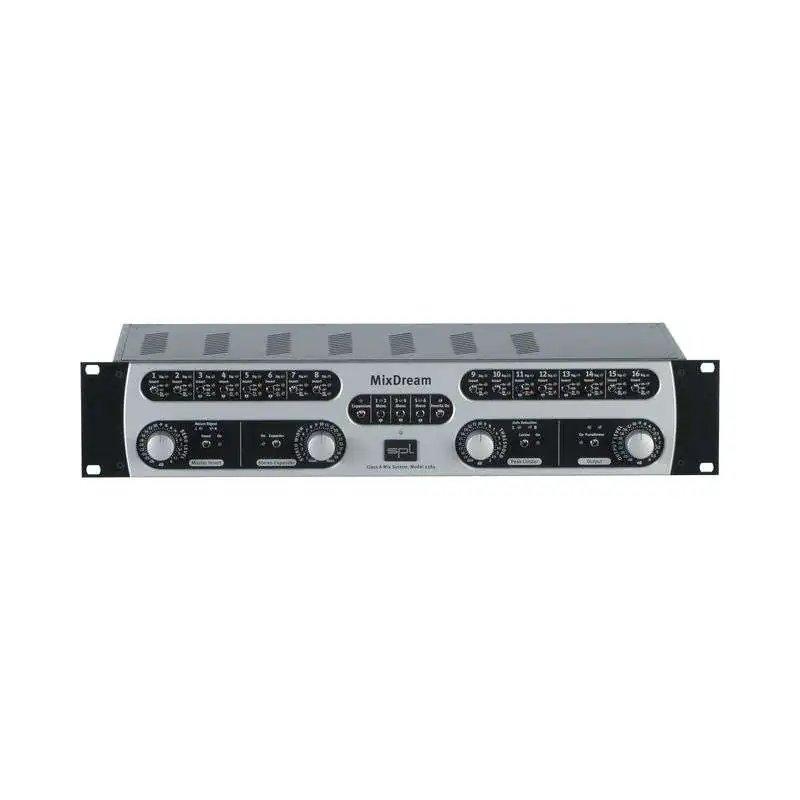

outboard mixer in a 19"/2U format. Any DAW or digital console can be expanded with active analog stereo summing and insert functionality. In use, the MixDream requires almost no departures from an engineer's usual working mode, so that all his trusted DAW features and familiar working routines remain available while the MixDream seamlessly expands his aural mixing palette.

TECHNCIAL SPECIFICATIONS

Freq. Response: >1Hz-220kHz (+/- 3dB)

THD+N Ratio: -104dB (20Hz-22kHz, Input +10dBu, all channels active)

Noise Level: -97dBu (20Hz-22kHz, A-weigted, all channels active)

Max Input Level: +28dBu (@1kHz)

Max Output Level: +28dBu (@1kHz/THD+N -95dBu)

Dynamic Range: 125dB (20Hz-22kHz, A-weigted, all channels active)

Crosstalk L/R: 97dB@1kHz

CMRR: >70dB (@1kHz, +10dBu input level)

Input Impedance: 10kOhm (for Input 1-16, Expansion, Insert Return)

Output Impedance: 82Ohm (for Master/Monitor Out w/o transformer, insert send)

Output Impedance: 65Ohm (for Master/Monitor Out with transformer)

Power consumption: 75W
