Visaton B 200 - 6 Ohm
157,25 €
VČETNĚ DANĚ
The Visaton B 200 - 6 Ohm is a 20 cm (8") high-end fullrange speaker.Thanks to the very light paper diaphragm and the optimized...
Doprava zdarma na tisíce položek
100% bezpečné online platby
30 dní možnost vrátit zboží

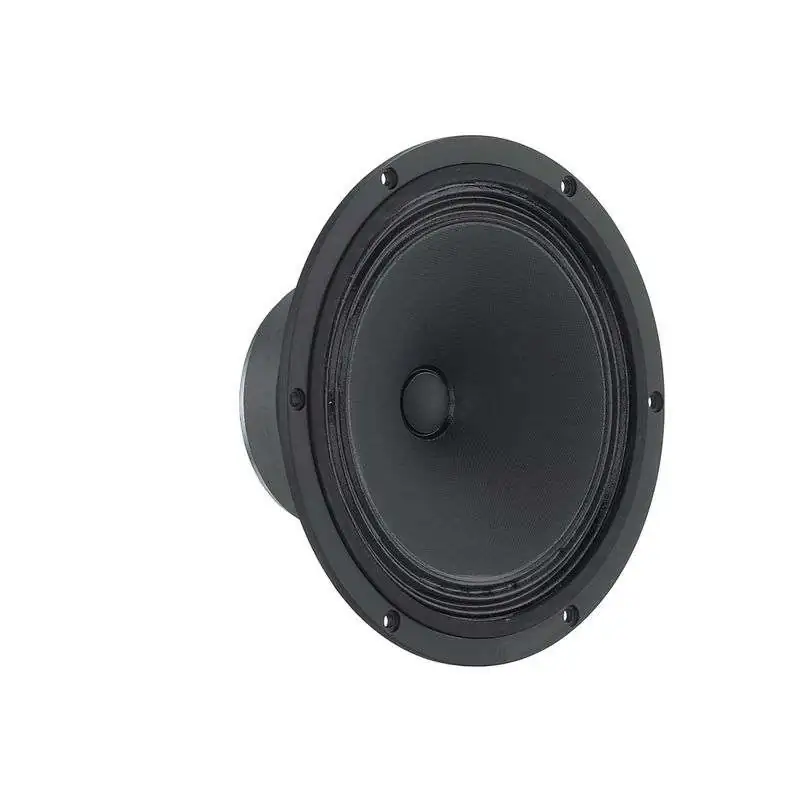

The Visaton B 200 - 6 Ohm is a 20 cm (8") high-end fullrange speaker.
Thanks to the very light paper diaphragm and the optimized drive with a 25 mm voice coil (aluminium wire), the full-range speaker has a very balanced frequency response without large fluctuations.
The Kapton voice coil former is ventilated.
Technical data:
- Power rating: 40 W
- Music power handling: 70 W
- Nominal impedance Z: 6 Ohm
- Frequency response (-10 dB): fu-18000 Hz
- Average sound pressure level: 96 dB (2.83 V/1 m)
- Beam angle (-6 dB): 48°/4000 Hz
- Maximum linear stroke: +/-3.5 mm
- Resonance frequency fs: 40 Hz
- Magnetic induction: 1.2 T
- Magnetic flux: 755 µWb
- Upper pole plate height: 8 mm
- Voice coil diameter: 25 mm
- winding height: 4 mm
- baffle opening: 190 mm
- Net weight: 2,16 kg
- DC resistance Rdc: 5,0 Ohm
- Mechanical Q-factor Qms: 8.39
- Electrical Q-factor Qes: 0.83
- Total Q factor Qts: 0.75
- Equivalent air compliance volume Vas: 102 l
- effective piston radiating area Sd: 214 cm²
- Dynamic moving mass Mms: 9,7 g
- Drive factor Wxl: 3.9 Tm
- voice coil inductance L: 0,5 mH
PAH0020344-000
Parametry
- Power Output (Watt)
- 70
- Frequency Response to (Hz)
- 18000
- Impedance (Ohm)
- 6
- Sensitivity (dB)
- 96
- Size (Inches)
- 8
- Manufacturer
- Visaton
