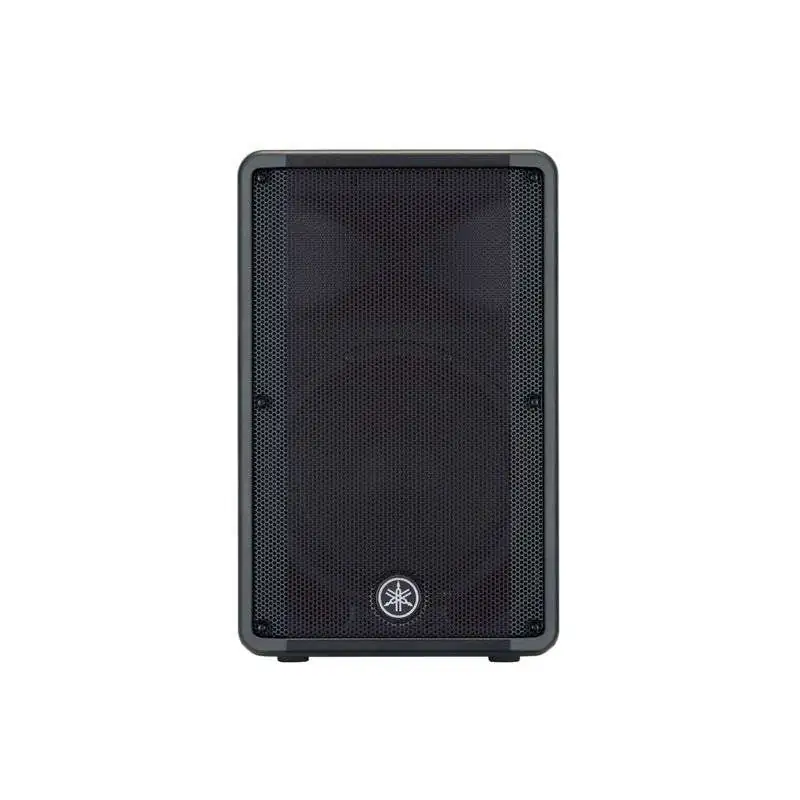

The portable, active DBR-12 loudspeakers from Yamaha impress by delivering up to a massive 131dB. Yamaha applied their proprietary FIR-X tuning to optimize the sound and protection algorithms, providing you with plenty of muscle from a compact, light weight and robust housing; ideal for FOH applications as well as for floor monitoring. Incredibly versatile and transportable, the DBR-12 delivers the best sound for any event, whether it is a live gig, DJ set or simply speech!

The DBR series is equipped with DSP technology, guaranteeing high-performance and reliability. The DBR series features rigging points (M8) for fixed installations and an integrated, easy to use 2 channel mixer for even more flexibility. The custom designed transducers deliver a strong performance with minimal distortion. Regardless of the powerful output level of up to 131dB and 1000W, the sound of the DBR-12 is of an exceptional quality and does not influence the performance.

Yamaha DBR12 Active Loudspeakers Features:

• Two-way 10" active speaker
• Frequency range: 52Hz - 20kHz
• Horizontal coverage angle: 90°
• Vertical coverage angle: 60°
• LF Driver: 12" cone, 2" Voice Coil, Ferrite Magnet
• HF Driver: 1.4" Diaphragm, 1" throat compression driver, Ferrite Magnet
• Output: Dynamic 1000W (LF: 800W, HF: 200W) / Constant: 465W (LF: 400W, HF: 65W)
• INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced)
• Outputs: XLR3-32 x 1 (CH1 Parallel or CH1+CH2 Mix)
• Processor: D-CONTOUR: FOH/MAIN, MONITOR, OFF
• Maximum output level (1m; on axis): 131dB SPL
• Crossover: 2.1kHz: FIR-X tuning™ (linear phase FIR filter)
• Colour: Black
• Dimensions: 376mm X 601mm X 348mm
• Weight: 15.8 kg
