      2-way active loudspeaker with bi-amping, 1000 Watt output, 131 dB SPL, 90° x 60° dispersion, 2x XLR combo jack / 2x RCA (L/R)
      Množství :
      Napište svou recenzi

      EU3234363840424446USXX5XSSMLXLXXLXXLArm Length6161,56262,56363,56464,5Bust Circumference8084889296101106111Waist Girth6165697377828792Hip Circumference87919599103108113118

      • Doprava zdarma na tisíce položekDoprava zdarma na tisíce položek
      • 100% bezpečné online platby100% bezpečné online platby
      • 30 dní možnost vrátit zboží30 dní možnost vrátit zboží

      Yamaha introduces the DHR and CHR series - two new lines of active and passive sound reinforcement loudspeakers designed to bridge the gap between the entry-level DBR/CBR series and the high-end DZR/CZR range. Offering professional-quality sound at an affordable price, these speakers provide excellent performance without breaking your budget.

      The DHR Series includes three models in different sizes, making it versatile enough for any application. Choose from a 10" model for fixed installations and smaller spraces, a 12" model ideal for use as a floor monitor or a 15" version for front-of-house (FOH) applications. All models feature custom transducers powered by DSP-equipped Class D amplifiers, delivering exceptional sound quality and clarity. With features tailored for specific uses, the DHR Series provides the flexibility you need for a wide range of sound environments.

      Features

      • Features a plywood cabinet that delivers clear sound with minimal vibration
      • Plywood cabinet with a polyurea coating for a tough, scratch-resistant finish
      • Compact size despite the 15" LF driver that provides excellent low frequency response
      • Double-angled pole mounts offer both 0° and -7° downward tilt
      • Suspension points for use with eyebolts
      • Proprietary FIR-X™ tuning with FIR filtering and corrective EQ to minimize phase distortion

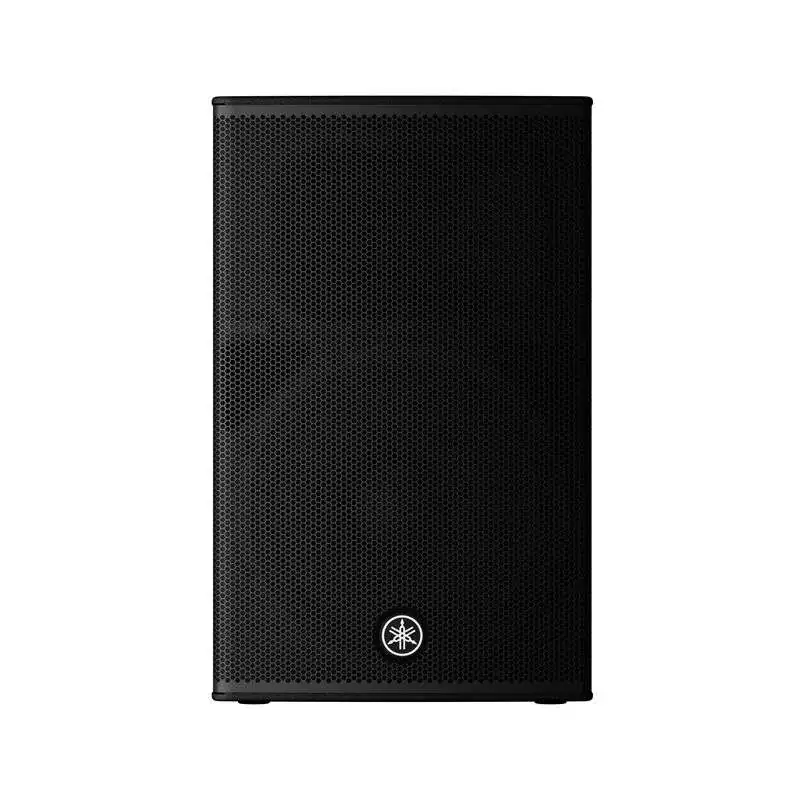

      Yamaha DHR15

      The DHR15 is a bi-amped, 2-way active loudspeaker featuring a 15" woofer and a 1.4" high-frequency driver — ideal as a main PA speaker. With a low-end frequency response down to 44 Hz, it delivers powerful bass even without a subwoofer, all while maintaining Yamaha's signature crystal-clear sound — even at concert-level volumes of up to 131 dB.

      Combining a 1000-watt Class D amplifier with high-performance DSP, the DHR15 offers professional-grade sound and reliability. Its robust plywood cabinet — borrowed from Yamaha's top-tier DZR series — ensures both premium acoustics and long-term durability. The built-in DSP includes two EQ presets for front-of-house or floor monitor use, while a switchable high-pass filter provides effective and intuitive bass management, whether in challenging acoustic environments or when paired with a subwoofer.



      Mixing console on board

      The DHR15 not only delivers the powerful performance of its Class D amplifier but also eliminates the need for additional gear at smaller events. Its integrated 2-channel mixer allows for the direct connection of two audio sources—making setup fast and simple.

      Input 1 features an XLR/TRS combo jack, perfect for directly connecting microphones without an external preamp. Input 2 offers a flexible combo jack for balanced connections and is ideal for line-level sources. It also includes RCA inputs for connecting stereo sources like media players or laptops.

      Both inputs can be mixed directly on the speaker, allowing you to handle everyday sound reinforcement tasks—such as small gigs, speeches, or background music—without any external mixer or processing equipment.

      Ready for the Road

      Yamaha, one of the world's leading manufacturers of professional sound reinforcement equipment for over fifty years understands the demands of life on the road. That's why the new DHR and CHR loudspeakers are engineered for maximum durability and road-readiness.

      Each cabinet is built from solid plywood and coated with an ultra-resistant polyurea finish, offering superior protection against wear, impact, and harsh touring conditions. Combined with rugged metal grilles, these speakers are built to perform reliably, even under tough handling.

      All models in the DHR/CHR series include high-quality speaker stand mounts, while the CHR15 and DHR15 also feature professional-grade flying points for flexible installation options in fixed or touring setups.

      Technical Specifications

      • Speaker type: 2-way, bi-amped powered speaker, bass reflex
      • Frequency range (-10dB): 44 Hz - 20 kHz
      • dispersion (H x V): 90° x 60
      • Crossover: 1.8 kHz: FIR-X Tuning™ (linear-phase FIR filter).
      • Maximum output level (measured peak, IEC noise @ 1m): 131 dB SPL
      • LF driver: 15" cone, 2.5" voice coil, ferrite magnet
      • HF driver: 1" compression diaphragm, 1.4" voice coil, ferrite magnet
      • Amplifier class: Class-D
      • Power handling: 1000 W (dynamic) / 465 W (continuous)
      • Cooling: fan cooled, 4 speeds
      • Power consumption: 74 W (1/8 power), 18 W (idle)
      • Power supply: 100 V, 100-120 V, 220-240 V, 50/60 Hz
      • A/D D/A converter: 24-bit 48 kHz sampling
      • Processors: HPF: OFF, 100 Hz, 120 Hz, 24 dB/oct; D-CONTOUR: FOH/MAIN, MONITOR, OFF.
      • Inputs: 2x XLR combo jack / 2x RCA (L/R)
      • Outputs: 1x XLR
      • Cabinet material: Plywood
      • Finish: Durable polyurea lacquer, black
      • Handle: 2x side
      • Rod base: 2x 35 mm (Bottom)
      • Bracing: 2x Top, 1x Rear, (Fits M10 x 30 - 50 mm eyebolts)
      • Dimensions (W x D x H): 432 x 405 x 692 mm
      • Weight: 24 kg
      Manufacturer information
      Yamaha Corporation
      Yamaha Corporation 10-1
      430-8650 Nakazawa-cho, Chuo-ku, Hamamatsu
      Japan EU economic operator
      Yamaha Music Europe GmbH
      Siemensstraße 22-34
      25462 Rellingen
      Germany
      quality.assurance@contact.europe.yamaha.com
      Yamaha
      PAH0022599-000

      Parametry

      Bluetooth
      No
      Signal Processing
      Active
      RJ45 Interface / Network
      No
      Manufacturer
      Yamaha
      Weight (kg)
      24
      Integrated Mixer
      Yes
      Width (mm)
      432
      Height (mm)
      692
      Depth (mm)
      405
      Typ
      Head
      Multi-Function Housing
      Yes
      Mic Input
      1
      Size of Woofer (Inches)
      15
      Size of Tweeter (Inches)
      1
      Peak output in W
      1000
      max. Peak SPL (dB)
      131
      Housing Material
      Wood
      Flange
      35mm
      Beam angle
      90°
      Frequency Response from (Hz)
      44
      Frequency Response to (Hz)
      20000
      DSP
      Yes
      Link
      Yes
      Input
      Combo Socket
      Output
      XLR
      WLAN
      No
      Battery operation
      No
      Wheels included
      No
      incl. Stand
      No
      incl. Cover
      No
      Airworthy
      Yes
      Crossover Network
      Yes
