Powerful - Flexible - Professional

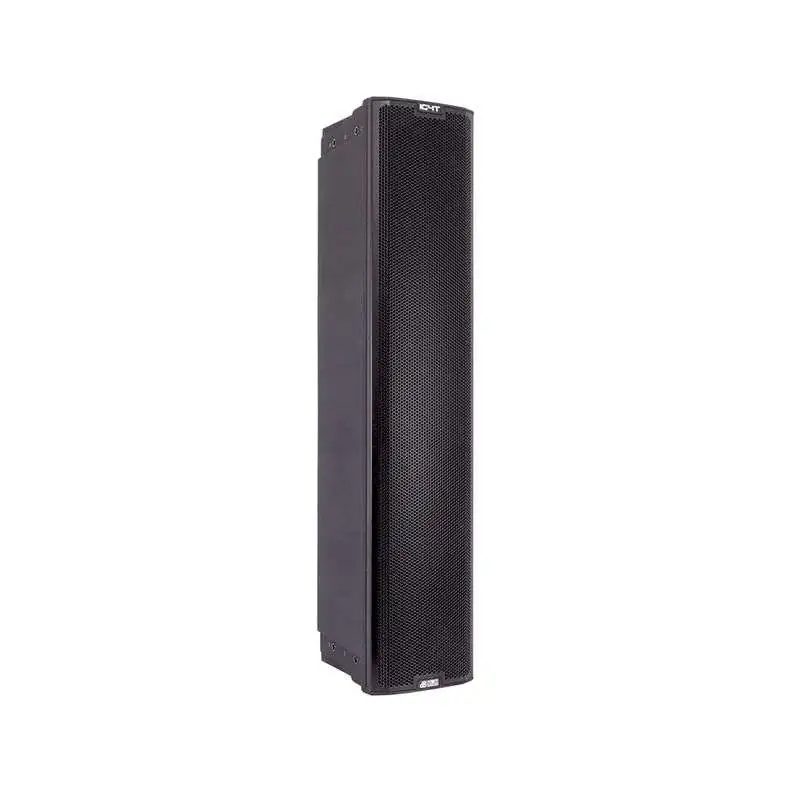

With the INGENIA Series, dB Technologies is offering an optimized, high-performing speaker system that possesses the acoustic characteristics as well the compact dimensions, ease of transport and user-friendliness, that are very interesting to a semi-professional clientele. The result is a modular active speaker system which offers maximum flexibility together with serious power.

With the high-performance digipro amplifier, the versatile functions of the 56 Bit DSP unit including digital sound direction steering, the comfortable interface panel with a high-quality, bright OLED display, the intelligent Element Position Detection and the flexible application possibilities due to its modular construction - the INGENIA Series from dB Technologies offers the ideal partner for professional audio solutions, as well as a multi-functioning, mobile speaker system for semi-professional uses which impresses with performance, maximum flexibility and professional sound characteristics.

Maximum Flexibility

The sleek INGENIA column speakers have multiple applications: whether if on a stand or on a 2.1 subwoofer system, if stacked and combined with a sister model as the ideal "plug&play" column system, or suspended in a rig with specially designed, optionally available brackets - the dB Technologies INGENIA System offers absolute freedom and flexibility. The real highlight: the integrated, intelligent DSP Technology is, via infra-red, capable of automatically adapting to the mode of operation. If for example, you combine two IG4T speakers into one column system or connect a subwoofer, the software recognizes the situation and automatically configures the system accordingly in respect to tweeter behavior and crossover frequency.

Optimal Tweeter Performance

The special horn concept of the Ingenia Series offers a vertically asymmetric dispersion, which ensures for the perfect tweeter performance, while offering a wide dispersion range. Additionally, stacked operation through the special Horn characteristics prevents any cancellation or phasing effects.

Features:

• Type: 2-Way Active Speakers
• LF: 4x 6.5", Neodym
• HF: 1.4", Neodym-Compression Driver, vertical asymmetry
• Output RMS: 900 W (1800 W Peak), Class-D
• Max SPL: 132 dB
• Frequency Response (- 10 dB): 74 to 20,000 Hz
• Frequency Response (- 6 dB): 88 to 19,200 Hz
• Dispersion (HxV): 110 x 90° (+ 15°/- 65°)
• User interface: OLED-Display + Knob with Switch
• EPD (Element Position Detection)
• Display Mirroring: Yes
• Controller: DSP 56-bit
• EQ Presets: Factory Preset + User Defined
• Limiter: Dual Active Peak, RMS, Thermal
• Input: 1 x Combo IN (XLR + Jack 6.3 mm)
• Output: 1 x XLR Link OUT
• USB Connection: mini USB
• Housing: Polypropylene PP, reinforced
• Flyable: Yes
• Handles: 1x Top, 1x Bottom
• Stand Flange: Standard 36 mm
• Dimensions (WxHxD): 19.5 x 95.6 x 27.1 cm
• Weight: 19.4 kg
