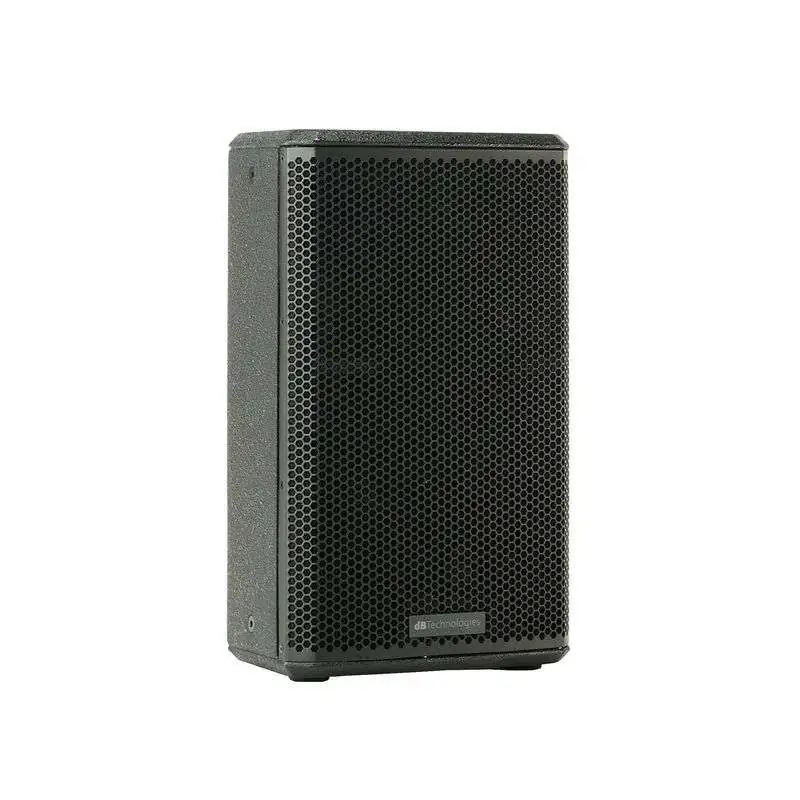

The dB LVX P10 is a 2-way passive loudspeaker with a 10" bass driver and an output of 600 watts. It is equipped with first-class components and enables the output of speech, live or background music in medium to large rooms with clear, detailed audio performance. This passive speaker produces a maximum sound pressure level of 125dB and offers a frequency range of 73 to 19,000Hz. A Speakon connection is available for input and output.

The robust plywood cabinet has a clean, easy-to-mount design and 12 mounting points with M8 threads to facilitate installation with special vertical (WB-LP10H or horizontal brackets (VB-LP810V)). The housing has an integrated handle at the rear and a 36 mm mounting plate.

The LVX P-Series is available in black or white.

Important information on cabling

When wiring amplifiers with loudspeakers, the type of loudspeaker plays a decisive role in the choice of cable required.

Passive speakers require a specific, two-pole speaker cable for connection to an amplifier. This cabling is necessary because the amplifier and the speaker are physically separated from each other in a passive setup. Depending on the connectivity of the amplifier and speaker, "speaker twist" or 6.3 mm jack plugs (speaker cable - not instrument cable) are usually used.
