Specifications:

• Connector side A: D-Sub male 25-pin
• Connector side B: 8x XLR male
• Conductor cross-section: 0.14 mm²
• AWG 26
• Conductor size: 18 x 0.10 mm
• Material: CU bare
• Conductor resistance: 127 Ohm/km
• Shielding: foil (AL/PT, 100 % coverage) + stranded wires
• Capacitance conductor-conductor: 52 pF/m
• Diameter: 9.5 mm

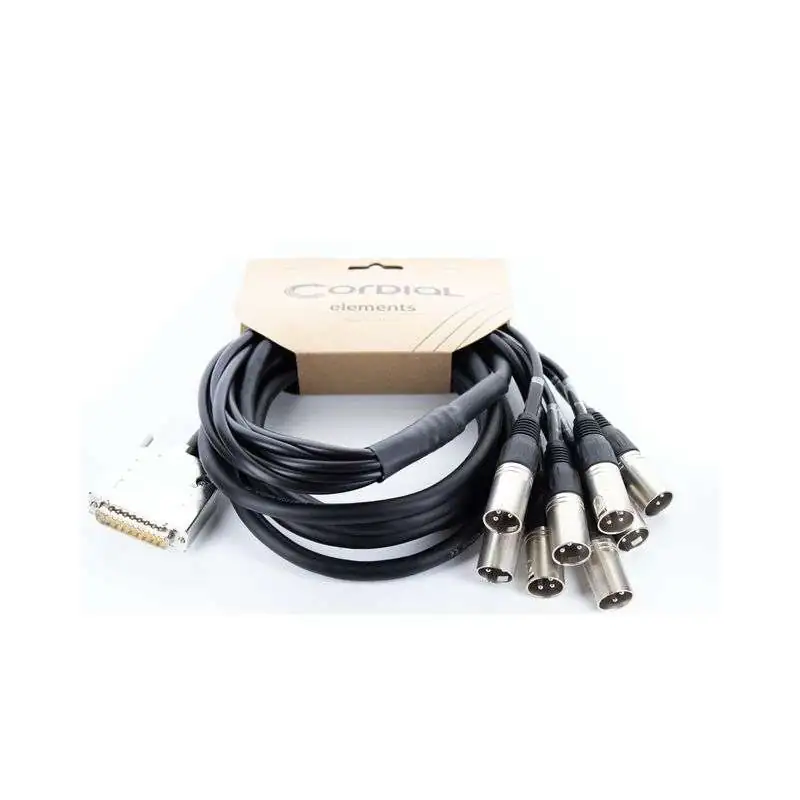

The Cordial EFD DMT interface cable is part of the new Cordial "elements" series. It can be used to connect 8 channels via XLR cable to a Tascam-equipped interface. It transmits the signals symmetrically. A conductor cross-section of 8x 0.14 mm² and a foil shield with a coverage of 100% as well as its nickel-plated contacts also ensure flawless and undistorted signal transmission. The robust connectors in combination with screwed-on bend protection and resistant PVC sheathing mean that the cable can also be used under tougher conditions. At the same time, the PVC sheathing compound, which is flexible at the same time, and the single strand construction (18 x 0.10 mm) ensure high flexibility and thus easy handling and stowability.

Cordial is a globally important cable manufacturer whose products are also relied on by many established artists.
