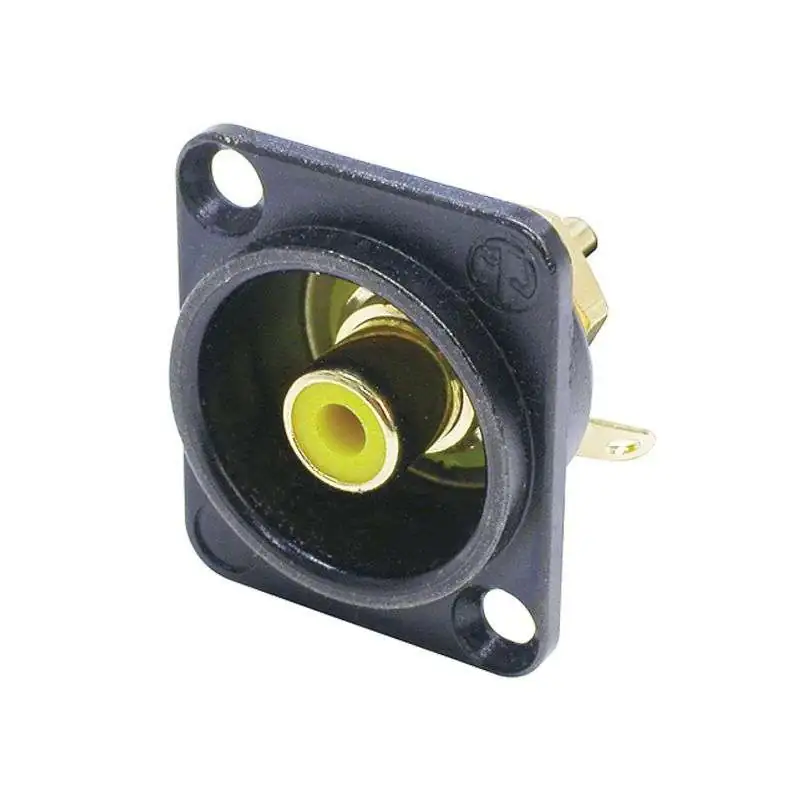

The Neutrik NF2D-B-4 RCA Mounting Socket is a yellow RCA mounting socket featuring gold plated contacts, a phono socket, D-shape housing, and is a solder version. This socket is precisely machined to Neutrik's demanding quality standards.

The main features of the Neutrik NF2D-B-4 RCA Mounting Socket include:

• Connection Type: RCA
• Gender: female
• Capacitance between contacts: ≤ 9 pF
• Contact resistance: <5G mΩ (inner)
• Dielectric strength: 0.5 kVdc
• Insulation resistance: < 5 GΩ
• Rated current per contact: 16 A
• Rated voltage: < 50 V
• Lifetime: > 2000 mating cycles
• Wiring: Solder contacts
• Mounting direction: front
• Chassis shape: D
• Contact plating: 5 µm Au over 5 µm Ni
• Contacts: Brass (CuZn39Pb3)
• Shell: Zinc diecast (ZnAl4Cu1)
• Flammability: UL 94 HB
• Standard compliance: IEC 601-14
• Protection class: IP 40
• Solderability: Complies with IEC 68-2-20
• Temperature range: -30 °C to +80 °C
