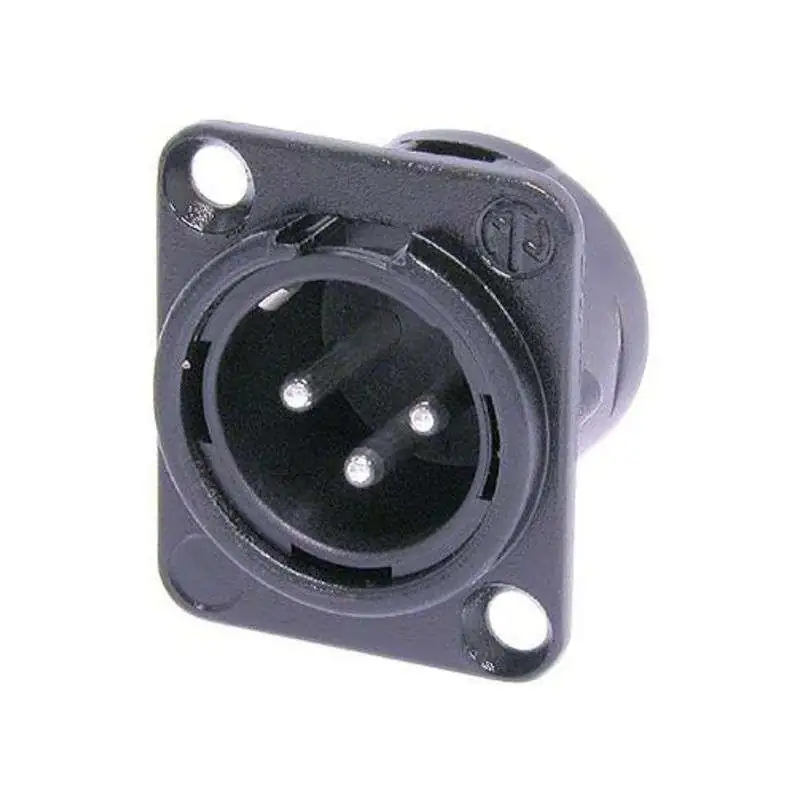

Neutrik NC3MD-L-BAG-1 Chassis Plug
3,91 €
VČETNĚ DANĚ
Receptacle connector, Plug type: XLR 3-pin male, Contacts: silver, Color: black.
Doprava zdarma na tisíce položek
100% bezpečné online platby
30 dní možnost vrátit zboží
Uniform D-metal housing for panel mounting
Neutrik NC3MD-L-BAG-1 is a three-pin XLR chassis connector with solder terminals. Thanks to its silver-plated contacts, it has excellent conductivity.
Accessories for Neutrik NC3MD-L-BAG-1 chassis connectors :
- Neutrik DBA-BL Blanking Plug
- Neutrik DSS labeling plate in different colors
- Neutrik MFD M3 mounting frame
- Neutrik NDM dummyPlug XLR for XLR chassis connectors
- Neutrik SCDM sealing flap
- NeutrikSCDP-0 seal D-shape in different colors
- Neutrik SCDR cover cap
- NeutrikSCDX sealing flap in different colors
- Neutrik SCM dust protection cap
- Neutrik SCCD-W sealing flap IP65 D-series
- Neutrik SCD-W sealing cap
- Neutrik CAS-DUMMY dummyPLUG Case
Specifications:
- Connection type: XLR
- Capacitance between contacts: ≤ 4 pF
- Contact resistance: ≤ 5 mΩ
- Dielectric strength: 1.5 kVdc
- Insulation resistance: > 10 GΩ (initial)
- Rated current per contact: 16 A
- Rated voltage: < 50 V
- Insertion force: ≤ 20 N
- Lifetime: > 1000 mating cycles
- Connection type: Solder contacts
- Locking: Latch lock
- Mounting direction: Front mounting
- Housing shape: D
- Contact coating: 2 µm Ag over 2 µm Ni
- contacts: Brass (CuZn35Pb2)
- Insert: Polyamide (PA 6.6 30 % GR)
- Locking element: Steel Ck67
- Housing: Zinc diecast (ZnAl4Cu1)
- Housing coating: Black chromium
- Approvals: UL
- Flammability: UL 94 HB
- Standards compatibility: IEC 61076-2-103
- Protection class: IP 40
- Solderability: Complies with IEC 68-2-20
- Temperature range: -30 °C to +80 °C
ACC0007936-000
Parametry
- Manufacturer
- Neutrik
- Socket Type
- XLR
- Male/Female
- Male
- To install
- Ja
- Angle
- No
- Pol
- 3
