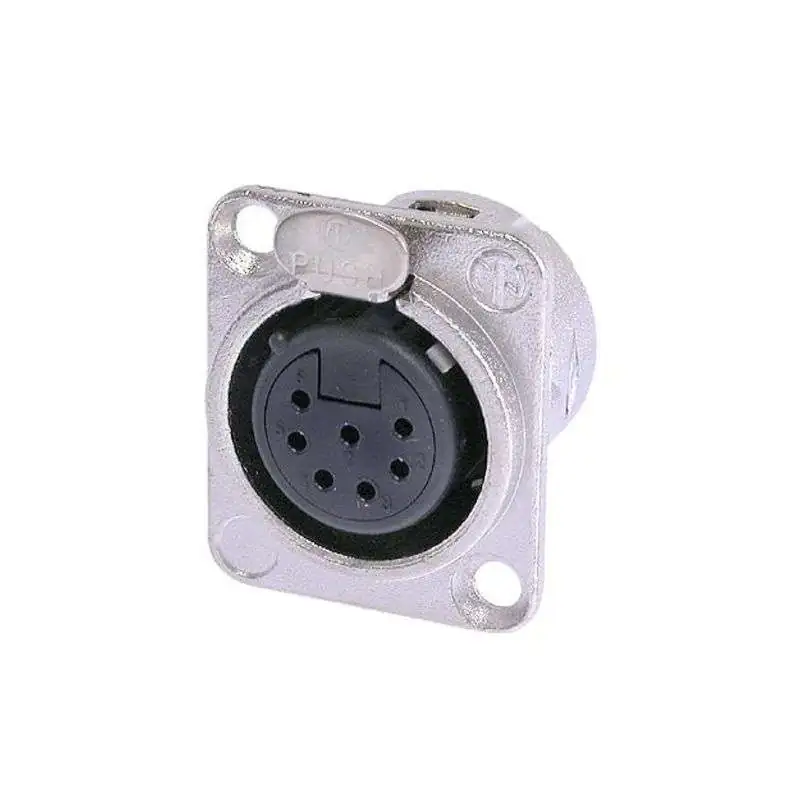

Neutrik NC7FD-L-1 Chassis Socket
13,94 €
VČETNĚ DANĚ
Plug type: female, panel jack, material: nickel-plated metal, contacts: silver-plated.
Doprava zdarma na tisíce položek
100% bezpečné online platby
30 dní možnost vrátit zboží
Female, 7-pin
Specifications:
- Capacitance between contacts: ≤ 9 pF
- Contact resistance: ≤ 5 mΩ
- Dielectric strength: 1.5 kVdc
- Insulation resistance: > 10 GΩ (initial).
- Rated current per contact: 5 A
- Rated voltage: < 50 V
- Insertion force: ≤ 20 N
- Insertion force: ≤ 20 N
- Service life: > 1000 mating cycles
- Conductor cross-section: max. 1.0 AWG
- Conductor cross section: max. 18 AWG
- Connection type: Solder contacts
- Locking: Latch lock
- Housing shape: D
- Contact coating: silver plated
- Approvals: UL
- Flammability: and 94 HB
- Standards compatibility: IEC 61076-2-103
- Protection class: IP 40
- Solderability: Complies with IEC 68-2-20
- Temperature range: -30 °C to +80 °C
Neutrik NC7FD-L-1 receptacle at a glance:
- Rugged D-metal housing
- Standard D-panel cutout 24 mm
- 3 - 7 pole versions with solder connections
The Neutrik NC7FD-L-1 chassis jack, housed in a standard D-metal casing with solder terminals, is an excellent choice for panel mounting. This 7-pin chassis jack features a robust nickel-plated metal housing that provides effective protection against RF interference. Its silver-plated contacts guarantee excellent conductivity. Designed for durability with high mating cycles, it is a reliable and long-lasting accessory for any application requiring this configuration.
A product made to the trusted high standards of Neutrik quality.
Of course, you will find matching accessories for the Neutrik NC7FD-L-1 chassis jack, designed to help you maintain flawless performance.
- Neutrik CAS-DUMMY dummyPLUG Case
- Neutrik DBA-BL dummy plug
- Neutrik DSS-0 labeling plate
- Neutrik MFD M3 mounting frame
- Neutrik NDF dummyPlug XLR for XLR mounting sockets
- Neutrik SCDF sealing flap
- Neutrik SCDP-0 seal D-shape
- Neutrik SCDR cover cap
- Neutrik SCDX sealing cap
- Neutrik SCF dust cap
- Neutrik SCCD-W sealing flap IP65 D-Series
Manufacturer information
Neutrik EMEA GmbH
Marie-Curie-Str.2
85221 Dachau
Germany
neutrik.emea.de@neutrikgroup.com
www.neutrik.com
08131 280890
Marie-Curie-Str.2
85221 Dachau
Germany
neutrik.emea.de@neutrikgroup.com
www.neutrik.com
08131 280890
ACC0004584-000
Parametry
- Socket Type
- XLR
- Male/Female
- Female
- To install
- Ja
- Angle
- No
- Pol
- 7
- Manufacturer
- Neutrik
