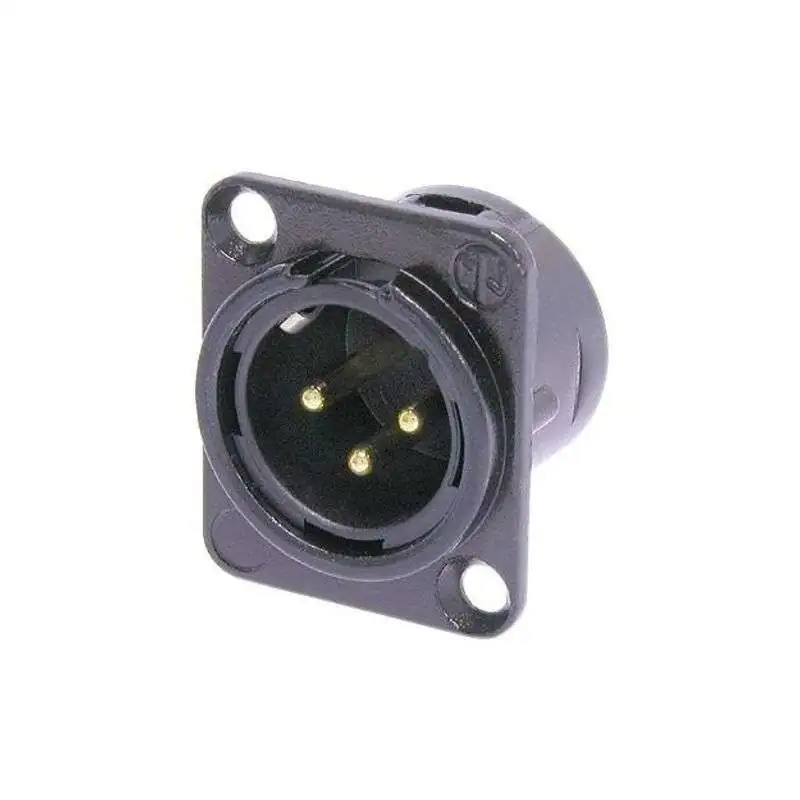

The Neutrik NC3MD-L-B-1 is a male XLR D-series chassis connector. A 3 pole male receptacle, solder cups, black metal housing and gold contacts. With a universal D-size metal body XLR panel mount series. UL recognized component.

The main features of the Neutrik NC3MD-L-B-1 include:

• Robust "D" metal shell
• Standardized D sized 24 mm panel cutout
• Solder cups on 3 - 7 pole version
• Connection Type: XLR
• Gender: male
• Capacitance between contacts: ≤ 4 pF
• Contact resistance: ≤ 5 mΩ (inner)
• Dielectric strength: 1.5 kVdc
• Insulation resistance: > 10 GΩ (initial)
• Rated current per contact: 16 A
• Rated voltage: < 50 V
• Insertion force: ≤ 20 N
• Withdrawal force: ≤ 20 N
• Lifetime: > 1000 mating cycles
• Wiring: Solder contacts
• Locking device: Latch lock
• Mounting direction: front
• Chassis shape: D
• Contact plating: 0.2 µm Au hard alloy over 2 µm Ni
• Contacts: Brass (CuZn35Pb2)
• Insert: Polyamide (PA 6.6 30 % GR)
• Locking element: Steel Ck67
• Shell: Zinc diecast (ZnAl4Cu1)
• Shell plating: Black chromium
• Approvals: UL
• Flammability: UL 94 HB
• Standard compliance: IEC 61076-2-103
• Protection class: IP 40
• Solderability: Complies with IEC 68-2-20
• Temperature range: -30 °C to +80 °C
