Firmware 1.10

The new firmware for the Tascam Model 12 allows up to 10 phrases per song to be marked and repeated at will (vamp playback). This makes it easier to rehearse these passages or to adapt the backing track to the live situation in a versatile way. In addition, the metronome tempo can now be changed with an audible click, the click can be adjusted in 3 volume levels and a 4-bar count-in has been integrated.

What else?

Firmware 1.11 also introduced a continuously adjustable output delay of 1 - 2000ms. What you need that for: Namely, to get a straightforward handle on the inevitable synchronisation problems between image and sound in a live application. Whether you are streaming or recording on a computer or using a separate video encoder, the Model 12 can help. The output delay can be switched to either the USB output, the hardware output or both.

Design

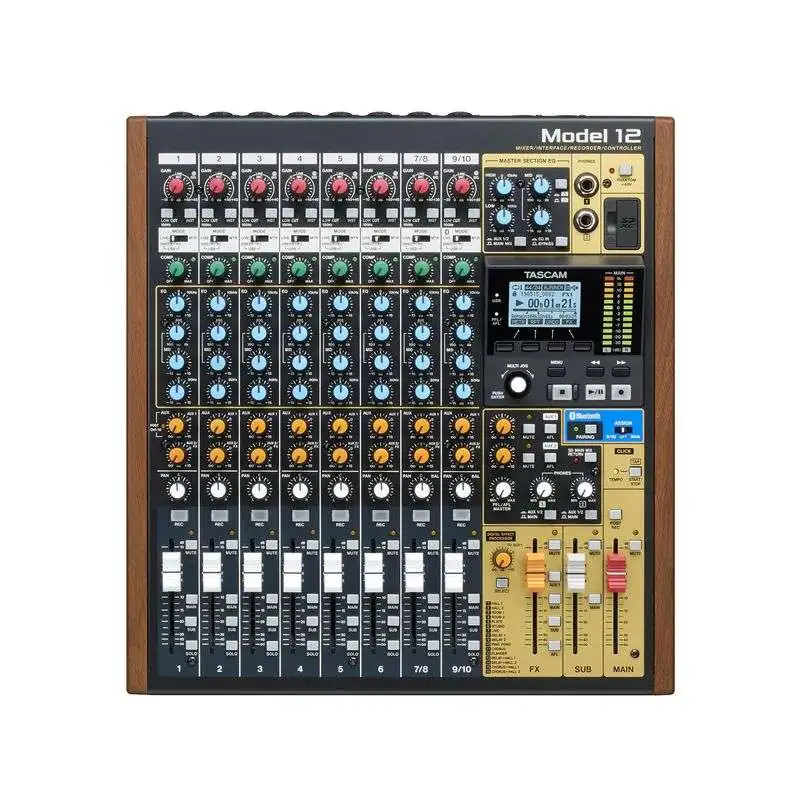

Whether you are a beginner or a professional - the design of the Tascam Model 12 is clear and intuitive and guarantees a short familiarisation phase. All controls are located on the top of the console for quick and easy access. 60 mm faders allow precise level adjustments, while the built-in EQs serve to "clean up" or refine the sound image. Even the input and output connectors can be conveniently reached from the top edge, so you don't have to leave your post when checking and wiring.

Recording made easy

Model 12 allows the use of SD cards, with which you can record 16 tracks simultaneously in 24-bit and 48 kHZ format. 8 of the available tracks also allow punch-ins and punch-outs. The 10 built-in, high-quality Tascam microphone preamps ensure the best possible, undistorted sound. But it's not just the recording that plays a major role: thanks to Tascam's recording technology, 12 tracks can be played back simultaneously from an SD card.

Tascam Model 12 Overview:

• 10-channel digital mixer with built-in 12-track recorder & USB audio interface.
• Firmware 1.10: Vamp output, 3 volume options for the metronome, 4-bar single counter

Mixer:

• 10 channel digital mixer, 12 track recorder and USB audio interface
• 10 analogue inputs
• per input 3-band EQ with tunable mids and analogue sound
• 8 Tascam Ultar-HDDA microphone preamps with switchable phantom power in 8 mono and two stereo channels
• 10 balanced line inputs (6 mono, two stereo)
• one multi-purpose stereo channel for input from mobile devices via Bluetooth, RCA jacks or a stereo mini jack
• loop-in circuits in input channels 1 and 2
• Channels 1 to 9/10 can be used for high-impedance instruments such as electric guitars/basses
• 2 aux outputs (monitor pre/post fader, effect post fader)
• 2 stereo outputs with own master faders (stereo sum, subgroup)
• 1-button compressor for channels 1 - 10
• Switchable low-cut filter @ 100Hz per channel
• switches for mute, routing, to stereo sum/subgroup & PFL in each input channel
• incl. Bluetooth receiver for wireless connection of playback sources
• Built-in effects processor
• 16 effect types
• Usable in all input channels, monitor paths, the subgroup & the stereo sum
• On/off switchable via optional footswitch (Tascam RC-1F)
• Space-saving 60 mm channel faders
• 12-segment LED level meters for the stereo sum
• balanced XLR outs for the stereo sum
• balanced jack outputs for subgroups, control room, monitor paths 1/2 and FX channel
• Headphone output with 80 mW output power per channel



Recorder

• Tascam multitrack recording module
• Recording medium: SD card (up to 128 GB, Class 10 or higher)
• Up to 12 tracks can be recorded without a computer
• Recording format: WAV, 44.1/48 kHz, 16/24 bit
• Playback format: WAV
• Overdub recording, punch-in/out
• Multitrack playback for extended live performances
• Illuminated playback/recording/stop buttons for better visibility in dark environments

Audio interface

• USB 2.0 audio interface for Windows and Mac
• Audio to PC: 12 channels
• Audio from PC: 10 channels, assignable to input channels
• Audio resolution: 44.1/48 kHz, 16/24 bit

Other features

• Intuitive, fast menu navigation via jog wheel
• Built-in power supply with detachable mains cable

Cover not included in delivery!
