5-band equalizer, bass enhancement and pre-shape

The heart of the Trace Elliot Transit B Bass Preamp is a five-band equalizer, which allows precise interventions in the character-forming frequency ranges and can be removed from the signal if necessary. The pre-shape filter, which delivers the legendary Trace Elliot sound by emphasizing bass and treble at 55 Hz, 2 kHz and 5 kHz and lowering the midrange by 400 Hz, complements the tone control. The Bass Enhance Switch can also be used to switch on a subharmonic generator, which also extracts deep bass from small amps.

Multiband compressor and overdrive

In addition, the Trace Elliot Transit B Bass Preamp is equipped with a multi-band compressor, which allows a sensitive tuning and natural reproduction of the bass sound due to the separate processing of bass and treble. The compressor can be switched before or after the tone control. The on-board overdrive also provides a rich grind in the sound when needed, while the clean signal can be continuously mixed in to maintain punch and dynamics thanks to the blend control.

Extensive connections

Last but not least, the Trace Elliot Transit B Bass Preamp is equipped with extensive connection peripherals, which simplify the use of the preamp on stage and in the recording studio. Balanced pre- and post-DI outputs allow direct sampling of the dry and processed signal. There is also an unbalanced line output and an instrument level output, while the Aux In Backing tracks can be played back. The headphone connection allows the use of the Trace Elliot Transit B for silent practice or monitoring of recordings.

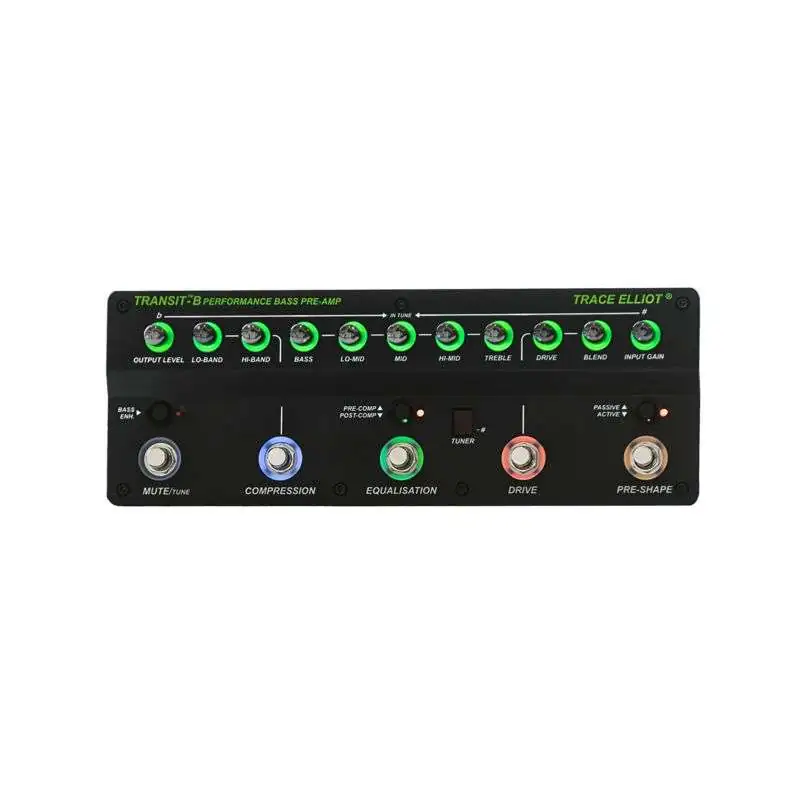

The Trace Elliot Transit B Bass Preamp at a glance:

• Preamplifier and multi-effects unit for electric basses
• Switchable input impedance for active and passive basses
• Drive effect with controls for drive and blend
• Multiband compressor with separate compression for bass and treble
• 5-band equalizer with bypass switch, switchable in front of or behind the compressor
• Pre-shape to emphasize bass and treble
• Bass Enhance to activate the Subharmonic Generator
• Integrated tuner
• Balanced XLR Pre DI Out
• Balanced XLR Post DI Out
• Instrument level and line level outputs
• dry output
• Aux In and headphone jack
• Including carrying bag and power supply unit
