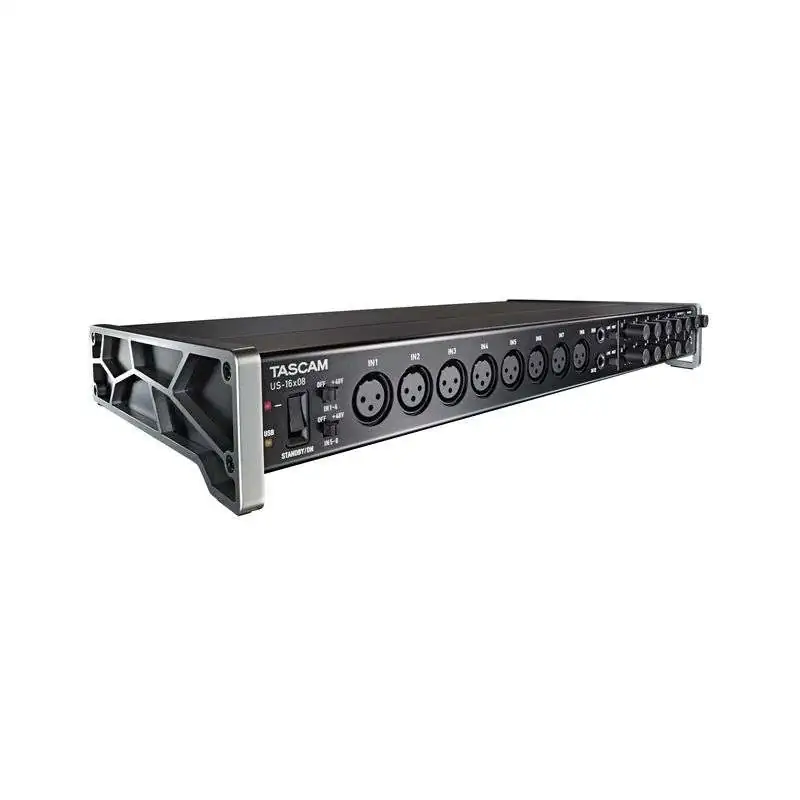

Tascam US-16x08 audio interface
      Tascam US-16x08 audio interface
      Tascam US-16x08 audio interface

      Tascam US-16x08 audio interface

      288,15 €
      VČETNĚ DANĚ
      Na skladě
      The Tascam US-16x08 is a 16-In/8-Out USB Audio Interface. The TASCAM US-16x08 captures 16 mic and line inputs to your computer ...
      Množství :
      Napište svou recenzi

      EU3234363840424446USXX5XSSMLXLXXLXXLArm Length6161,56262,56363,56464,5Bust Circumference8084889296101106111Waist Girth6165697377828792Hip Circumference87919599103108113118

      • Doprava zdarma na tisíce položekDoprava zdarma na tisíce položek
      • 100% bezpečné online platby100% bezpečné online platby
      • 30 dní možnost vrátit zboží30 dní možnost vrátit zboží

      The Tascam US-16x08 is a 16-In/8-Out USB Audio Interface. The TASCAM US-16x08 captures 16 mic and line inputs to your computer with clear sound quality and advanced features to manage big sessions. Eight Ultra-HDDA microphone preamps deliver the cleanest and quietest operation in their class while delivering up to 57dB of gain. An additional eight line inputs are provided, two of them switchable to instrument level for direct guitar or bass recording. Eight balanced line outputs are also available, two with a level control on the front panel for monitoring.

      Built into the US-16x08 is a DSP Mixer for low-latency digital mixing. Each channel has four-band EQ, compression, and a reverb send for polished-sounding monitor mixes. In addition to interface mode, the US-16x08 can be used stand alone as a standalone mic preamp. Mac and Windows drivers are provided, as well as USB Class Compliant 2.0 drivers for tablets like Apple's iPad. MIDI inputs and outputs are also available on the rear panel. Whether using the ergonomically-designed angled desktop stand or mounting with the included rack ears, the US-16x08 includes enough I/O for almost any music recording application.

      The main features of the Tascam US-16x08 include:

      • Sampling frequency: 44.1k/48k/88.2k/96kHz
      • Quantization bit rate: 16/24bit
      • Analog audio inputs
      • MIC IN(IN 1-8)
        • Connector: XLR-3-31(1:GND, 2:HOT, 3:COLD), BALANCED
        • Input impedance: 2.4k ohms
        • Nominal input level
          • GAIN:MAX: -68dBu (0.0003Vrms)
          • GAIN:MIN: -12dBu (0.195Vrms)
        • Maximum input level: +8dBu (1.947Vrms)
        • Gain: 56dB
      • INST IN (IN 9-10)
        • Connector: 6.3mm(1/4") TS-jack(T:HOT, S:GND), UNBALANCED (When set to "INST" at LINE/INST switch)
        • Input impedance: 1M ohms or more
        • Nominal input level
          • GAIN:MAX: -57dBV (0.0014Vrms)
          • GAIN:MIN: -12dBV (0.251Vrms)
        • Maximum input level: +8dBV (0.2512Vrms)
        • Gain: 45dB
      • LINE IN (IN 9-10)
        • Connector: 6.3mm(1/4") TRS-jack(T:HOT, R:COLD, S:GND), BALANCED (When set to "LINE" at LINE/INST switch)
        • Input impedance: 10k ohms
        • Nominal input level
          • GAIN:MAX: -41dBu (0.0069Vrms)
          • GAIN:MIN: +4dBu (1.228Vrms)
        • Maximum input level: +24dBu (12.182Vrms)
        • Gain: 45dB
      • LINE IN (IN 11-16)
        • Connector: 6.3mm(1/4") TS-jack(T:HOT, S:GND), UNBALANCED (When set to "-10dBV" at LEVEL switch)
        • Input impedance: 10k ohms or more
        • Nominal input level: -10dBV (0.3162Vrms)
        • Maximum input level: +10dBV (3.162Vrms)
      • LINE IN (IN 11-16)
        • Connector: 6.3mm(1/4") TRS-jack(T:HOT, R:COLD, S:GND), BALANCED (When set to "+4dBu" at LEVEL switch)
        • Input impedance: 10k ohms
        • Nominal input level: +4dBu (1.228Vrms)
        • Maximum input level: +24dBu (12.182Vrms)
        • Analogue audio outputs
      • LINE OUT (LINE OUT 1-8)
        • Connector: 6.3mm(1/4") TRS-jack(T:HOT, R:COLD, S:GND), BALANCED
        • Output impedance: 100ohms
        • Nominal output level: +4dBu (1.228Vrms)
        • Maximum output level: +24dBu (12.177Vrms)
      • PHONES
        • Connector: 6.3mm(1/4") stereo phone jack
        • Maximum output level: 70mW+70mW or more (THD+N 0.1% or less, 32ohms loaded)
      • MIDI IN / OUT
        • Connector: Din 5-pin
        • Format: Standard MIDI format
      • USB
        • Connector: USB B type 4-pin
        • Format: USB2.0 HIGH SPEED mass storage class
      • Power: Dedicated AC adapter (GPE248-120200-Z, included)
      • Power consumption: 12W
      • Dimensions: 445 W ×59 H ×219 D mm
      • Weight: 2.8kg / 6.11lb
      • Operating temperature: 5 to 35°C
      • Accessories: Rack mount adapter, USB cable, User's manual, warranty card, dedicated AC adapter (GPE248-120200-Z)
      Tascam
      PCM0013348-000

      Parametry

      Number of Microphone Inputs
      8
      Line ins
      8
      Line outs
      8
      Headphone inputs
      1
      S/PDIF coaxial In
      0
      S/PDIF coaxial Out
      0
      S/PDIF optical In
      0
      S/PDIF optical Out
      0
      AES/EBU
      0
      Network connections
      none
      Wordclock In
      No
      Wordclock Out
      No
      Maximum sampling rate in kHz
      96
      Maximum sampling rate in bit
      24
      Phantom Power
      Yes
      Manufacturer
      Tascam
      MIDI Interface
      Yes
      incl. Power Adapter
      Yes
      Weight (kg)
      3.76
      Width (mm)
      445
      Height (mm)
      59
      Depth (mm)
      219
      Operating system
      Win / Mac OS
      Application Area
      Home sector
      Number of channels
      16x8
      DI In
      0
      Bus Powered
      No
      USB Version
      USB 2.0
      Other interfaces
      0
