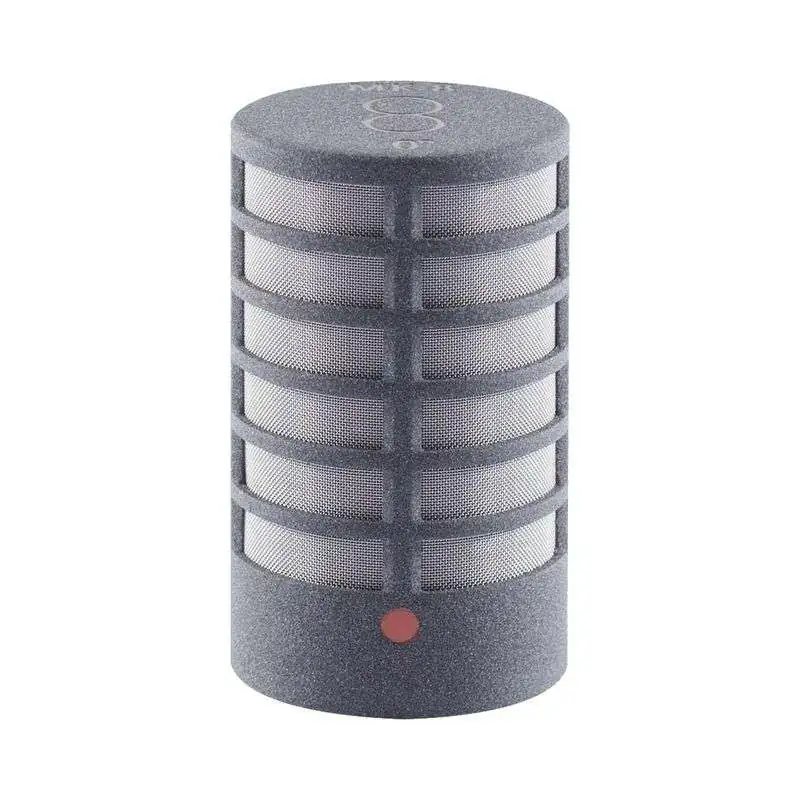

The Schoeps MK 8 Microphone Capsule features a pure pressure-gradient transducer, a figure-8 polar pattern, a 40Hz-16kHz frequency range, and a maximum sound pressure level of 134dB. This capsule is a true dipole (bidirectional) transducer, operating with a single diaphragm. Its main axis is at a right angle to the capsule, and marked at 0° and 180° with a red and a black dot respectively. The figure-8 pattern offers a near-ideal consistency across the frequency range.

The main features of the Schoeps MK 8 Microphone Capsule include:

• Polar Pattern: Figure-8
• Transducer: Pure Pressure-Gradient
• Frequency Range: 40Hz-16kHz
• Sensitivity: 10mV/Pa
• Equivalent Noise Level (A-Weighted): 18dB-A
• Equivalent Noise Level (CCIR): 26dB
• Signal-to-Noise Ratio (A-Weighted): 76dB-A
• Max. SPL @ 0.5% THD: 134dB
• Length: 34mm
• Diameter: 20mm
• Weight: 18g
• Surface Finish: Matte Grey
