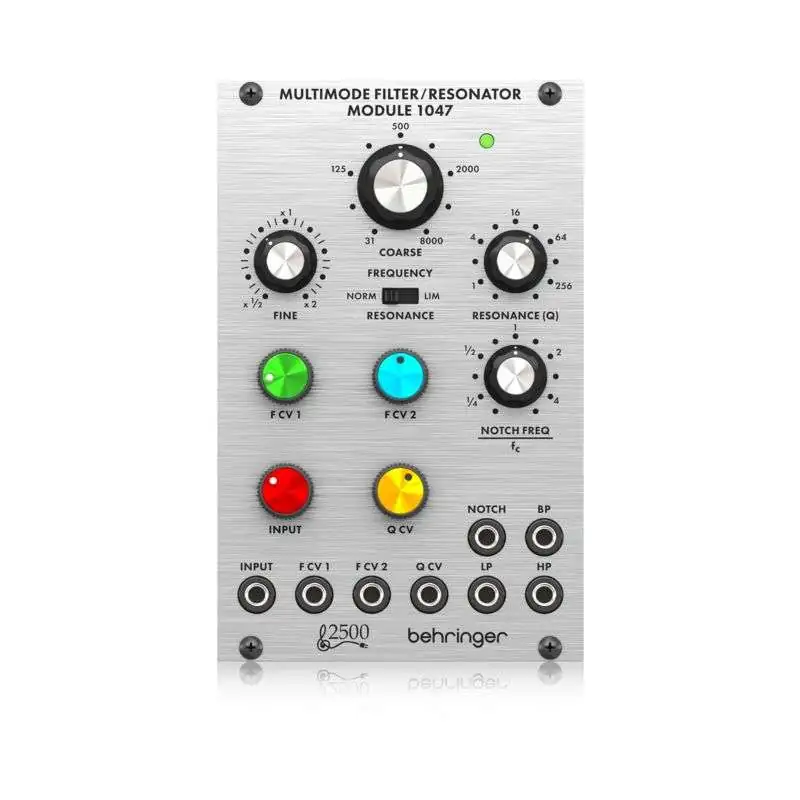

Behringer 1047 Multimode Filter / Resonator
      Behringer 1047 Multimode Filter / Resonator
      Behringer 1047 Multimode Filter / Resonator
      Behringer 1047 Multimode Filter / Resonator

      Behringer 1047 Multimode Filter / Resonator

      40,80 €
      VČETNĚ DANĚ
      Na skladě
      Eurorack clone of the multimode filter 1047 from the ARP 2500 analog synthesizer.
      Množství :
      Napište svou recenzi

      EU3234363840424446USXX5XSSMLXLXXLXXLArm Length6161,56262,56363,56464,5Bust Circumference8084889296101106111Waist Girth6165697377828792Hip Circumference87919599103108113118

      • Doprava zdarma na tisíce položekDoprava zdarma na tisíce položek
      • 100% bezpečné online platby100% bezpečné online platby
      • 30 dní možnost vrátit zboží30 dní možnost vrátit zboží

      Multimode Filter

      For some, the ARP 2500 might be the holy grail of synthesizer history. Definitely rare, extremely impressive in its dimensions, sonically overwhelming and then as now a unique specimen. Built from 1970 to 1981, this dinosaur of analog synthesizers looks very tidy despite its modularity implemented throughout, thanks to the router system used. Behringer has reduced the modules to the compact Eurorack format and meticulously kept to the historical originals both functionally and sonically.

      The Multimode Filter / Resonator 1047 from Behringer is an analog 12dB multimode filter with the four parallel outputs lowpass, bandpass, highpass and notch. The well gripping and round sounding filter goes decently into self-oscillation and then reaches the grainy resonance typical for ARP. By means of a fine control the cutoff can be tuned in detail (ideal for FM). For the notch output there is a separate control to tune the notch frequency. For cutoff there are two adjustable CV inputs, resonance can be modulated separately with CV.

      The Behringer Multimode Filter / Resonator 1047 :

      • Eurorack module
      • 12dB multimode filter
      • 1 audio input
      • Outputs for lowpass, bandpass, highpass & notch
      • 3 CV inputs for cutoff and resonance
      • Fine control for cutoff
      • Resonance limiter
      • Variable notch frequency
      • 16 TE width / 43 mm depth
      • +12 V: 55 mA / -12V: 45 mA
      Behringer
      SYN0007719-000

      Parametry

      Manufacturer
      Behringer
      Depth (mm)
      43
      TE / HP
      16
      + 12 V (mA)
      55
      - 12 V (mA)
      45
      Lowpass
      Yes
      Bandpass
      Yes
      Highpass
      Yes
      Multi-mode
      Yes
      Notch
      Yes
