Technical data

• Frequency response: 50 Hz - 20000 Hz
• Max SPL @ 1m : 107 dB
• Horizontal dispersion angle : 110
• Vertical coverage angle : 70
• Dome Tweeter : 1.0" neo, 1.0" v.c
• Woofer : 5.0"
• Input terminal: bal/unbal
• Input connectors: XLR, Jack, RCA
• Input sensitivity: -2 dBu
• Crossover frequency: 2000Hz
• Limiter: Soft Limiter
• Total power: 200 W peak, 100 W RMS
• HF range: 50 W peak, 25 W RMS
• Low frequencies: 150 W peak, 75 W RMS
• Connected Units: XLR, Jack, RCA
• Cabinet Material: MDF
• Colour: Black
• Height: 300 mm
• Width: 185 mm
• Depth: 243 mm
• Weight: 4.3 kg

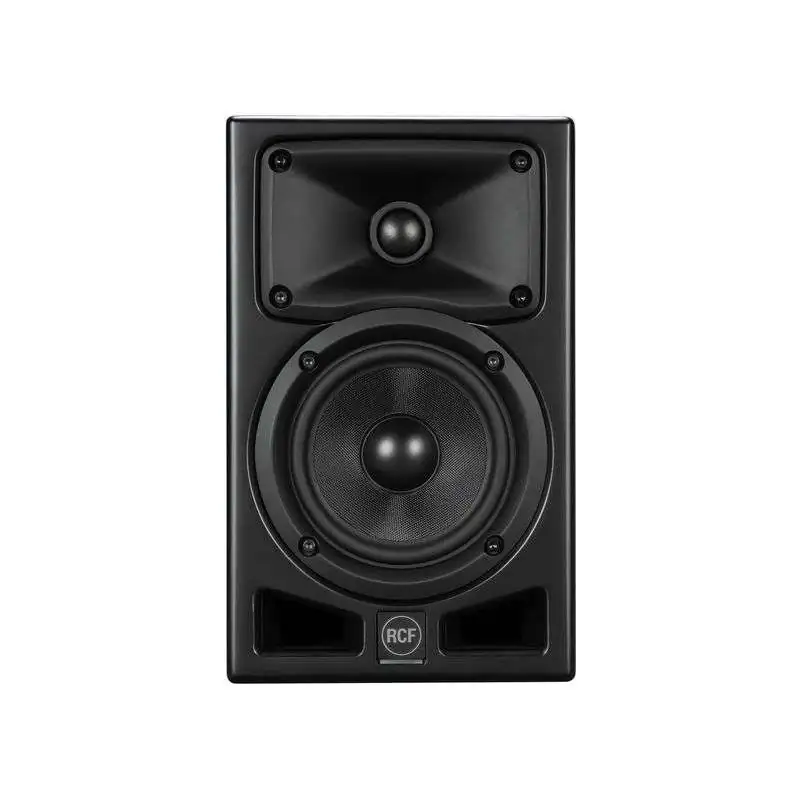

The professional 2-way active monitor RCF AYRA PRO 5 is absolutely linear and perfectly suited for reference purposes of any kind, whether in small or large studios or as a monitoring monitor. The completely neutral output allows the sound engineer or producer precise monitoring during recording and mixing. The specially developed DSP of the AYRA PRO studio monitors, in conjunction with the exclusive RCF FiRPHASE signal processing and carefully selected components, ensures an ideal frequency response from 50 Hz - 20000 Hz and an optimal dynamic response, making the monitors the first in their class to offer a 0 degree phase response.

POWERFUL BASS DRIVER WITH COMPOSITE CONE

The AYRA PRO -inch bass driver is specifically designed for powerful and accurate bass response. The voice coil winding length provides extended low-frequency output. The fibreglass composite cone provides optimum stiffness, damping and durability.

POWERFUL POWER AMPLIFIERS

All AYRA PRO models are equipped with two low-distortion TRUE ACTIVE Class D power amplifiers. Concentrate on creative work and your music - the integrated limiters will prevent extreme overdriving at any volume and thus damage to the transducers.

A NEW PERSPECTIVE ON LINEARITY

RCF's AYRA PRO studio monitors are designed using the proprietary and groundbreaking FiRPHASE FIR filter technology, which ensures transparent sound, absolute clarity and perfect stereo imaging. The FiRPHASE algorithm optimizes dynamic processing, amplitude and phase response while minimizing system latency to enable real-time monitoring.

RCF AYRA PRO 5 Features

• Frequency response 50 Hz - 20 kHz
• 0 degree phase response
• 75 W + 25 W Class-D power amplifiers
• 5-inch fiberglass composite woofer
• 1-inch dome tweeter with ferrofluid cooling
• RCF Precision Waveguide
• Digital Signal Processing with FiRPHASE
• Low-distortion front bass reflex ports
