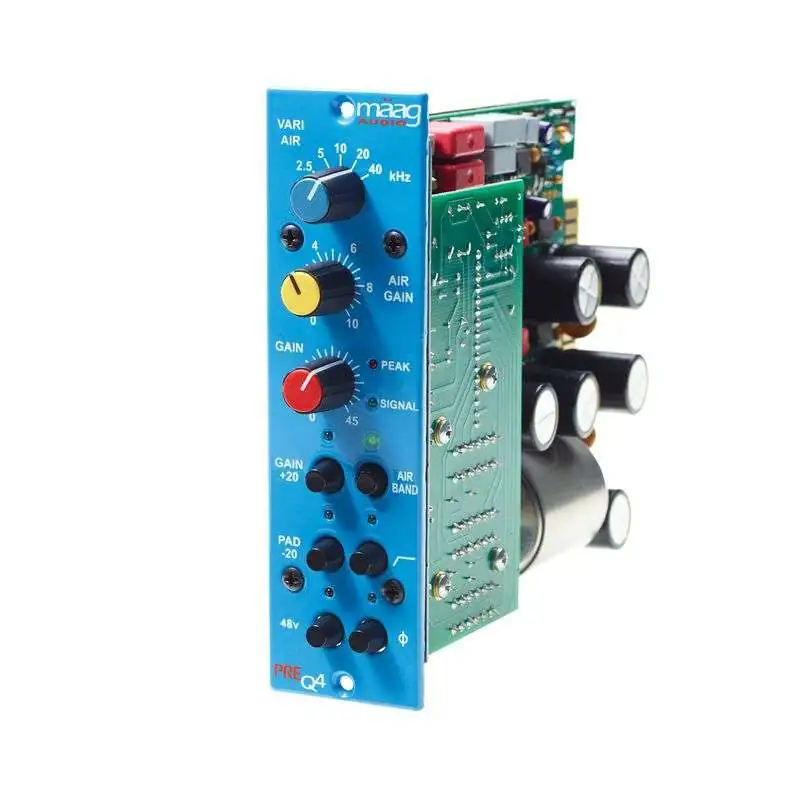

Maag Audio PREQ4 500
730,15 €
VČETNĚ DANĚ
Mono microphone preamp with variable air band, compatible with API 500-6B lunchbox & 500VPR racks
Doprava zdarma na tisíce položek
100% bezpečné online platby
30 dní možnost vrátit zboží
High quality pre-amp module with Air Band
Maag Audio PREQ4 Overview:
- 1-channel microphone preamplifier in API 500 format.
- Incredibly clear resolution with natural treble presence
- Up to +65dB clean gain and therefore also perfectly suited for ribbon and dynamic large diaphragm microphones
- Switchable semi-parametric air-band shelf EQ with peaks at 2.5kHz, 5kHz, 10kHz, 20kHz, and 40kHz (max. +12dB)
- LED peak indicator
- -20dB pad switch
- Low-cut switch
- Switchable phase rotation
- +48V phantom power
- Compatible with API 500-6B lunchbox & 500VPR racks
Technical data:
- Maximum preamplification: +65dB
- Frequency response: 10Hz - 75kHz (@ -3dB)
- Input impedance (XLR): Mic 150Ohm / 1.61kOhm, balanced
- Output impedance: 50Ohm, active balanced
- Inherent noise: 124 dBu
- Headroom: +27 dBu
- THD + Noise: < 0.007%
Maag Audio PREQ4 Video
REC0011779-000
Parametry
- Phantom Power
- Yes
- Power Supply
- External Frame Required
- Number of channels
- 1
- Highpass filter
- Yes
- Amplifier principle
- Transistor
- Format
- Module
- Max. Gain in db
- 65
- THD+N in %
- 0.01
- Transformer balanced
- In & Output
- Digital converter
- No
- Input Impedance (Ohm)
- 1610
- Additional functions
- Equalizer, Phase reversal, Pad
- Equivalent Noise (dB)
- -128
- Manufacturer
- Maag Audio
