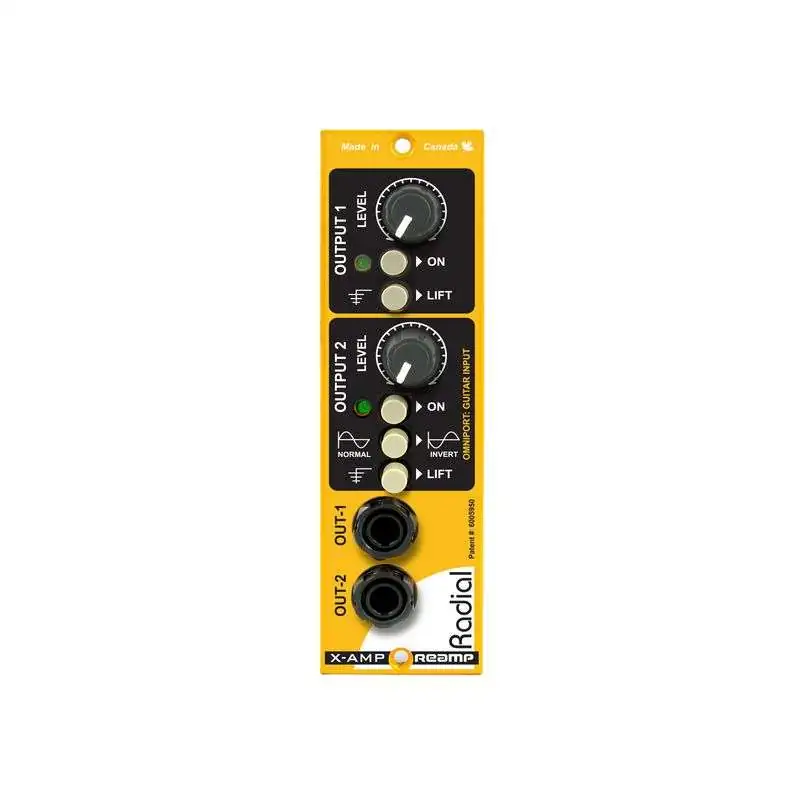

Radial X-AMP 500
311,10 €
VČETNĚ DANĚ
Reamping module in 500 format. 2 outputs with volume control, phase rotary switch, ground lift.
Doprava zdarma na tisíce položek
100% bezpečné online platby
30 dní možnost vrátit zboží
Professional helper for ramping
- Output 1 level control for adjusting the volume of amp 1 directly from the control room
- On/Off switch for Output 1 to mute the signal
- Ground lift switch for Output 1 to avoid ground loops
- Output 2 level control for volume adjustment for amp 2
- On/Off switch for Output 2 to mute the signal
- 180° phase switch for Output 2 for phase rotation or creative use of effects
- Ground lift switch for Output 2 also for hum suppression
- Two 6.35 mm jack outputs (OUT-1 and OUT-2) for simultaneous control of two amplifiers
- both outputs are transformer-isolated and Class-A buffered for long cable runs
- Omniport input (only with Workhorse) can be used as a Hi-Z guitar input
- Omniport can also be used as an ABY circuit for simultaneous playing via two amps
- Power supply via 500-series rack, current consumption: 40 mA at ±16 VDC
Reamping without compromise
The Radial X-Amp 500 is a high-quality reamping module in 500 format. Reamping allows a performance to be recorded neutrally and the sound to be shaped in the mixing process. The X-Amp 500 offers two separately controllable outputs that can be used to control two amps simultaneously. Thanks to its transformer-isolated, Class-A buffered outputs, hum loops and signal loss are reliably prevented, even with long cable runs. Ground lift switches make it easy to eliminate potential ground problems.
Precise control in the studio
The output levels for both amps can be set independently of each other and muted if required - ideal for sound comparisons or the targeted use of individual amplifiers in the mix. The second output also has a 180° phase switch to correct any phase cancellations between two amps or to generate creative sound variations.
Technically mature for studio use
With a linear frequency response from 20 Hz to 20 kHz (adapted for guitar signals) and low overall distortion (THD+N ' 0.002 %), the X-Amp 500 meets even the highest sonic demands. It fits into any standard 500 enclosure and draws its power directly from the rack - without the need for additional space or external power supplies.
Integration with Radial Workhorse
In combination with the Radial Workhorse or the Workhorse Cube, the X-Amp 500 becomes even more versatile: the module can also be used as a direct guitar input via the Omniport at the rear - ideal for recording and simultaneously distributing the signal to two amps. In this way, the X-Amp functions like a compact ABY box with professional signal processing.
Technical data:
Audio characteristics
- Circuit type: Class A, discrete design, transformer-coupled
- Frequency response: 20 Hz - 20 kHz (adapted for guitar signals, -5 dB at 20 kHz with 100 kΩ load)
- Total harmonic distortion (THD): ' 0.002 % @ 0 dBu (20 Hz - 20 kHz)
- Intermodulation distortion: ' 0.04 % @ 0 dBu input
- Signal-to-noise ratio: -114 dB below 0 dBu
- Maximum input level: +26 dBu
- Voltage gain:
- XLR to XLR: 0 dB ± 0.5 dB
- Omniport to XLR: -3 dB ± 0.5 dB
- XLR to 6.35 mm jack: -0.6 dB ± 0.5 dB
Impedances
- Input impedance (XLR): 1.2 kΩ
- Output impedance (XLR): 600 Ω
Connections
- Inputs: XLR
- Outputs: XLR, 6.35 mm jack (unbalanced, instrument level)
- OmniPort: 6.35 mm jack, Hi-Z guitar input (can only be used with Workhorse)
Power consumption
- Power consumption: 40 mA @ ±16 VDC
General information
- Format: Standard 500 rack size
- Shipping weight: approx. 0.7 kg (1.5 lbs)
- Environment: For dry rooms only, temperature range 5 °C to 40 °C
- Warranty: 3 years, transferable (Radial standard warranty)
Application examples of the Radial X-Amp 500
Manufacturer information
Face BV
Hoek 76 Unit 301
2850 Boom
Belgium
info@face-be.eu
www.face-be.eu
+32 3 844 67 97
Hoek 76 Unit 301
2850 Boom
Belgium
info@face-be.eu
www.face-be.eu
+32 3 844 67 97
REC0014841-000
Parametry
- Rack Installation Possible
- Yes
- Manufacturer
- Radial
- Number of channels
- 2
- Format
- Module
- Transformer balanced
- Output only
- GroundLift
- Yes
- Operation
- Active
- Signal type
- Hi-Z
- Level control
- Yes
- PAD
- No
