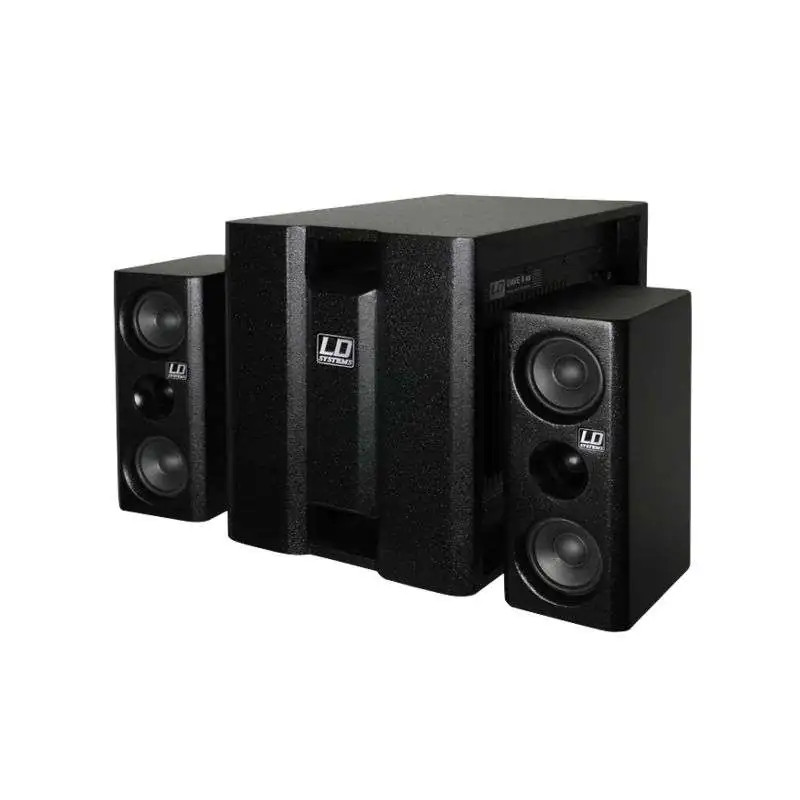

The LD Systems DAVE8XS is a portable multimedia system equipped of an 8" band pass subwoofer (150 W RMS) and two 4" satellites (2 x 100 W).

It was designed for all kinds of multimedia applications such as home recording, studio monitoring, PC speaker, small sized public facilities (such as bars/pubs) etc. The A/B class amplification module integrated in the subwoofer delivers a high output and powers both sub and satellites.

Features:

• Subwoofer: 1x 8" Custom Made
• Satellites: LF: 2x 4" Custom Made, HF: 1" Custom Made
• Amplification: Class A / B
• Dispersion: 60° x 60°
• Power output (RMS): subwoofer: 150 W, satellites: 2 x 100 W
• Frequency range: 45 Hz - 19 kHz SPL (1 W / 1 m): 96 dB
• Max SPL: 117 db
• Protection: short circuit, over-current, limiter
• Controls: volume, sub level, 180° phase reverse, on / off switch
• Indicators: power, protect
• Input: XLR, RCA Phono
• Output: SPKn
• Cooling system: heatsink
• Power supply: transformer
• Cabinet material: subwoofer 15 mm MDF, satellites 12 mm MDF
• Cabinet surface: painting
• Dimensions (WxHxD): 352 x 430 x 434 mm (subwoofer), 144 x 350 x 170 mm (satellites)
• Weight: 27 kg
