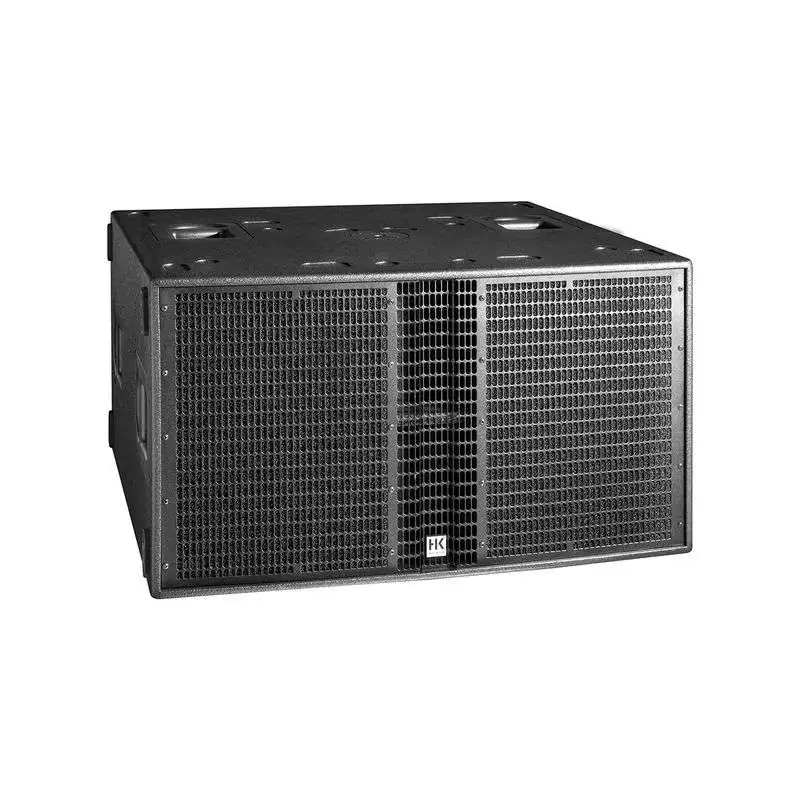

HK Audio Linear Sub 4000 passive subwoofer
1 698,38 €
VČETNĚ DANĚ
18″ double vented bandpass subwoofer with a load capacity of 1200 watts RMS & 135 dB SPL in a birch multiplex enclosure.
Doprava zdarma na tisíce položek
100% bezpečné online platby
30 dní možnost vrátit zboží
Passive subwoofer with 18 inch
- Double ventilated
- Power handling 1200 watts RMS
- 135 dB SPL
- Low frequency response from 30 to 100 Hertz
- Compatible with all LINEAR 5 full-range and mid/high models
- Birch multiplex cabinet
HK Audio Linear Sub 4000 at a glance:
The HK Audio Linear Sub 4000 is a powerful 18″ dual vented bandpass subwoofer. It is compatible with all LINEAR 5 full-range and mid/high models and impresses with a powerful low-frequency response from 30 to 100 Hertz. The Bass is the recommended complement to the LINEAR 5 LTS long-throw powerhouse.
As a sublow extension to the existing LINEAR SUB 2000, it delivers powerful low bass with optional frequency separation. Filter presets for Lab.gruppen IPD and PLM 12K44 controllers are available.
Technical data
- Rated power RMS: 1200 W
- Program power handling: 2400 W
- Frequency response +/-3 dB: 39 Hz - X-Over
- Frequency response -10 dB: 31 Hz - X-Over
- Characteristic sound pressure level 1 W @ 1 m: 106 dB Halfspace
- Max. SPL @ 10% THD: 135 dB Halfspace
- Max. SPL Peak @ 10% THD: 137 dB Halfspace
- Electrical impedance: 4 Ohm
- Loudspeaker: 1x 18", 4" voice coil with Advanced-Ventilated Voice-Coil-Gap
- Crossover frequency passive: 100 Hz, active separation with controller amp (crossover frequency optionally lower when using sublow)
- Connectors: 2 x Speakon NL4, pin assignment, switchable between 1+/1- and 2+/2-
- High stand flange: 2x M20
- Handles: 8x MultiGrip
- Cabinet: birch multiplex
- Cabinet finish: acrylic lacquer, black
- Front grille: 2 mm metal grille with black acoustic foam
- Dimensions (WxHxD): 91 x 51 x 81 cm
- Weight: 57.1 kg
Manufacturer information
STAMER Musikanlagen
Tritschlerstraße 3
66606 St. Wendel
Germany
info@musicandsales.com
Tritschlerstraße 3
66606 St. Wendel
Germany
info@musicandsales.com
PAH0022628-000
Parametry
- Signal Processing
- Passive
- Manufacturer
- Hk Audio
- Weight (kg)
- 57.1
- Width (mm)
- 910
- Height (mm)
- 510
- Depth (mm)
- 810
- Typ
- Sub
- Size of Woofer (Inches)
- 18
- max. Peak SPL (dB)
- 135
- Housing Material
- Wood
- Flange
- M20
- Input
- Speaker Twist
- incl. Stand
- No
- incl. Cover
- No
- Airworthy
- No
- Impedance (Ohm)
- 4
