• 10" bass reflex subwoofer with DSP and 900 W RMS output
• Flexibly expandable with the BOB-4 satellites for 2.1, 4.1 and 8.1 operation
• DSP-controlled Class D amplifier (300 W + 2 x 300 W)
• Integrated Bluetooth audio streaming for wireless music enjoyment
• 4 EQ presets with status indicators
• Signal limiter and crossover
• Signal inputs via combo sockets (XLR/jack) and RCA
• XLR parallel outputs for connecting additional BOB systems or active speakers
• Volume can be set separately for subwoofer and satellites L/R
• Stereo mono switching
• Phase inversion switch
• Fault, limit, signal and power display
• Integrated protection circuits: Soft start, short circuit, limiter, overvoltage, overheating
• Two M20 metal flanges for mounting the satellites
• MDF housing with hard-wearing textured paint and metal grille
• Integrated carrying handles and low weight for easy transportation
• Stackable due to recesses for horizontal installation
• Delivery includes 2 speaker cables
• For mobile live and DJ applications and installation in bars, stores, conference rooms and home cinemas
• Control: Bluetooth
• DSP: Digital signal processor

Compact 10" active subwoofer for mobile setups and fixed installations

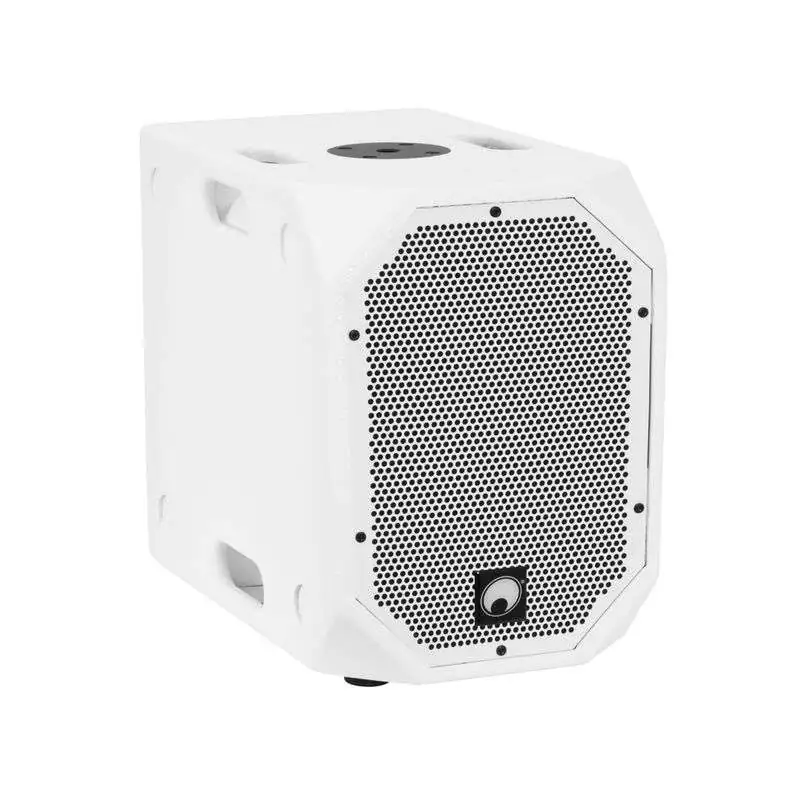

The Omnitronic BOB-10A white is an active 10" subwoofer with DSP and Bluetooth for the BOB series. The subwoofer is particularly suitable for mobile live and DJ applications or installations in bars, stores, conference rooms and home cinemas.

The active subwoofer has a DSP-controlled Class-D amplifier with an output of 300 watts + 2x 300 watts. It offers a frequency range of 45-250 Hz with a maximum sound pressure level of 125 dB. Wireless music enjoyment is possible thanks to the integrated Bluetooth audio streaming.

The signal inputs are via XLR/jack and RCA, plus XLR parallel outputs for connecting additional BOB systems or active speakers. Further features include a 4 EQ preset, signal limiter and crossover, stereo mono switching and a phase reverse switch.

The Omnitronic BOB-10A has an MDF housing with a hard-wearing textured finish and a metal grille to protect it from dirt and damage. The integrated carrying handles and low weight make it easy to transport. The enclosure has two M20 metal flanges for mounting the satellites.

The subwoofer is versatile and can be expanded with the BOB-4 satellites for 2.1, 4.1 and 8.1 operation.

Technical specifications

• Power supply: 115/230 V AC, 50/60 Hz
• Total connected load: 1060 W
• Power connection: Power supply IEC (M) built-in version power connection cable with earthing contact (supplied)
• Woofer: (10") approx. 25 cm
• Number of woofers: 1 piece
• Frequency range: 45 - 250 Hz
• Sensitivity: 100 dB
• Control: Bluetooth
• Color: White
• Weight: 17.00 kg

Bass

• Material: MDF (medium density fiberboard)
• Width: 30 cm
• Height: 43 cm
• Depth: 47 cm
• Amplifier power: LF 300 W RMS + HF 2 x 300 W RMS
• LF loudspeaker: 25 cm (10" ) with 50 mm voice coil
• Maximum sound pressure: 125 dB
• Signal connection: Combination XLR/6.3 mm jack L/R and RCA L/R
• Parallel output: XLR L/R
• Satellites: Speaker L/R
