Neutrik NBB75DFG Specifications:

• Impedance: 75 Ω
• Signal Type: HD, SDI, Video, AES/EBU, Composit, YUV, RGB, RGBH, RGBHV
• Volume resistance: ≤ 3 mΩ (inner), ≤ 2 mΩ (outer)
• > 1000 mating cycles
• Locking: bayonet locking
• Mounting direction: Front mounting
• Contacs: Brass (CuZn39Pb3), 0,2 µm AuCo (Center contact)
• Temperature range: -30 °C to +85 °C

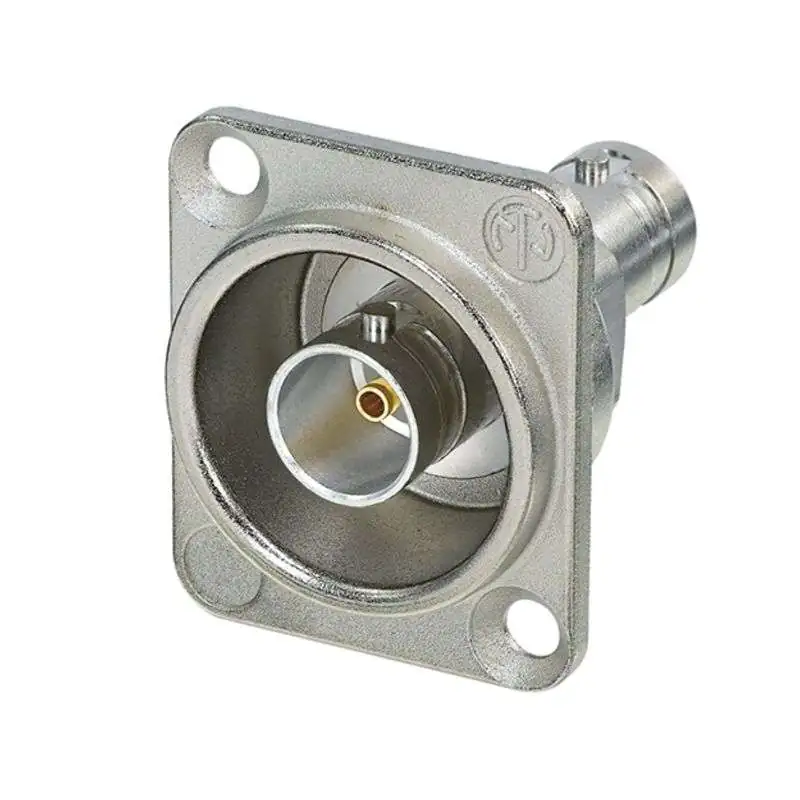

BNC Panel Connector

The Neutrik NBB75DFG BNC chassis connector is suitabel for serial and digital (HD) video signals and has excellent return loss values.

Long-term robust

It is also characterised by durability and resistance, for its milled brass body guarantees a long-term robust, non-wearing connection and its gold-plated center contact is corrosion-resistant. The recessed socket within the standard D-shape housing provides protection against damage and its bayonet locking system ensures a secure connection in the event of vibrations.

The option of colour coding allows for uncomplicated handling.

Quality

Neutrik ensures its outstanding quality through skilled employees, modern facilities, standardised processes, high-quality materials and careful inspection. Neutrik products always impress with excellent quality and performance.
