Feature:

• high output level
• substitute noise level 7 dB-A
• universally applicable
• new large diaphragm capsule
• perfect circuit design
• transformerless
• compact and inexpensive

Possible applications are:

• Vocals
• voiceovers
• radio plays
• as a support microphone for recordings of guitars, keyboard, percussion, wind and string instruments

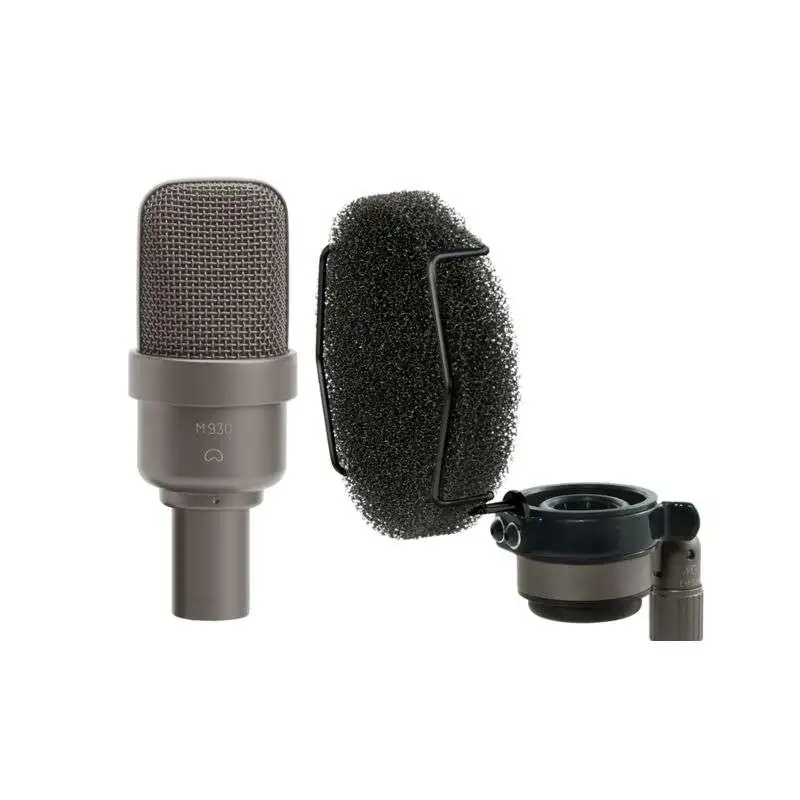

Scope of delivery:

• 1x M 930 dark bronze

• 1x elastic support EH 93 P
• 1x pop filter P 110.20
• 1x wooden case

Highest demands

The M 930 studio microphone combines modern large-diaphragm capsule technology with the latest semiconductor circuitry. It is designed for professional and semi-professional users who place the highest demands on their equipment.

What can I use it for?

The microphone is particularly suitable for universal use in broadcasting and recording studios, as well as in the demanding home recording sector due to its affordable price. Possible applications are: Vocals, voiceover positions, radio plays and as a support microphone for recordings of guitars, keyboard, percussion, wind and string instruments.

Sensitive and at the same time enormously level stable

The new circuit design of the impedance transducer enables the detailed transmission of low sound levels as well as the distortion-free reproduction of very high sound pressures due to the extended dynamic range.

Additional technical data:

• acoustic mode of operation: Pressure gradient receiver

• nominal impedance: 100Ohm
• Equivalent noise level (according to CCIR 468-4): 13dB
• Equivalent noise level (according to DIN EN 60268-4): 7dB-A
• Noise level distance CCIR-weighted (related to 1Pa at 1kHz): 81dB
• Noise level distance A-weighted (referenced to 1Pa at 1kHz): 87dB
• maximum output level at R = 1kOhm: 17dBu
• maximum output level at R = 10kOhm: 18dBu
• dynamic range: 135dB
• current consumption: 3,6mA
