• Large diaphragm condenser microphone
• One of the most compact large diaphragm condenser microphones - light and easy to position

• Very natural and transparent sound

• Frequency response free of coloration

• Excellent transient response

• With fixed supercardioid polar pattern

• PE-diaphragm

• Built-in transistor amplifier


Additional technical data:

• Acoustic mode of operation: Pressure gradient receiver

• Nominal impedance: 100Ohm

• Equivalent noise level (according to CCIR 468-4): 12dB

• Equivalent noise level (according to DIN EN 60268-4): 6dB-A

• Noise level distance CCIR-weighted (related to 1Pa at 1kHz): 82dB

• Noise level distance A-weighted (referenced to 1Pa at 1kHz): 88dB

• Limiting sound pressure level at 0.5% distortion: 141dB

• Maximum output level at R = 1kOhm: 17dBu

• Maximum output level at R = 10kOhm: 18dBu

• Dynamic range: 135dB

• Current consumption: 3,6mA

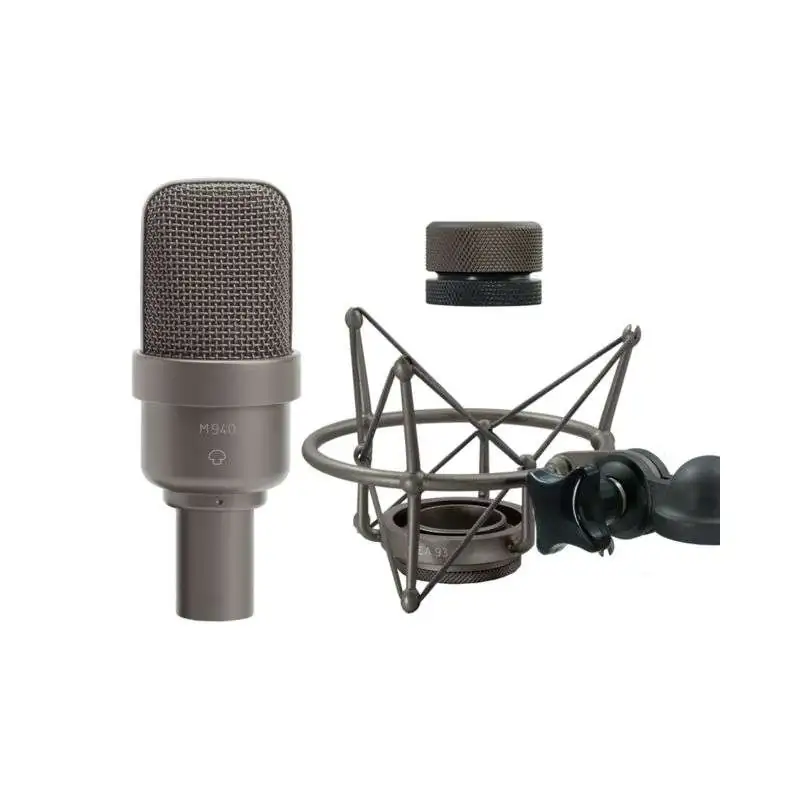

Scope of delivery:

• 1x M 940 dark bronze
• 1x elastic suspension EA 93 (spider)
• 1x adapter A 93
• 1x wooden case

Highest demands on your equipment

The Microtech Gefell M 940 combines modern large-diaphragm capsule technology with the latest semiconductor circuitry. It is designed for professional and semi-professional users who place the highest demands on their equipment.

What do I use it for?

The microphone is particularly suitable for universal use in broadcasting and recording studios, as well as in the demanding home recording sector due to its affordable price. Possible applications are: Vocals, announcer positions, radio plays and as a support microphone for recordings of guitars, keyboard, percussion, wind and string instruments.

Wide dynamic range

Due to the extended dynamic range, the innovative circuit design of the impedance transformer enables the detailed transmission of low sound levels as well as the distortion-free reproduction of very high sound pressures.
