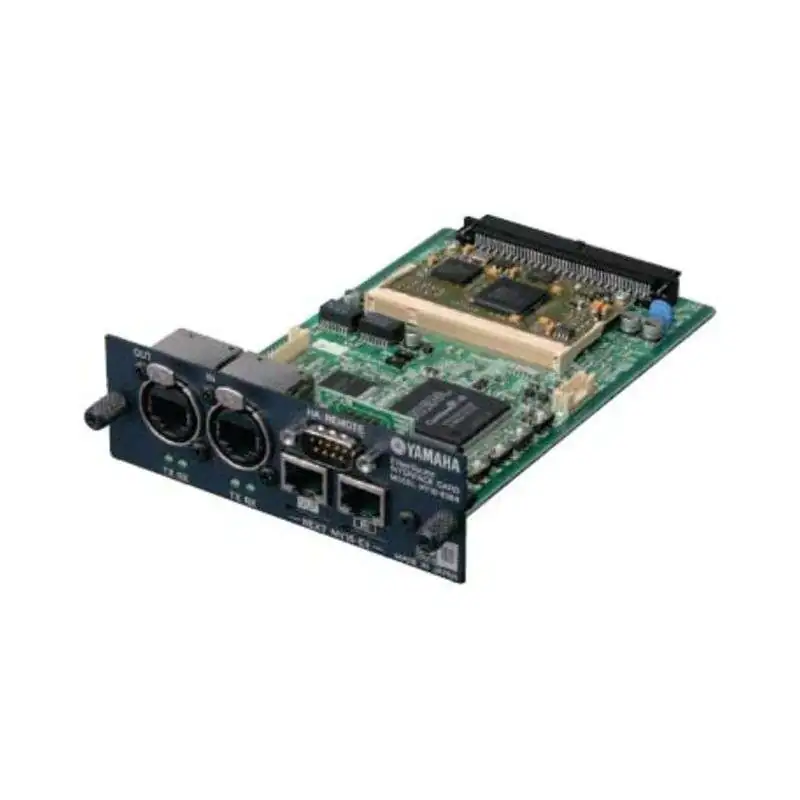

The Yamaha MY16 ES 64 is a 16-Channel EtherSound Network I/O Card. Mini-YGDAI cards make it easy to add I/O in a wide variety of audio and network formats to Yamaha digital mixing consoles, processors, and power amps that are equipped with compatible card slots. Mini-YGDAI cards can give your system the most up-to-date capabilities for any application.

The main features of the Yamaha MY16 ES 64 include:

• 24bit resolution,16-in/16-out EtherSound (ES100) interface (8-in/8-out at 96kHz)
• Expandable to up to 64-in/64-out with MY16-EX expansion cards
• 2x etherCON CAT5 connectors for EtherSound I/O, 1x D-sub 9 pin connector for RS232-C, 2x RJ-45 connectors for MY16-EX connection
• Remote setup, patching and monitoring by AVS Monitor
• Channel Count: 16IN / 16OUT
• Format: EtherSound
• Resolution: 24 bit
• Connector: 2x EtherCon (for EtherSound); 2x RJ-45 (for MY16-EX); D-sub 9-pin (for HA remote)
