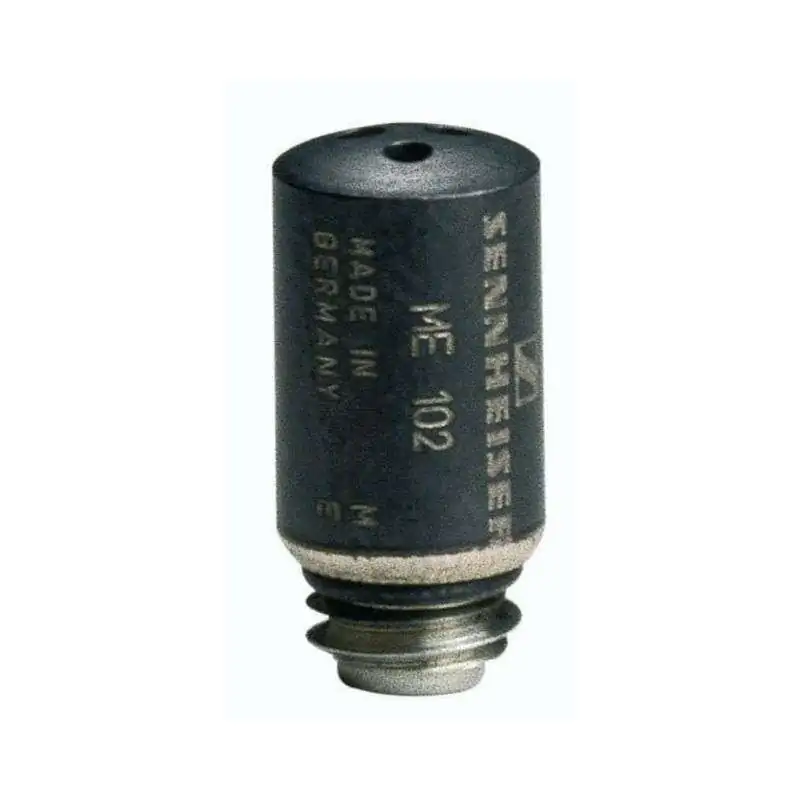

The Sennheiser ME 102 ANT Omni-Directional Microphone Capsule fulfils professional demands for sound quality and rugged handling, and is suitable for all areas of live work where a small and unobtrusive microphone is needed for vocal and speech applications.

The main features of the Sennheiser ME 102 ANT Omni-Directional Microphone Capsule include:

• Excellent speech clarity
• Minimal inherent self-noise
• Omni-directional or cardioid microphone capsules, can be quickly interchanged
• Optionally available with right-angled plug (copper wire cable, extremely insensitive to handling noise) or with straight plug (steel wire cable, very resistant to tearing)
• Dimensions: d 6 x 12 mm
• Pick-up pattern: omni-directional
• Sensitivity in free field, no load (1kHz): 10 mV/Pa +- 2,5 dB
• Nominal impedance: 1000 Ω
• Min. terminating impedance: 4700 Ω
• Equivalent noise level: 21 dB
• Current consumption: ca. 250 µA
• Weight w/o cable: 1 g
• Frequency response (microphone): 40.....20000 Hz
• Equivalent noise level weighted as per CCIR 468-3: 33 dB
• Maximum sound pressure level (passiv): 127 dB (K = 1%)
