Built-in 3-channel mixer

Each TS4 has a built-in 3-channel mixer with two mic/line input channels and a dedicated Bluetooth channel. The mic/line channels feature XLR/TRS combo jacks and can be used with microphones, instruments, and line-level signals without requiring additional Hardware or adjustments. Just plug the microphone into the rear panel and you're ready to go.

DSP modes for the best sound in any application

The TS4 Series' three preset "Speaker Use" modes let you optimize the speaker for any application, so you always get great sound at the touch of a button. For even more control over your sound, you can configure a custom EQ in the Alto app and control the settings remotely from any listening position. You can even save your favorite Custom EQ setting directly to the TS4 for easy recall when you need it.

Easy Bluetooth Streaming and Speaker Pairing

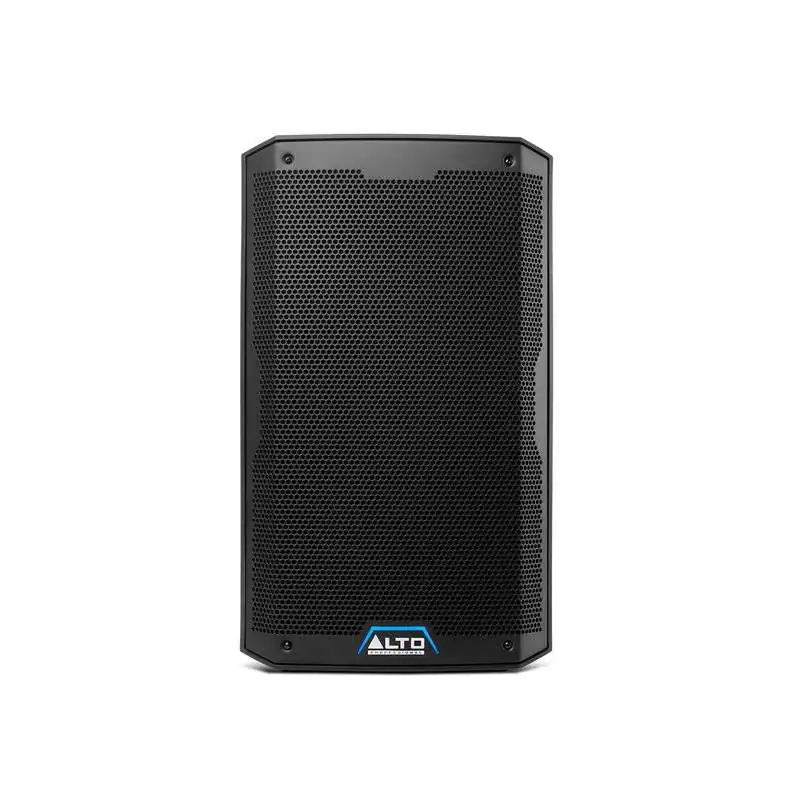

The Alto TS410 is an ideal high-power streaming solution. With built-in Bluetooth connectivity, you can easily pair your laptop, phone or tablet and enjoy music with the best sound in no time. With the True Wireless Stereo feature, you can stream Bluetooth audio signals in perfect stereo to two TS4 speakers without additional cables.

Technical data

• Output power: 2000W
• Driver low frequency range: 10.0" driver, 2.0" (50 mm) high temperature voice coil, 1 x 650 W RMS @ 2 Ω..
• Driver high frequency range: 1.0" output ceramic driver with 1.4" (35 mm) coil, 1 x 350 W @ 4 Ω.
• Crossover frequency: 2 kHz
• Maximum sound pressure level: 130 dB (peak), 127 dB (continuous) (dB-SPL @ 1 m).
• Frequency response: 57 Hz - 20 kHz (+/- 3 dB)
• Frequency response: 48 Hz - 20 kHz (-10 dB)
• Horn coverage: 90° horizontal x 60° vertical (nominal)
• Connectors: (2) XLR+1/4" (6.35 mm) TRS combo inputs (balanced), (1) XLR output (link), (1) IEC power cord input
• Line input impedance: 10 KΩ balanced, 20 KΩ unbalanced, Mic: 1.2K
• Line gain/volume control range: -∞ to 0 dB, +4 dBu nominal, +10 dBu for max. output
• Mic/Inst. gain/volume control range: -∞ to +50 dB

• USB charging port: 5V 2.1A
• Controls: Power switch, (2) gain controls (1 per input), (2) mic/line switches, Bluetooth volume control, pairing button, stereo link button, sub size button, speaker use button
• Indicators: (1) input channel signal/limit/clip LED (green = channel 1/2 signal), (yellow = channel 1/2 limiter), (red = Ch1/2 output overdriven), (1) Bluetooth LED (blue), (1) link LED (orange), (4) DSP presets LED (green), (3) HPF LED (green)
• Power connector: IEC
• Voltage: 100-120V, 50/60Hz; 220-240V, 50-60Hz
• Consumption: 900W
• Fuse: 100-120V T15AL AC250V; 220-240V T6.3AL AC250V
• Protection: Electronic clip, thermal protection and overload protection of the converter
• Housing: injection-molded housing and perforated metal grid
• Mounting options: Standard 36mm pole jack, on-the-fly application with integral M10 suspension points, or in a wedge monitor position
• Dimensions (height x width x depth): 536 x 320 x 317 mm
• Weight: 11.8 kg
