      15" Active Coaxial PA Speaker

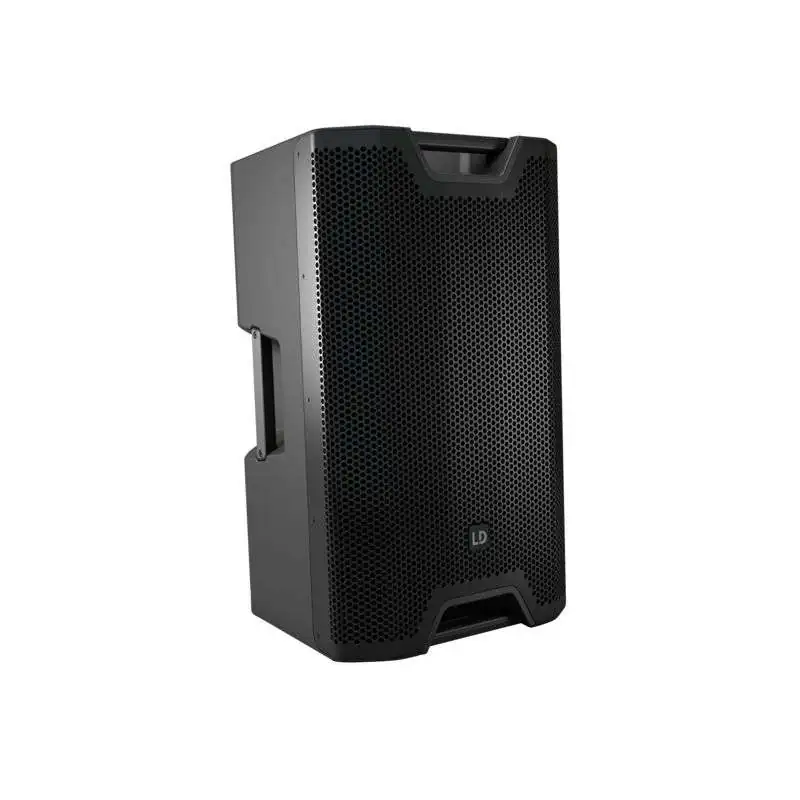

      The LD-Systems ICOA 15 A is an active full-range speaker with a 15" woofer and a 1" HF driver. This speaker is a real all-rounder and offers a unique range of functions for its class. Thanks to its coaxial construction and rotatable, BEM-optimised CD horn, as well as the extensive and precisely tuned DynX DSP presets, the active 15" loudspeaker is extremely versatile, but the full-range loudspeaker also impresses with its excellent sound in the low-frequency range.

      The excellent bass response of the horn-loaded woofer makes the LD ICOA 15 A the ideal choice for musicians, bands, entertainers and dance schools. DJs can also use it without a subwoofer. Vertically the speaker convinces as a satellite, horizontally in flown systems or as a floor monitor. The efficient Class D power amplifier delivers 128 dB max. and 300 W RMS power.

      Thanks to LD-Systems' DynX DSP technology, the speaker delivers perfect performance under all conditions with maximum clarity and assertiveness. 4 presets as well as a 3-band EQ and a delay function allow the optimal adjustment of the sound to the respective conditions. Various signal sources can be connected via the 2 line/mic input channels with individual gain controls plus mono Mix output.

      With its shock-proof front grille and the ideal tilt angle of 55°, the LD-Systems ICOA 15 A also cuts an excellent figure as a floor monitor. In vertical use, a tilt angle of 0° or 5° can be selected with the 36 mm dual-tilt stand mount and the system can be optimally adapted to the respective sound reinforcement situation.

      4 aluminium handles with ergonomic, rubberised surface provide optimum grip when carrying the box.

      The LD-Systems ICOA 15 A at a glance:

      • True all-rounder for full-range, satellite and monitor applications
      • 128 dB max. SPL and 1200 W PEAK output power
      • Vertical and horizontal application due to coaxial design with rotatable, BEM-optimized CD horn (patent pending)
      • Horn-loaded woofer
      • DynX DSP with 4 Presets, 3-Band EQ and Delay Function
      • 2 Line/Mic Input Channels with Individual Gain Controls plus Mono Mix Output
      • Bluetooth® streaming on BT model
      • 36 mm dual-tilt stand mount with 0° and 5° tilt angles, 55° monitor angle with stable stand
      • Shockproof front grille for optimum speaker protection
      • 4 aluminium handles with ergonomic rubberised surface
      • Extensive, optionally available accessories for installation and transport

      Technical data:

      • Size woofer: 15 "
      • Size woofer: 381 mm
      • Magnet woofer: Ferrite
      • woofer brand: Custom Made
      • Horn: BEM optimized CD Horn
      • HF driver size: 1 "
      • HF driver size: 25.4 mm
      • HF driver magnet: ferrite
      • HF driver brand: Custom Made
      • Voice coil HF driver: 1 "
      • Voice coil HF driver: 25.4 mm
      • Amplifier: Class D
      • Beam angle (H x V): 90 ° x 50 °
      • Power (RMS): 300 W
      • Power (Peak): 1200 W
      • Frequency response: 48 - 20000 Hz
      • Crossover frequency kHz: 2 kHz
      • Max. SPL (peak): 128 dB
      • Protection circuits: Multiband Limiter , Overheat , Overvoltage , Overcurrent
      • Controls: 2 x gain , rotary-push encoder , on / off switch
      • Display elements: LC-Display
      • Mic/ Line inputs: 2
      • Mic/line input connectors: 6.3 mm jack combo jacks (balanced) , XLR
      • Line inputs: 1
      • Line input connectors: 3.5 mm stereo jack
      • Line output connectors: 1
      • Line output connectors: XLR
      • Power supply: SMPS
      • Power consumption: 150 W
      • Ambient temperature ( in operation ): 0 - 40 °C
      • Operating voltage: 100 V - 240 V AC / 50 - 60 Hz
      • Relative humidity: < 80 %, non-condensing
      • Fuse: T4AL 250 V
      • Enclosure material: Polypropylene
      • Enclosure type: Bass reflex
      • Stand flange: 0° , 36 mm flange , 5°
      • Monitor angle: 55 °
      • Width: 416 mm
      • Height: 695 mm
      • Depth: 415 mm
      • Weight: 24,3 kg
      • Accessories (included): Power cord

      LD-Systems
      PAH0021618-000

      Produktinformation

      Bluetooth
      No
      Signal Processing
      Active
      RJ45 Interface / Network
      No
      Manufacturer
      LD-Systems
      Weight (kg)
      24.3
      Integrated Mixer
      Yes
      Width (mm)
      416
      Height (mm)
      695
      Depth (mm)
      415
      Typ
      Head
      Multi-Function Housing
      Yes
      Mic Input
      2
      Size of Woofer (Inches)
      15
      Size of Tweeter (Inches)
      1
      Peak output in W
      1200
      max. Peak SPL (dB)
      128
      Housing Material
      Plastic
      Flange
      36mm
      Frequency Response from (Hz)
      48
      Frequency Response to (Hz)
      20000
      DSP
      Yes
      Link
      Yes
      Input
      Combo Socket
      Output
      XLR
      WLAN
      No
      Battery operation
      No
      Wheels included
      No
      incl. Stand
      No
      incl. Cover
      No
      Airworthy
      Yes
      Crossover Network
      No
      EQ
      Yes
      Output in W (RMS)
      300
