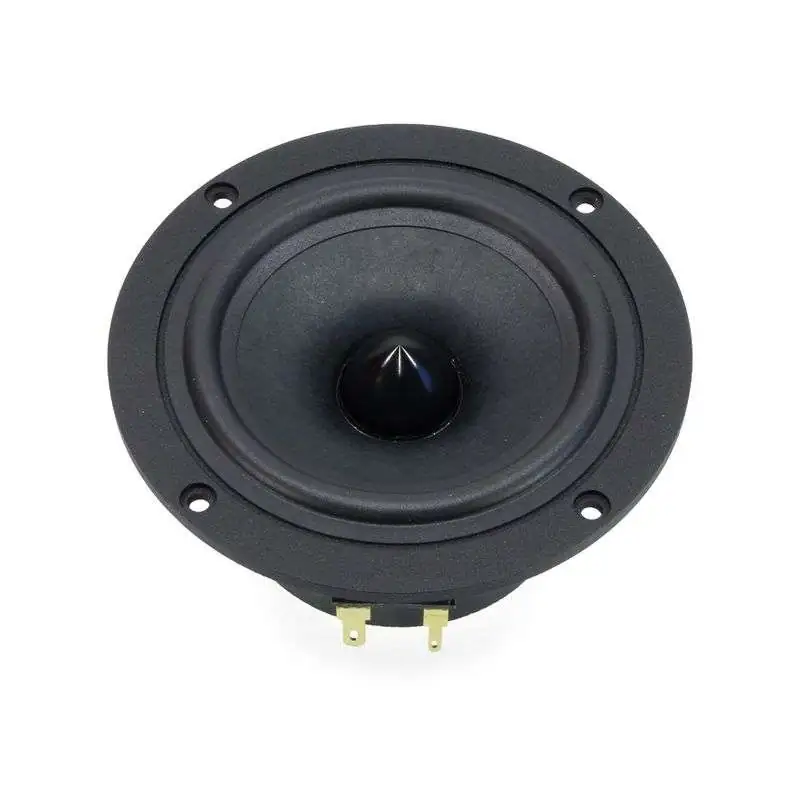

Visaton B 100
79,05 €
SKAT INKLUDERET
The Visaton B 100 - 6 Ohm is a high-end full-range loudspeaker with very balanced transmission characteristics and a slight ri...
Gratis fragt på tusindvis af varer
100% sikre online betalinger
30 dage til rådighed til at returnere varerne
The Visaton B 100 - 6 Ohm is a high-end full-range loudspeaker with very balanced transmission characteristics and a slight rise in high frequencies for a beautiful sound. The high efficiency and low distortion convince by the quality of the loudspeaker. The membrane is made of paper and convinces with its sound.
- Diaphragm compliance Cm 1,28 mm/N
- Power rating 30 W
- Music power handling 60 W
- Nominal impedance Z 6 Ohm
- Frequency response (-10 dB) fu-20000 Hz
- (fu: lower cut-off frequency depending on housing) .
- Average sound pressure level 88 dB (1 W/1 m)
- Maximum linear stroke +/- 1.6 mm
- Limit deflection +/- 7.0 mm
- Resonant frequency fs 75 Hz
- Magnetic induction 1.29 T
- Magnetic flux 316 µWb
- Upper pole plate height 3 mm
- Voice coil diameter 26 mm
- winding height 6,3 mm
- baffle opening 101 mm
- Net weight 0.68 kg
- DC resistance Rdc 5,8 Ohm
- Mechanical Q-factor Qms 10,13
- Electrical Q-factor Qes 0.54
- Total Q factor Qts 0.52
- Equivalent air compliance volume Vas 5.27 l
- effective piston radiating area Sd 54,1 cm²
- Dynamic moving mass Mms 3.2 g
- Drive factor Wxl 4.1 Tm
- voice coil inductance L 0,36 mH
- Connections 4.8 x 0.8 mm (+) / 2.8 x 0.8 mm (-)
PAH0019422-000
Produktinformation
- Manufacturer
- Visaton
