The almost-all-rounder in the Eurorack world

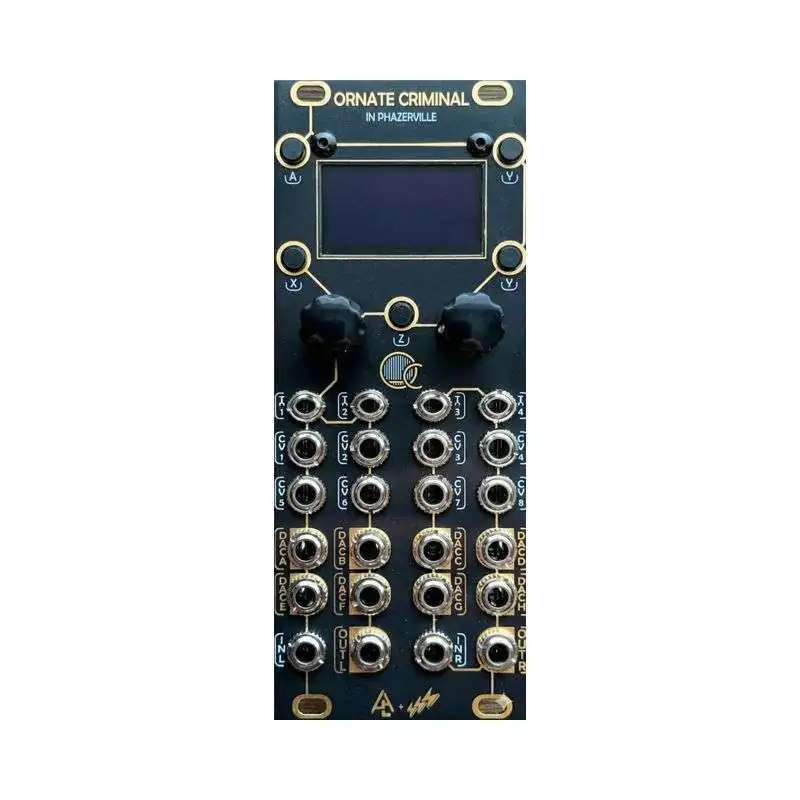

The Ornate Criminal from After Later Audio is the further development of the popular Ornament & Crime multimodule. The module is able to calculate four (different) applications simultaneously and process two mono or one stereo signal. This is made possible by the Teensy 4.1 platform with the already acclaimed Phazerville firmware. Incidentally, the module's software is open source firmware with community development; experienced users can develop their own app in concept. There is also plenty of storage space for your own configurations. The apps cover the following functions, among others: Envelope, Arpeggiator, Sequencer, Oscilloscope, Turing Machine, CV Recorder, Quantizer, Gate Delay, MIDI Interface, Clock Divider and much more. The Ornate Criminal is perfect for small systems whose field of application is reinvented with every Patch , larger systems that always need all functions four times and basically for all those who need certain functions again and again but are limited in terms of space.

A selection of the included apps

• Acid Curds - 4-voice 8-step chord quantizer/sequencer

• Automatonnetz - Neo-Riemann transformations on a 5x5 matrix sequence!

• Backup / Restore - Transfer app and calibration data as SysEx

• Calibr8or - Quadruple performance quantizer with pitch tracking calibration

• Captain MIDI - Configurable CV-to-MIDI and MIDI-to-CV interface

• CopierMaschine - extended version of the digital emulation of a four-stage analog shift register (ASR)

• Dialectic Ping Pong - quadruple envelope generator (based on the hidden mode of MI Peaks)

• Enigma - sequencer from shift registers (Turing Machines)

• Harrington 1200 - neo-Riemannian tone-net transformations of triadic chords

• Hemisphere - 2 applets simultaneously

• Low-Rents - dual Lorenz & Rössler modulation generator (Strange Attractor), partly based on the MI Streams Easter EggMeta-Q - two-channel quantizer with scale and note mask sequencing

• Neural Net - 6-neuron logic processor

• Passencore - Generates chord progressions from LFOs (from sixolet)

• Piqued - fourfold voltage controlled envelope generator (based on MI Peaks, with extension and voltage control, additional envelope types, retrigger, additional segment shapes, trigger delay and other functions)

• Pong - Pong! the arcade classic

• Quadraturia - wavetable quadrature LFO

• Quantermain - quadruple pitch quantizer for external voltages with editable scales

• References - Fixed voltage generator, frequency meter, note tuner, tap tempo calculator, closed loop calibration.

• Scale Editor - edit and save microtonal scales

• Scenes - macro CV switch / crossfader

• Sequins - two-channel step sequencer with 4 patterns that can be up to 16 steps long

• The Darkest Timeline - parallel universe sequencer

• Viznutcracker, sweet! - quadruple "byte beat" equation generator that can be used as an audio source to create interesting 8-bit sounds and melodies

• Waveform Editor - edit and save vector waveforms (for LFOs, envelopes, one-shots and Phase scrubbing)

• Setup / About - check version, change encoder directions, customize display/DAC/ADC, set screen off time
