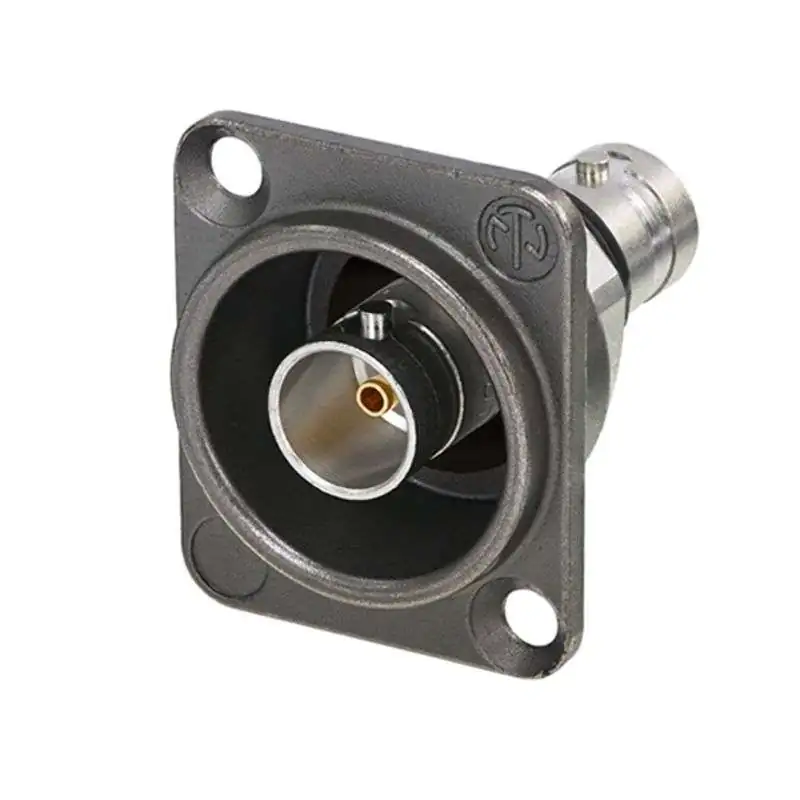

Neutrik NBB75DFIX Chassis Jack
9,27 €
SKAT INKLUDERET
BNC chassis connector, connector type: female, contacts: gold plated, color: black.
Gratis fragt på tusindvis af varer
100% sikre online betalinger
30 dage til rådighed til at returnere varerne
BNC cable socket for panel mounting
Neutrik NBB75DFIX chassis connector is suitable for common BNC cable connectors and impresses with grounded panel mounting and excellent return loss values. The optimal isolation ensures a larger margin with poorer return loss. In case of deviations, the signal transmission therefore remains constant and does not suffer any interruptions.
Excellent shielding and protection against corrosion.
Their material as well as their construction also testify to Neutrik's typical stability and high quality. The milled brass body and the closed contact design ensure a long-lasting and good connection. The gold-plated cage contact provides excellent shielding and protection against corrosion. As the connector is recessed in the standard D-format housing, it is additionally protected.
The possibility of coloured markings also ensures clarity and is helpful for structured organisation.
Separately available accessories for Neutrik NBB75DFIX chassis connector :
- Neutrik DSS labeling plate in different colors
- Neutrik MFD M3 mounting frame
- Neutrik SCDP seal D-shape in different colours
- Neutrik SCDX sealing flap in different colours
- Neutrik SCCD-W sealing flap IP65 D-Series
- Neutrik SCF dust protection cap
Specifications:
- Connection type: BNC 75 Ω
- Gender: female
- Contact resistance: ≤ 3 mΩ (inner)
- Contact resistance: ≤ 2 mΩ (outer)
- Dielectric strength: 1.5 kVdc
- Impedance: 75 Ω
- Insulation resistance: > 5 GΩ
- Rated voltage: < 50 V
- VSWR: ≤1.06 / >30 dB up to 6 GHz, ≤1.13 / >24 dB up to 12 GHz, ≤1.22 / >20 dB up to 18 Ghz
- Signal type: UHD, SDI, Video, AES/EBU, Composit, YUV, RGB, RGBH, RGBHV
- Insertion force: < 25 N
- Lifetime: > 1000 mating cycles
- Mounting direction: Front mounting
- Housing shape: D
- Insert: PTFE
- Housing: Polyacetal (POM) (insulation shell)
- Shell plating: Antraloy
- D-shape housing: Zinc diecast (ZnAl4Cu1)
- Temperature range: -30 °C to +85 °C
ACC0009847-000
Produktinformation
- Manufacturer
- Neutrik
- Impedance (Ohm)
- 75
- Male/Female
- Female
- To install
- Ja
- Angle
- No
