      40-channel digital mixer with 26 busses, USB interface, integrated recording, AVB network and Studio One Pro software.
      Antal :
      Skriv din anmeldelse

      EU3234363840424446USXX5XSSMLXLXXLXXLArm Length6161,56262,56363,56464,5Bust Circumference8084889296101106111Waist Girth6165697377828792Hip Circumference87919599103108113118

      • Gratis fragt på tusindvis af varerGratis fragt på tusindvis af varer
      • 100% sikre online betalinger100% sikre online betalinger
      • 30 dage til rådighed til at returnere varerne30 dage til rådighed til at returnere varerne

      Powerful 40-channel digital mixer for live and studio use

      • 40-channel digital mixer with 26 mix busses
      • 32 mic/line inputs with recallable XMAX-R preamps
      • 33 motorized, touch-sensitive faders
      • 16 FlexMixes configurable as aux, subgroup or matrix
      • 4 FX mixes with their own processors and stereo returns
      • 4 subgroups and 24 DCA groups
      • onboard 34x34 multitrack SD recorder
      • 64x64 USB 2.0 audio interface for bidirectional recording
      • Studio-grade 24-bit/48 kHz audio quality
      • FAT Channel with 7 state-space modeled EQs and 8 vintage compressor models
      • Milan-certified AVB audio network
      • Universal Control software for local and remote operation
      • PreSonus Metro for remote control via the Internet
      • QMix-UC app for iOS and Android to control your own monitor mixes
      • Capture multitracking software with Virtual Soundcheck function
      • Studio One Pro DAW license included in the scope of delivery
      • Bluetooth 4.1 stereo input
      • AES/EBU Output (XLR male)
      • Integrated quad-core FLEX DSP for fast signal processing
      • Optional rack installation possible with separately available rack mount kit

      Digital mixer with uncompromising flexibility and studio quality

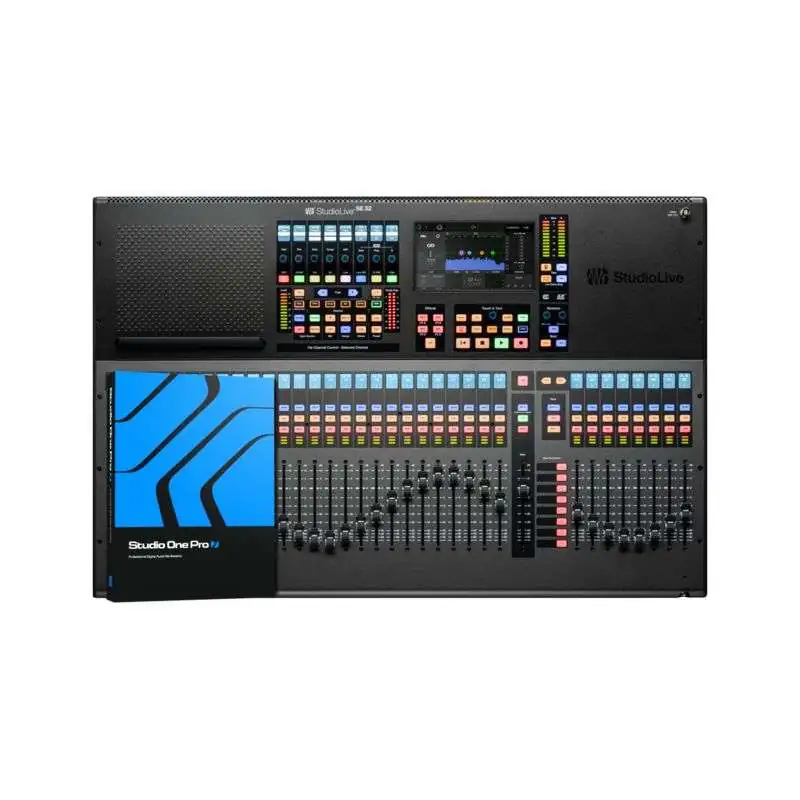

      The PreSonus StudioLive SE 32 is far more than a compact digital mixer - it is a powerful mixing console that combines professional audio quality, extensive connectivity, and seamless hardware-software integration in a portable format. With 40 channels, 26 mix buses, and numerous modern features, it is the perfect solution for live events, studio production, and broadcast applications.

      Extensive connection options and flexible configuration

      The StudioLive SE 32 provides 32 mic/line inputs with recallable XMAX™ preamps, 16 FlexMix outputs, dedicated main and mono outputs, and a headphone output. Thirty-three motorized, touch-sensitive faders ensure a clear overview and smooth operation, even with complex projects.

      Each of the 16 FlexMixes can be configured individually as an aux mix, subgroup, or matrix mix. These are complemented by four FX mixes with dedicated processors and stereo returns, four subgroups, and 24 DCA groups. This level of flexibility makes the mixer ideal for demanding live setups, theaters, houses of worship, or studio environments.

      Studio-grade signal processing and integrated effects

      The integrated FAT Channel gives direct access to all key channel-processing parameters. Seven state-space-modeled EQs and eight vintage compressor models can be applied to every input and bus, while high-quality reverb and delay effects provide additional creative options.

      A powerful quad-core FLEX DSP engine ensures smooth, low-latency processing and delivers an analog-like mixing experience combined with the precision of modern digital technology.

      Integrated recording and streaming solutions

      With its bidirectional 64×64 USB 2.0 audio interface, the StudioLive SE 32 supports high-resolution multitrack recording directly to your DAW. It also features a built-in 34×34 SD card recorder, so you can capture sessions without an external computer.

      Thanks to tight integration with PreSonus Capture®, virtual soundcheck functionality is only a click away. The included Studio One Pro DAW works hand in hand with the console, allowing you to move effortlessly from live mixing to recording and streaming.

      Networking and remote control

      Milan-certified AVB audio networking makes it easy to connect the StudioLive SE 32 with PreSonus NSB stage boxes, EarMix 16M personal monitor mixers, or other StudioLive Series III consoles. Optional Dante support can be added via the AVB-D16 Dante Bridge.

      For maximum flexibility, Universal Control software enables local or remote control from a computer or tablet. PreSonus Metro™ provides secure internet access for remote mixing and real-time monitoring, while musicians can adjust their own monitor mixes with the free QMix®-UC app for iOS or Android devices.

      Compact and powerful - the perfect solution for every application

      Whether for live performance, studio production, touring, or broadcast, the StudioLive SE 32 is built to meet any challenge. Offering studio-grade 24-bit/48 kHz audio quality, lightning-fast operation, and a sophisticated ecosystem of hardware and software, it is the ideal control center for demanding audio professionals.

      Technical data:

      Microphone preamplifier

      • Type: 32 XLR Female (16 XLR, 16 Combo)
      • Frequency response (main output, unity gain): 20 Hz - 20 kHz, ±0.5 dBu
      • Input impedance: 1 kΩ
      • THD (main output, unity gain): ' 0.005 %, +4 dBu, 20 Hz - 20 kHz, unweighted
      • Signal-to-noise ratio (main output, unity gain): 94 dB, A-weighted
      • Common mode rejection ratio (CMRR, 1 kHz, unity gain): 65 dB
      • Gain control range: 0 dB to +60 dB (±1 dB)
      • Maximum input level (unity gain): +12 dBu
      • Phantom power: 48 VDC, switchable per channel

      Line inputs

      • Type: 16 x combo (XLR/jack) TRS female, balanced
      • Frequency response: 20 Hz - 20 kHz, ±0.5 dBu
      • Input impedance: 10 kΩ
      • THD: ' 0.005 %, +4 dBu, 20 Hz - 20 kHz, unweighted
      • Signal-to-noise ratio: 94 dB, A-weighted
      • Maximum input level: +18 dBu

      Tape inputs

      • Type: RCA female, unbalanced (stereo)
      • Maximum input level: +12 dBu, ±0.5 dBu

      FlexMix outputs

      • Type: 16 (12 XLR male, 4 x 6.35 mm jack TRS, balanced)
      • Maximum output level: +24 dBu, ±0.5 dBu
      • Output impedance: 100 Ω

      Subgroup outputs

      • Type: 4 x 6.35 mm jack TRS balanced (stereo L/R, mono)
      • Maximum output level: +24 dBu, ±0.5 dBu
      • Output impedance: 100 Ω

      Main outputs

      • Type: 3 XLR male balanced (stereo L/R, mono/center)
      • Maximum output level: +24 dBu, ±0.5 dBu
      • Output impedance: 100 Ω

      Monitor outputs

      • Type: 6.35 mm jack TRS female balanced (stereo pair)
      • Maximum output level: +18 dBu, ±0.5 dBu
      • Output impedance: 100 Ω

      Tape outputs

      • Type: RCA female, unbalanced (stereo pair)
      • Maximum output level: +18 dBu, ±0.5 dBu
      • Output impedance: 100 Ω

      Headphone output

      • Type: 6.35 mm jack TRS female, active stereo
      • Max. Output power: 100 mW per channel @ 60 Ω load
      • Frequency response: 20 Hz - 20 kHz (±0.5 dB)
      • THD+N: 0.01 %, 1 kHz, max gain, 20 Hz BW, unweighted
      • Signal-to-noise ratio: 96 dB, 1 kHz, max gain, 20 Hz BW, unweighted

      Digital audio and control interfaces

      • USB: USB 2.0, Type-B (64x64 bidirectional)
      • Bluetooth: Version 4.1, stereo
      • AES/EBU Output: XLR Male
      • Network connection: RJ-45 Control Port
      • AVB Audio Network Port: Locking XLR Ethernet

      Internal processing

      • Processor: Quad-Core FLEX DSP
      • Processing: 32-bit floating point
      • Sampling rates: 44.1 kHz and 48 kHz
      • A/D/A bit depth: 24 bit
      • Reference level for 0 dBFS: +18 dBu
      • System latency: 1.9 ms (analog in analog out, all processing active)
      • Jitter: ' 20 ps RMS (20 Hz - 20 kHz)
      • Jitter attenuation: ' 60 dB (1 ns in, 1 ps out)

      Dimensions & weight

      • Height: 165.36 mm
      • Width: 822.21 mm
      • Depth: 583.48 mm
      • Weight: 16.9 kg


      Manufacturer information
      Fender Musical Instruments Corporation (FMIC)
      Cessna Circle 311
      CA 92878 Corona
      USA
      contactemea@fender.com
      www.fender.com EU economic operator
      Fender (EDC) B.V.
      Transpolispark, Siriusdreef 17-27
      2132 WT Hoofddorp
      Netherlands
      contactemea@fender.com
      www.fender.com
      Presonus
      REC0017009-000

      Produktinformation

      Recording Function
      Yes
      Number of Channels
      48
      Inserts
      0
      Number of Microphone Inputs
      32
      Line ins
      16
      Line outs
      23
      Headphone inputs
      1
      S/PDIF coaxial In
      0
      S/PDIF coaxial Out
      0
      S/PDIF optical In
      0
      S/PDIF optical Out
      0
      ADAT In
      no
      ADAT Out
      no
      AES/EBU
      1
      Network connections
      Control, Audio Network
      Wordclock In
      No
      Wordclock Out
      No
      Maximum sampling rate in kHz
      48
      Maximum sampling rate in bit
      24
      Equalizer
      Yes
      Compressor
      Yes
      Bluetooth
      Yes
      SD Card Slot
      Yes
      USB Port
      Yes
      19"-capable
      Yes, rack brackets available
      DI In
      0
      Number of monitor paths
      1
      Effect Type
      Reverb, Delay, Kompressor
      Sample player
      No
      Manufacturer
      Presonus
