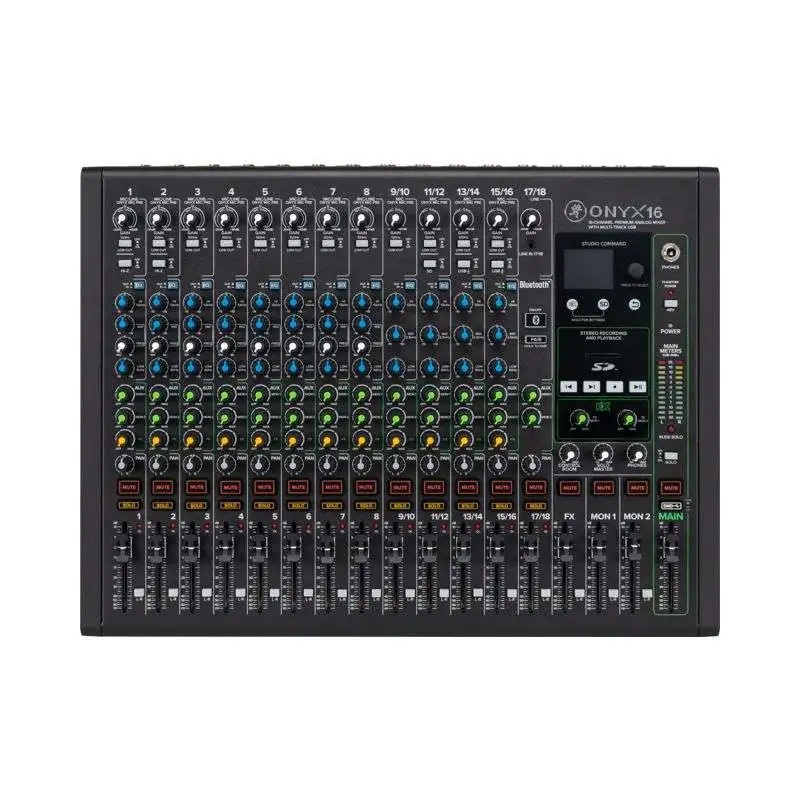

Mackie Onyx16 Features

Classic sound, modern features

• 12 award-winning Onyx mic preamps with up to 60dB of gain
• Premium analogue circuitry ensures ultra-low noise, studio-quality sound
• Analog/USB channel strips with flexible routing
• Legendary Perkins "British Style" EQ's with tunable mids for classic sound of the 60's and 70's
• High-resolution DSP with customizable reverbs, delays and more, including its own effects EQ

Recording and output via SD card or USB

• High-resolution 96kHz / 24-bit multitrack recording (18 tracks) to Mac/PC via USB
• Stereo recording and output directly to SD card
• 4 assignable USB returns (2 stereo pairs)
• One-touch sum recording via USB

Studio Command - Powerful and intuitive full-colour display with single-knob operation

• Easy navigation through effect parameters and integrated SD recording and playback
• Visually browse files on SD card via built-in Display
• Dedicated buttons for record, play/pause, previous and next track
• Up to 6 user presets can be stored and easily recalled

Professional effects processor with high resolution

• Built-in effects for use at live concerts, streams, in the studio and more
• Reverb, delay, Chorus and other effects
• Adjustable parameters and custom EQ let you dial in the perfect sound

Bluetooth® streaming

• Simply pair a Bluetooth-enabled device and stream audio to a dedicated channel in the mixer
• Audio stream can be sent to aux send and sum

Extensive mixing functions

• 3-band Perkins EQ with on/off hard bypass switches on all channels
• Hi-Z switches allow direct connection of guitars, basses and other instruments
• 100 Hz high-pass filter and 48V phantom power on all mic channels
• Stereo 1/8" input and Bluetooth streaming
• Stereo line inputs
• Aux/monitor output with dedicated send control per channel
• Separate control room outputs
• Headphone output with level control
• 12-segment LED level meter
• Overload LEDs on all channels
• PFL/AFL Solo
• Footswitch input to mute effects (footswitch not included)

Extensive DAW & PlugIn Bundles

• Pro Tools® | First and Waveform™ OEM.
• The Musician Collection for ProTools | First includes 23 exclusive plugins such as BBD Delay, Eleven Lite, 304E EQ and 304C Compressor.
• DAW Essentials™ Bundle for Waveform OEM includes 16 powerful plug-ins such as Equalizer, Compressor, Reverber8 and Limiter.

Rugged chassis and professional design

• Illuminated mute and solo buttons provide a pleasant tactile feel and clear visual feedback
• Sealed rotary pots resist dust and dirt
• Built-Like-A-Tank™ steel chassis
• High-visibility, high-contrast pots
• Rugged QuickGrip™ side panels for optimal protection and portability
