• Analog mixer with 16 inputs
• Maximum 10 microphone / 16 line inputs (8 mono + 4 stereo)
• 4 group buses + 1 stereo bus
• 4 aux inputs (including FX)
• D-Pre mic preamps with inverted Darlington circuitry
• 1-button compressors
• High-quality effects: SPX with 24 programs
• Pad switches on the mono inputs
• +48V phantom power
• XLR balanced outputs
• Internal universal power supply for worldwide use
• Rackmount kit included
• Metal chassis

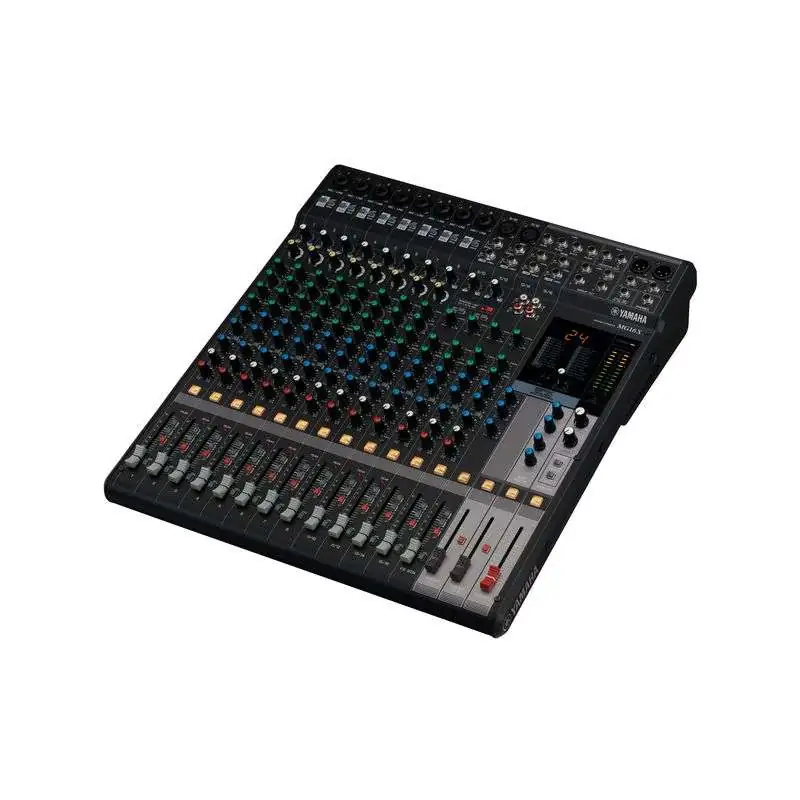

The MG16X mixer features XLR and TRS stereo outputs for connection to your PA system or monitor speakers. It also has a 1/4-inch headphone output with level control for personal monitoring, and additional 1/4-inch TRS stereo monitor outputs for routing to powered speakers, amplifiers, or devices such as digital recorders.

Each of the MG16X's channels has its own FX bus send level, and there are 24 effect presets to choose from. The overall level of the FX bus is controlled by the dedicated FX Return level control. Reverb, delay, phaser, flanger, chorus, tremolo, auto-wah, Distortion and other effects let you better integrate vocals and instruments into the mix.
