Technical Data

• Power supply internal

• Power supply 90-250 V, 50-60 Hz
• Current consumption 1.1 A at 230 V

• DMX 512 connection 2x XLR 3/5 pol female
• DMX 512 In connector no
• Audio connection no
• USB connection 2x USB-A 2.0 (1x data connection, 1x charging socket for external tablet)
• eSATA connector no
• Monitor connection no
• Desk lighting connection 1x XLR 3 pin female
• EtherNet connection 1x RJ45 etherCON (Gigabit)
• Wifi port Integrated WLAN access point
• Remote control port no
• MIDI connection no (USB-Midi)
• SMPTE connector (LTC) no
• Dimensions (L x W x H) 43 x 33.4 x 9.4 cm
• Weight 3.6 kg


Special Features

• Integrated Web Server

• Integrated WLAN access point
• Up to 3 external tablets can be integrated via web application
• Multi-touch operation
• LTP & HTP attributes

• Modern graphical user interface
• 5 multi-touch user interfaces (Palletes, Virtual Playback, Cues, Executer ,Out)
• Executor user interface freely configurable
• Extensive shortcut functions
• Undo/Redo function
• Individual fade in & out times
• Manual crossfade function
• Simultaneous playback of multiple cuelists
• FAN functions
• Fixture Builder
• Universes: 4x ArtNet or 8x sACN
• MIDI support via USB
• OSC support
• Auto-Save and -Backup function
• Security settings for access restrictions
• Free software and library updates


Features

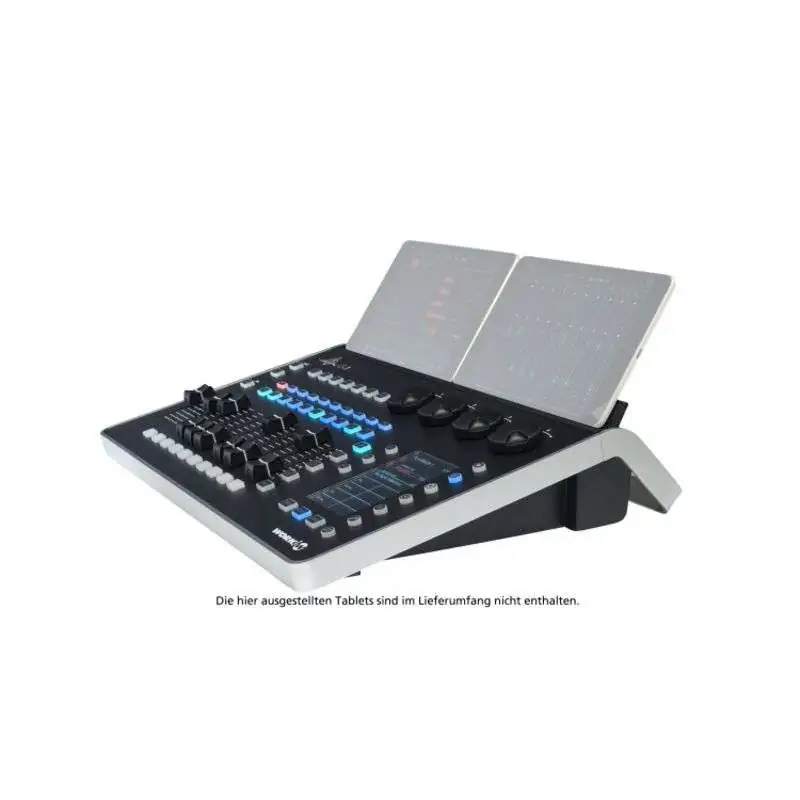

The LS-1 can output either 4 universes via Artnet or 8 universes via sACN, has 4096 fixtures, 10 playback faders and 20 wing faders. It supports various protocols including DMX 512, MIDI, UDP, OSC & HTTP.

For user-friendliness, it is equipped with a built-in web server and connects to devices wirelessly via wifi. In addition, it has an integrated display on the right side of the control surface that shows how the controls are currently assigned. It updates when the user switches between control levels. LS-1 users thus have the freedom to control their set according to their personal preferences via the browser-based software, using a combination of the LS-1 hardware and their preferred mobile device, or via the LS-1 hardware alone.

To top it all off visually, the buttons and display of the lighting console are additionally illuminated to quickly find your way around, especially in the dark, while controlling multiple moving heads above the dance floor.

Control

In addition to the classic control on the lighting console, control on the screens from PC, smartphone and tablet is possible. The devices connected via W-LAN can be used for lighting control in real time without delay.

The software is particularly user-friendly and compatible with Windows, Apple, Android and Linux. It especially allows multi-touch inputs at the same time on the touch screen.

For convenience, the lighting desk offers a wide integrated stand for a large tablet or several smaller devices, so that smooth control can be made even when space is limited.
