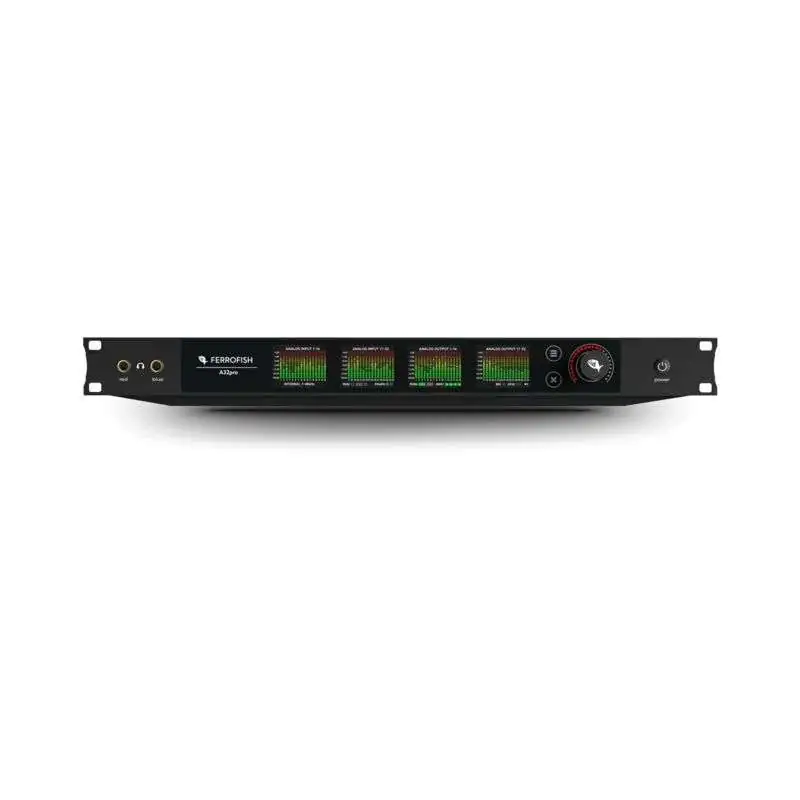

Ferrofish A32pro Multimode
2.124,15 €
SKAT INKLUDERET
Digital converter AD/DA with ADAT, MADI & 32x32 analog channels. Digital mixer with Sharc DSP integrated, TFT touch display.
Gratis fragt på tusindvis af varer
100% sikre online betalinger
30 dage til rådighed til at returnere varerne
Ferrofish A32pro Multimode Audio and Format Converter Overview:
- Modern 32-channel converter
- 4 large TFT multi-touch displays
- ESS converter chips, temperature compensated clocking, active jitter reduction
- 32x32 analogue inputs and outputs in D-sub format
- 4 ADAT banks (16x16 channels @ 96kHz, 32x32 channels @ 48kHz)
- 64x64 MADI channels optical (redundant interface, coaxial upgradeable)
- Format conversion with 128x128 channels
- 2 headphone connectors with own monitoring mixes
- Remote control via USB, MIDI, GPIO interface, MIDI-over-MADI
- Latency-free digital mixer with free routing (ADSP-2148x series Sharc DSP)
- 2 slots for DSP cards
- Redundant power supply
- incl. plug-in power supply
- RemoteFish software free download from manufacturer, alternatively control via standard MIDI commands
- Multimode MADI: Singlemode version available on request
The future-proof alternative
The Ferrofish A32pro is a modern premium class multichannel converter for all larger recording and mixing projects. With its extensive interface equipment, it allows a variety of control modes and the integration of older digital equipment such as interfaces, DAT recorders and other converters. Especially in environments with a large number of audio devices or an analogue mixing console, the A32pro is a powerful, compact single device for controlling all signal flows. At the same time, the A32pro delivers Ferrofish's usual high-quality signal fidelity, stable operation with lowest latency, and uncomplicated setup and operation. Thanks to its compatibility with popular digital formats and control directly on the device or via MIDI , usability is assured for years to come.
Connectivity & DSP Mixing Console
All digital and analogue channels of the A32pro can be routed to each other directly in the device and are almost latency-free in 8-channel packets. This allows high-resolution conversion of analogue and digital audio signals and conversion between ADAT and MADI formats. Due to its powerful DSP equipment the A32pro can be used as AD/DA converter and format converter at the same time. If, for example, an existing interface or converter with ADAT connections is to be used in a studio setup, the A32pro can simply be connected in between and 32 analogue I/Os extend the setup.
Setup becomes a minor matter
The A32pro digital converter allows 5 control channels: For convenient operation on the device - actually a contradiction in terms - Ferrofish has installed no less than 4 multi-touch TFT displays, which can also display the digital levels of all analogue inputs and outputs simultaneously. The same possibilities are available via the driver software RemoteFish, which can be downloaded free of charge from the manufacturer. For this, the A32pro can be controlled via USB, MIDI or MADI. Via MADI and MIDI simple MIDI CC commands are accepted as well; so the software is not necessary at least for controlling the basic functions. The additional GPIO interface allows switching presets and operating modes using a simple footswitch.
REC0015949-000
Produktinformation
- S/PDIF optical In
- 4
- S/PDIF optical Out
- 4
- ADAT In
- 4
- ADAT Out
- 4
- Network connections
- none
- Maximum sampling rate in kHz
- 192
- Maximum sampling rate in bit
- 24
- Manufacturer
- Ferrofish
- Headphone Connection
- Yes
- Number of channels
- 128x128
- Other interfaces
- MIDI
- Converter build
- AD/DA
- Inputs analog
- 32
- Outputs analog
- 36
- Format
- 19"
- User
- High-End
- MADI
- optical
- Wordclock
- Yes
- Clock 10MHz
- No
- USB Update Slot
- Yes
- Redundant power supply unit
- Yes
- MADI Optical
- 64x64
- MADI Coaxial
- optional
