Professional Eurorack case for studio & live

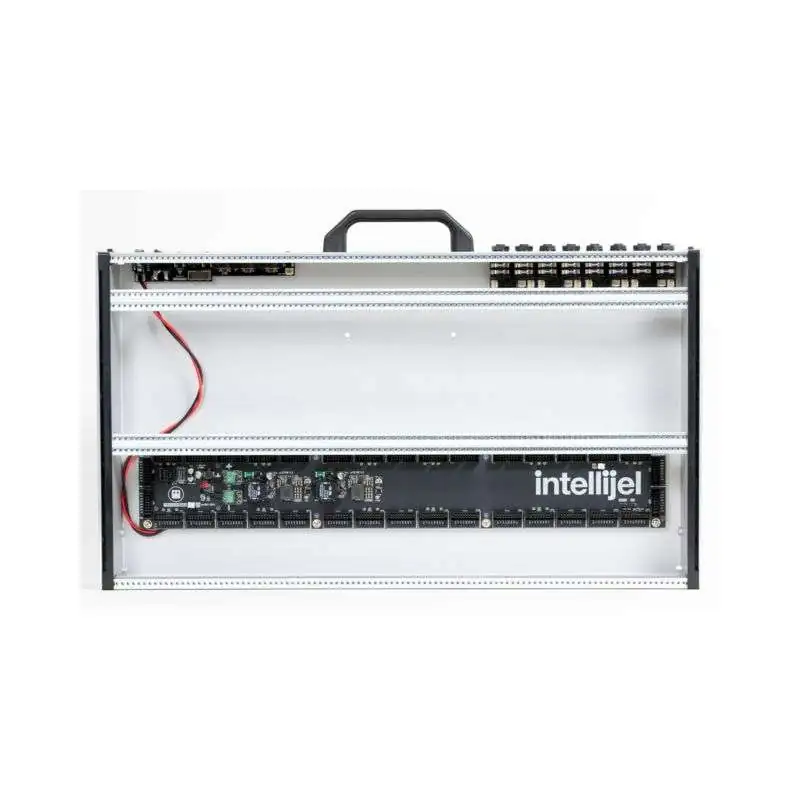

The 7U Performance Case GEN-2 from Intellijel is a compact Eurorack modular system case with a flexible 1U row and plenty of power. With two rows of 104 HP each, the Case offers space for 3U modules and a further row for 1U modules in Intellijel format. The 1U row can be mounted at the top or in the middle. The busboard is supplied with power via the external 90W power supply unit and delivers +12 V: 6000 mA / -12V: 5000 mA / 5V: 2000 mA; there are 34 connections for modules. The maximum installation depth is 43 mm above the audio board, 50 mm above the power supply unit and 73 mm at all other points.

There are several connections for audio, MIDI and USB on the rear. Eight 6.3mm TRS jack sockets are available (in pairs) in combination with audio interfaces such as eg. Mixup, 1U XFade, 1U Stereo Out, 1U Pedal I/O or 1U Stereo I/O. The 1U XY IO can be used to send control voltages from Case to Moogerfooger pedals. Each jack socket has connection options for balanced mono, unbalanced stereo or send/return configurations. The MIDI Trio and USB-C port connect to an installed MIDI interface such as the 1U MIDI or the Metropolix sequencer with backpack option. The new power supply board of the second Generation has enough power on the 5V line to charge a smartphone or power a desktop device in combination with the 1U USB power module.

There are holes on the bottom of the 7U Performance Case GEN-2 for mounting a VESA 100 bracket. This is a very convenient solution for User with chronically limited desk space. The scope of delivery includes a case cover made of the same material as the Case itself, which protects the Case from dust when wired and protects it during transportation, and an external power supply unit.

Large selection of 1U modules

We offer various modules in a suitable format to equip the 1U series. The practical format is aimed at users who want to keep their Eurorack modular system compact. In addition to secondary functions such as eg. Multiples and various tools, the selection also includes oscillators, envelopes and other main functions. > Click here for the 1U modules <
