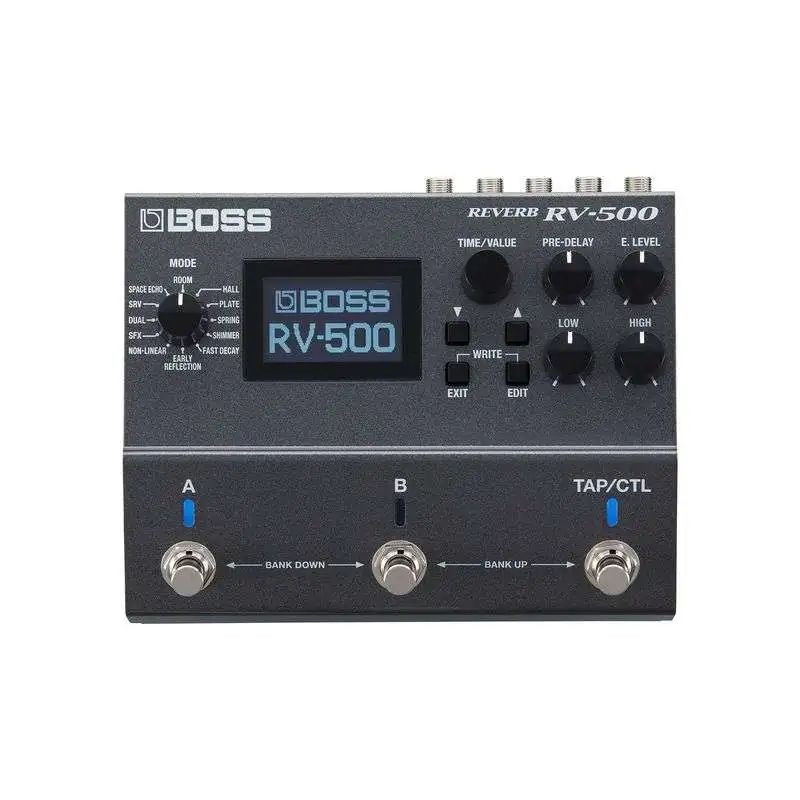

The Boss RV-500 Reverb Processor is a powerful and versatile unit with a 32-bit/96kHz sampling frequency, a 32-bit AD/DA conversion, 12 reverb modes, and an LCD screen. Featuring an immense level of programmability with pro-level studio reverb at your feet, this processor offers 21 newly-developed reverb algorithms that deliver a huge range of textures from complementary ambience to deep, immersive sonic atmospheres.

Thanks to high-octane DSP, this processors allows the user to access a full-featured digital delay along with every reverb patch, and even run two reverb patches at once. With MIDI I/O connectivity, support for external footswitch/expression control and USB for connection to the free RV-500 Editor/Librarian software, the RV-500 is considered one of the most advanced reverb pedals on the market.

The main features of the Boss RV-500 Reverb Processor include:

• Sampling Frequency: 96 kHz
• AD/DA Conversion: 32-bit
• Processing: 32-Bit Floating Point
• Modes: Room, Hall, Plate, Spring, Shimmer, Fast Decay, Early Reflection, Non-Linear, SFX, Dual, SRV, Space Echo
• Memory: 198 (99 Banks x 2), 297 (99 Banks x 3)
• Nominal Input Level: -10 dBu
• Maximum Input Level: +8 dBu
• Input Impedance: 1 M ohm
• Nominal Output Level: -10 dBu
• Maximum Output Level: +8 dBu
• Output Impedance: 2 kOhm
• Recommended Load Impedance: 20 kOhm or Greater
• Bypass: Buffered or True (with Relays)
• Switches: A, B, Tap/CTL
• Buttons: Down, Up, Exit, Edit
• Knobs: Mode, Time/Value, Pre-Delay, E.Level, Low, High
• Display: Graphic LCD (128 x 64 Dots, Backlit)
• Connectors: 1/4" I/O (A/Mono, B) Jacks; 1/4" TSR CTL 1,2/EXP Jack; USB Type-B Port; MIDI I/O, DC In Jack
• Current Draw: 225mA
• Battery Life: 4.5 Hours
• Dimensions: 170 x 138 x 62mm
• Weight: 1kg
• Includes: Owner's Manual, Safety Leaflet, 4x Alkaline AA Batteries
