ANTELOPE Orion Studio Synergy Core Thunderbolt Interface
1.983,05 €
SKAT INKLUDERET
Thunderbolt / USB audio interface with 12 preamps, DSP & 50 real-time plug-ins.
Gratis fragt på tusindvis af varer
100% sikre online betalinger
30 dage til rådighed til at returnere varerne
Thunderbolt & USB audio interface with 12 discrete mic preamps
- Free Plugins
When you purchase this Antelope Audio interface during the promotional period from January 1 to March 31, 2026, you will receive a powerful software package free of charge. After activation, you will receive 18 selected Antelope Audio plugins and a full version of Bitwig Studio Essentials.
Included software (18-plugin bundle + DAW)
- Bitwig Studio Essentials - full-featured DAW for recording, editing, and sound design
- FET-A76 - extremely fast FET compressor for drums, vocals, and transients
- Stay-Levin - musical Vari-Mu compressor with dense tube compression
- X903 - precise VCA compressor/limiter for controlled dynamics
- Opto 2A - classic opto compressor for smooth leveling
- Tubechild 670 - legendary Vari-Mu sound for bus and master processing
- VP Drum-All-Nite - crisp dynamics processor specifically for drums
- NEU-473A - characterful VCA compressor with vintage punch
- VEQ-1A - musical tube EQ for broad tonal adjustments
- VMEQ-5 - tube EQ with a focus on the important mids
- VEQ-HLF - analog-sounding high- and low-pass filters
- VEQ-4K BLACK - modern 4-band EQ with plenty of punch
- BAE-1073 - classic EQ sound with distinctive coloration
- BA-31 - germanium preamp for warmth, saturation, and character
- Gyraf Gyratec IX - dual-tube preamp for full, open signals
- Stages - versatile reverb from subtle rooms to large spaces
- Memory Cat Brigade - analog bucket brigade delay with vintage character
- Tape Delay - delay with classic tape feel
- The Judge - metering and analysis tool for precise mixing decisions
The bottom line: connect the interface, get started, and work directly with high-quality EQs, compressors, and channel strips. Ideal for clean recording and creative mixing.
Important: Activation must take place by April 15, 2026, at the latest, for the licenses to be automatically activated.

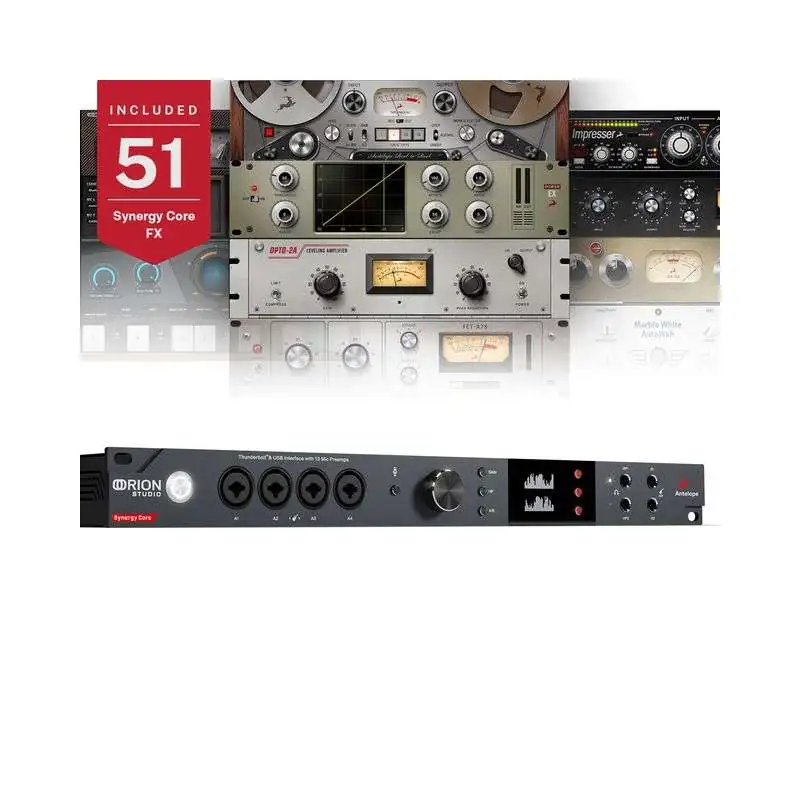

Antelope presents Antelope Orion Studio Synergy Core, a professional, efficient and modern Thunderbolt 3 & USB AD/DA interface including 12 discrete microphone preamps, six built-in DSP and two FPGA chips as well as a solid effects library with 50 Antelope plug-ins for editing your recordings. As the heart of your studio, the Orion Studio Synergy Core not only provides top-notch sound, but also takes the load off your computer with its external processors. Simply put, you can run larger productions, add more plugins and VSTs, minimize latency, increase buffer size and keep your system stable.
Synergy Core: FPGA + DSP = Future-Proof Effects Processing
With 6 DSP + 2 FPGA chips under the hood, allowing you to incorporate a huge effects library from Antelope Audio and platform partners, the Orion Studio Synergy Core takes the load off your host Mac or PC, allowing you to create larger mixes and compositions without bringing the system to its knees. Thanks to Antelope's state-of-the-art Synergy Core FX processors, you'll have tremendous processing power for any type of project - now and in the future!
50 Antelope FX
Antelope's Orion Studio Synergy Core brings you 50 of the best real-time effects plug-ins - impressive mic preamp emulations, compressors, EQs, reverbs, guitar amps and cabinet models, everything you need to bring your tracks to life and edit. And thanks to the Synergy Core architecture, all the processing plug-ins you need for your session can be run simultaneously.
Thunderbolt 3 + USB Connectivity
The system provides a cross-platform audio interface for Windows and Mac, offering both USB and Thunderbolt 3 connections to your DAW host computer. Even charging your MacBook is even possible via the Orion Studio Synergy Core.
130 dB dynamic range D/A for critical listening.
Why trust your projects with anything less than the best D/A converters? The Antelope Orion Studio Synergy Core delivers 130 dB dynamic range on both monitor outputs - which can run simultaneously or in A/B mode.
12 Discrete Mic Preamps + Direct Inputs
The Antelope Orion Studio Synergy Core gives you 12 mic preamps based on Antelope's ultra-linear Discrete MP standalone preamp, delivering 75 dB of pristine gain. Want to process line-level signals? No problem - the Orion Studio Synergy Core's Direct In bypasses the mic preamps and drives directly into the A/D converters (124 dB dynamic range).
Digital Patchbay for Pro Studios
Thanks to the integrated software control panel, audio signals can be beautiful anywhere - digital, flexible routing and monitoring just like an analog patchbay.
Antelope's 4th Generation Clocking
Antelope Audio is known for building solid digital audio clocks that are found in world-class recording studios and broadcast facilities around the world. The Orion Studio Synergy Core wouldn't be an Antelope interface if it didn't deliver world-class clocking. With Word Clock I/O, the Orion Studio Synergy Core synchronizes your studio to Antelope's 4th generation clocking and uses 64-bit DDS to keep your audio in lockstep at up to 192 kHz.
Antelope Orion Studio Synergy Core Overview
- Thunderbolt 3 & USB audio interface with 12 discrete mic preamps
- Synergy Core Processing Platform with 2 FPGA + 6 DSP Chips
- 2 pairs of monitor outs with 130 dB dynamic range
- A/B mode for two monitor setups
- 30 simultaneous inputs
- 22 simultaneous outputs
- DC-coupled I/O for CV control of analog modular synths
50 Realtime Effects Included
- Gyraf Gyratec IX (Tube Mic Preamp)
- VCA160 (Compressor / Limiter)
- Stay-Levin (Tube Compression Amplifier)
- FET-A76 (FET Compressor)
- X903 (Compressor / Limiter)
- PowerFFC (Compressor)
- VEQ-HLF (Passive High/Low Filter)
- BA-31 (Vintage Mic Preamp)
- ALT-436C (Tube Compressor Amplifier)
- FET-A78 (FET Compressor Limiter)
- SMT-100A (Tube Leveling Amplifier)
- VEQ-1A (Tube Equalizer)
- VMEQ-5 (Tube Mid-Range Equalizer)
- BAE-1023 (3-band Vintage EQ)
- NEU-PEV (Passive Vintage EQ)
- NEU-W492 (5-band Vintage EQ)
- NEU-W495 (3-band Vintage Mastering EQ)
- VEQ-4K BROWN (Legendary Vintage EQ)
- VEQ-4K ORANGE (Legendary Vintage EQ)
- VEQ-4K PINK (Legendary Vintage EQ)
- VEQ-STU 089 (Vintage EQ)
- VEQ-STU 169 (Vintage EQ)
- VEQ-STU 900 (Vintage EQ)
- Clear Q (Parametric EQ)
- Auraverb (Reverb)
- Power EX (Expander)
- Power Gate (Gate)
- Master De-Esser (De-Esser)
- Plexi 59 (UK) (Tube Guitar Amp)
- Bass SuperTube VR (Tube Guitar Amp)
- Darkface 65 (US) (Tube Guitar Amp)
- Top30 (UK) Bright (Tube Guitar Amp)
- Tweed Deluxe (US) (Tube Guitar Amp)
- Overange 120 (UK) (Tube Guitar Amp)
- BurnSphere (DE) Lead (Tube Guitar Amp)
- Marcus II (US) Lead (Tube Guitar Amp)
- Modern (US) CH3 (Tube Guitar Amp)
- Rock 75 (UK) (Tube Guitar Amp)
- Rock 22.10 (UK) (Tube Guitar Amp)
- Darkface 65 2x12 (Guitar Cabinet)
- Top30 2x12 (Guitar Cabinet)
- Modern 4x12 (Guitar Cabinet)
- Green 2x12 (Guitar Cabinet)
- Vintage 4x12 (Guitar Cabinet)
- Green 4x12 (Guitar Cabinet)
- Caliper 50 1x10 (Guitar Cabinet)
- Bluelux 1x12 (Guitar Cabinet)
- Clst 1x12 (Guitar Cabinet)
- England 4x12 (Guitar Cabinet)
- Bass Tube 1x15 (Guitar Cabinet)
The Realtime FX library included during the promotion:
The native plugins included during the promotion:
Technical specifications
ANALOG
Analog Inputs
- 8 x Mic / Line Inputs / Direct In
- 4 x Mic / Line / Hi-Z Inputs / Direct In
- Analog Inserts
- 2 x Inserts on TRS (inputs 1,2)
Analog Outputs
- 2 x Monitor Out on TRS 1/4 Jacks: Can work both simultaneously and in A/B mode
- 2 x ReAmp Out on TRS 1/4 Jacks
- 2 x Line Out (16 channels) on DB25, +20 dBu max, impedance balanced
- 2 x Stereo Headphone Outputs
D/A Monitor Converter
- Dynamic Range: 130 dB
- THD + N: -115 dB
A/D Converter
- Dynamic Range: 124 dB
- THD + N: -112 dB
D/A Converter
- Dynamic Range: 128 dB
- THD + N: -115dB
Discrete Mic Preamps
- ON: -128 dBu
- Dynamic Range: -121 dB
- THD: -106 dB
- Max input: +20 dBu
- Max gain: 75 dB
DIGITAL
Digital Inputs
- 2 x ADAT (up to 16CH)
- 1 x S/PDIF on RCA
Digital Outputs
- 2 x ADAT (up to 16CH)
- 1 x S/PDIF on RCA
- USB 2.0 Hi-Speed
- USB 2.0 Type B connector
- (up to 24 channels)
- Thunderbolt™ 3 I/O
- Thunderbolt™ 3 connector
- (up to 32 channels)
CLOCKING
Word Clock Input
- 1 × Input @ 75 Ohms 3Vpp on BNC 32 - 192kHz
Word Clock Outputs
- 1 × Outputs @ 75 Ohms 3Vpp on BNC 32 - 192kHz
Clocking System
- 4th Generation Acoustically Focused Clocking
- 64-bit DDS
- Oven-controlled crystal oscillator
Clocking Stability
- <+/-0.02 ppm, oven controlled at 64.5ºC/ 148.1ºF
Clock Aging
- < 1 ppm per year
Clock Calibration
- <+/-0.001 ppm
Sample Rates
- 44.1, 48, 88.2, 96, 176.4, 192 (kHz)
OTHER
- Operating Temperature
- 0-50°C, 32-122°F
Weight
- 3.1 kg/ 6.83 lbs (Approx.)
- Dimensions (Approx.)
- Width: 483 mm / 19"
- Height: 44 mm / 1.7"
- Depth: 220 mm /8.6"
Electrical specs
- DC Universal input: 18V
- Power Consumption: 25 Watts Max
In the box
- Orion Studio Synergy Core Thunderbolt™ 3 and USB AD/DA Interface with 12 Discrete Mic Pres
- Quick Start Guide
- Warranty Card
- 1 In-Line DC Power supply
- 1 USB cable
System Requirements
WINDOWS
- PC: Computer with Thunderbolt™ 3 and/or USB ports
- OS: Windows 10 x64 with the latest updates
- RAM: 4GB minimum (8GB or more recommended)
- CPU: Intel Core i3™ or AMD FX and higher
MAC
- Model: Apple Mac 2012 or newer Thunderbolt™ 3 and/or USB ports
- OS X: macOS 10.12 (Sierra) and higher - Recommended macOS 10.14 (Mojave)
- Memory: (RAM)4GB minimum (8GB or more recommended)
- Additional Info: Internet connection required for product activation.
Manufacturer information
Elektrosfera Ltd.
Bul. Tzarigradsko shosse, 7th km, BIC-IZOT, office 600
1784 Sofia
Bulgaria
office@antelopeaudio.com
www.antelopeaudio.com
Bul. Tzarigradsko shosse, 7th km, BIC-IZOT, office 600
1784 Sofia
Bulgaria
office@antelopeaudio.com
www.antelopeaudio.com
PCM0015924-000
Produktinformation
- Number of Microphone Inputs
- 12
- Line ins
- 12
- Line outs
- 20
- S/PDIF coaxial In
- 1
- S/PDIF coaxial Out
- 1
- ADAT In
- 2
- ADAT Out
- 2
- Wordclock In
- 1-2
- Wordclock Out
- 1-2
- Maximum sampling rate in kHz
- 192
- Maximum sampling rate in bit
- 24
- Phantom Power
- Yes
- Manufacturer
- Antelope
- MIDI Interface
- No
- incl. Power Adapter
- Yes
- Weight (kg)
- 5.42
- Width (mm)
- 483
- Height (mm)
- 44
- Depth (mm)
- 220
- Operating system
- Win / Mac OS
- Application Area
- High-End
- Number of channels
- 64x64
- Bus Powered
- No
- Thunderbolt version
- 3
