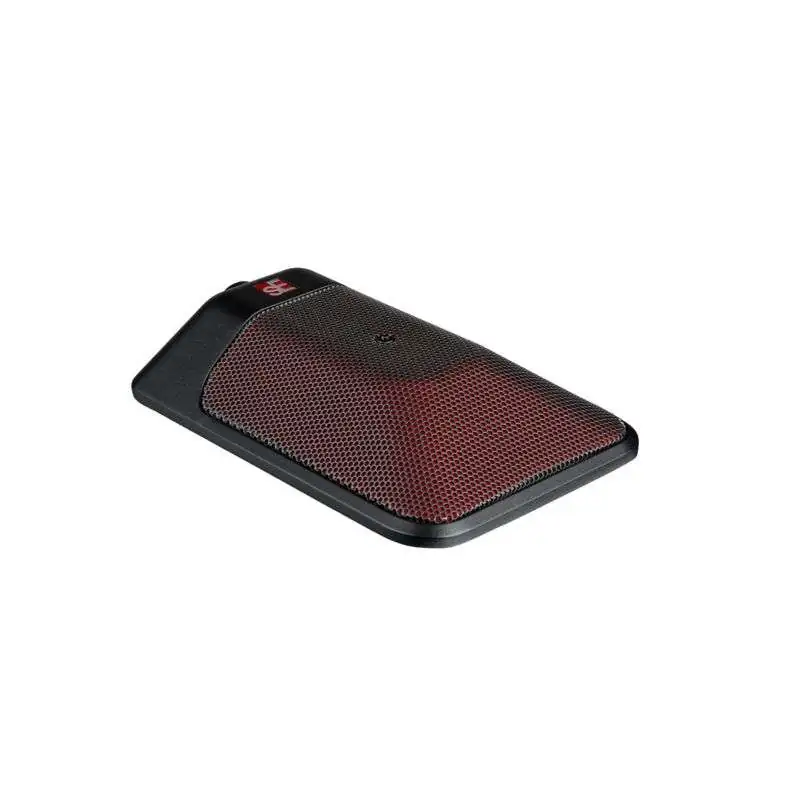

      Boundary microphone with semi-cardioid pickup pattern for recording kick drums or other sources with high sound pressure levels.
      Antal :
      Skriv din anmeldelse

      EU3234363840424446USXX5XSSMLXLXXLXXLArm Length6161,56262,56363,56464,5Bust Circumference8084889296101106111Waist Girth6165697377828792Hip Circumference87919599103108113118

      • Gratis fragt på tusindvis af varerGratis fragt på tusindvis af varer
      • 100% sikre online betalinger100% sikre online betalinger
      • 30 dage til rådighed til at returnere varerne30 dage til rådighed til at returnere varerne

      Boundary microphone with SE8 condenser capsule

      • Typical flat boundary microphone shape
      • Pristine sound due to low-noise electronics
      • Optimal sound quality due to gold-coated 3μm thin diaphragm
      • Perfectly suited for recording kick drums
      • Cardioid characteristic
      • Low-cut filter
      • Exchangeable capsule
      • Fully rubberized back
      • Robust construction
      • Mounting on surfaces possible
      • Compatible with sE Electronics sE8 ball capsule and the Kelly Shu Flatz Isolation System

      Technical data:

      • Limiting sound pressure level: 143 / 153 / 163 dBSPL (0/10/20 dB attenuation filter).
      • Equivalent noise level: 14 dB(A)
      • Dynamic range: 129 / 139 / 149 dB (0/10/20 dB attenuation filter)
      • Signal-to-noise ratio: 80 dB
      • Impact sound filter: 80 / 160 Hz, 6 dB/oct, switchable
      • Attenuator: 10 / 20 dB, switchable
      • Power supply: 48 volts according to IEC 61938
      • Electrical impedance: 60 Ohm
      • Recommended load impedance: >1k Ohm
      • Current consumption: 5.0 mA

      Versatile and rugged boundary microphone.

      The SE Electronics BL8 is a boundary microphone with the same small diaphragm capsule that is built into the popular sE8 condenser microphone. Thanks to its acoustic design, the BL8 also allows you to record very low frequencies with high precision, making it ideal for recording kick drums. The transformerless Class A circuitry gives the Mikforon plenty of headroom without distortion. The cardioid polar pattern of the BL8 can be distinguished between three switchable stages. Thus, there is a switch on the rear panel that can be used to select the characteristic between "classic", "neutral-flat" and "modern". Modern" lowers the mids and 15dB and "classic" and 10dB. The switches for low-cut and att pad are also located on the back of the microphone and are used to counteract overload of the mixing console, microphone amplifier or audio interfaces. Low-frequency signal components can be removed at either 80 or 160 Hz via the Low Cut switch. An attenuation can be set via Att Pad, which reduces the signal of the microphone and 10 or 20dB. The BL8 is constructed of sturdy metal, making it suitable for stage use. In addition, it can be mounted with two screws, which are not included, on flat surfaces such as walls, but also on the grand piano.


      sE electronics
      REC0016544-000

      Produktinformation

      Manufacturer
      SE Electronics
      Weight (kg)
      0.54
      Colour
      Black / Red
      Width (mm)
      95
      Height (mm)
      139
      Depth (mm)
      28.5
      Application Area
      Stage
      Microphone type
      True condenser
      Input
      3-pol XLR
      Frequency range
      20Hz bis 20kHz
      Sensitivity (mV/Pa @ 1kHz)
      25
      Capsule size
      Small
      Mono or stereo
      Mono
      Power supply
      48V
      Maximum SPL in dB
      143
      incl. Accessories
      Bag
      Polar Pattern
      semi-cardioid
