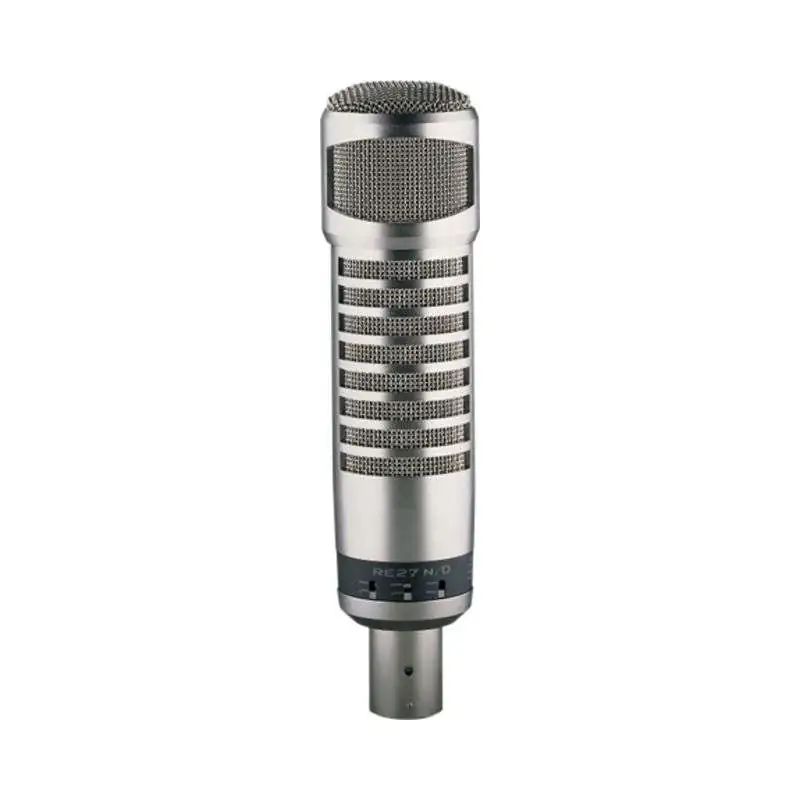

The Electro-Voice RE27N/D is a professional-quality dynamic cardioid microphone designed for broadcast production announce and voice-over, high-quality recording and sound reinforcement applications.

The RE27N/D utilizes a revolutionary neodymium-alloy magnet and a reinforced diaphragm dome, a combination offering increased sensitivity (up to 6-dB more output), undistorted output at high sound pressure levels and an extended high-frequency response. The exceptional sensitivity of the RE27N/D, excellent transient response and inherently low noise of the dynamic transducer, all combine to ensure a superior signal-to-noise ratio, easily comparable to the finest condenser cardioid microphones. To further reduce noise, a highly effective hum-bucking coil is used to attenuate hum from lighting and other sources. The RE27N/D's continuously Variable-DO design reduces bass-boosting "proximity effect" to maintain a uniform low-frequency response, up-close or at a distance. Two easily operated bass roll-off switches, offering a sharp low-frequency cut at 200 Hz or a gentle roll-off, are available for special situations where bass attenuation is required. A third switch is available for reducing the high-frequency treble boost. The true, uniform cardioid polar pattern of the RE27N/D offers the greatest rejection at 180 degrees off axis, ensuring superior gain-before-feedback. An integral blast and wind filter covers each acoustic opening on the RE27N/D, allowing "close-talk" situations with no worry of "P-pop," breath sounds or excessive sibilance. Part of the filter also shock mounts the internal microphone transducer, reducing the transfer of vibration from external sources. This shock-mount system along with the extremely rugged exterior steel casing allows the RE27N/D to withstand all the rigors of professional use.

Features:

• Variable-D N/ DYM dynamic cardioid microphone
• Reduces proximity effect to maintain uniform LF response at any distance
• N/ DYM technology provides wider frequency- responseand higher output
• Three switchable filters: one high frequency, two low frequencies
• Internal blast and wind filter cover reduces popping, breath sounds and excessive sibilance

Specifications:

• Element: Dynamic N/DYM Magnet Structure
• Polar Pattern: Cardioid
• Frequency Response: 45 - 20,000 Hz
• Sensitivity, Open Circuit Voltage: 3.1 mV/pascal = 1 kHz
• Power Level, 1 kHz (0 dB = 1 mV/Pascal): -51 dB
• Hum Pickup Level, typical (60 Hz/ 1 millioersted field): -130 dBmM
• Polarity: Pin 2 will be positive referenced to Pin 3 with positive pressure on diaphragm
• Impedance, Low-Z balanced: 150 Ohms
• Connector Type: 3-pin XLR
• Open Circuit Voltage: 3.1 mV/Pascal
• Finish: Satin Nickel
• Case Material: Steel
• Weight Net: 709 g
• Dimensions (Height X Max Diameter) 217 x 54 mm
