Audio Noise

Each form of noise has its own output, with the following audio signals:

• Blue noise at a spectrum of +3 dB per octave
• White noise at a spectrum of 0 dB per octave
• Pink noise at a spectrum of -3 dB per octave
• Red noise at a spectrum of -6 dB per octave

random clocks

The dual clock generator consists of two independently operating stages. This is based on the signals from the random voltage channels. The frequencies can be set by potentiometers and modulated by CV inputs. Normal and arbitrary clock signals can be picked up individually, whereby the random output has two operating modes:

• More-Than mode: Normal clock signals plus random triggers are output together.
• Less-Than mode: Only random triggers are output.

Random Voltages

Two channels generate random voltages on a semitone and octave basis. The number of steps (n) used can be varied from 1 to 6 via rotary control or CV inputs. There are two ways of processing the values:

• 2n channel: Generates quantized voltages in 1/12 V steps. (Corresponds to the standard half-tone of 1 V per octave.) The value range extends from two to 64 steps. (0 V to +5.25 V)
• N+1 channel: Generates voltages quantized to 1 V. (Corresponds to octave steps according to the standard 1 V per octave.) The value range extends from two to seven steps. (0 V to +6 V)

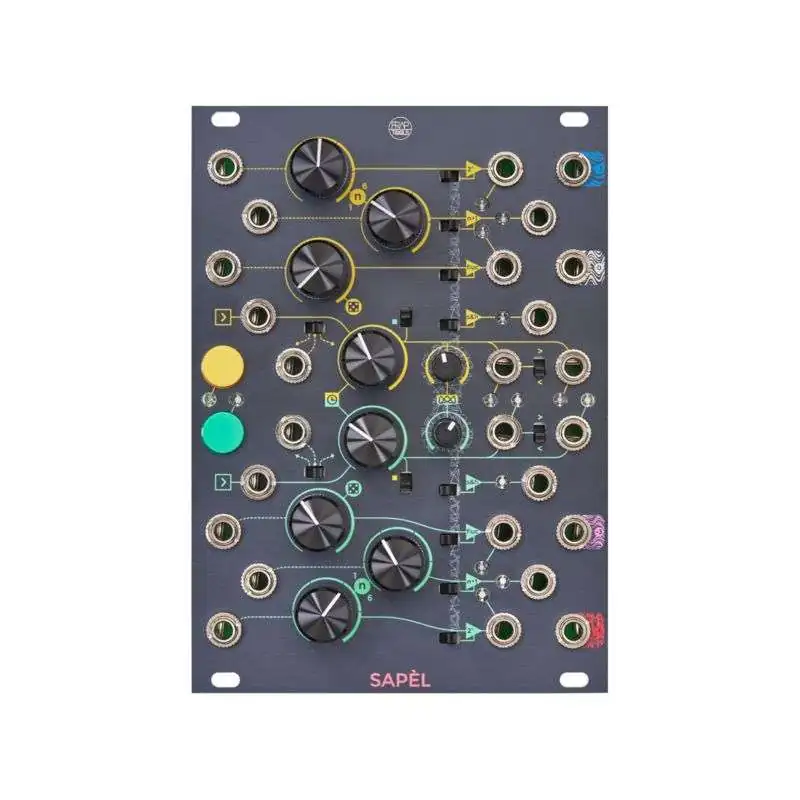

Frap Tools Sapel at a glance:

• Random module for Eurorack systems
• Randomly generates control voltages and noise
• Four versions Noise: white, blue, pink and red noise
• Two mirrored random clocks
• random voltages
