After Later Audio Outs in detail

OUTS by After Later Audio is an expander for the audio mixer Bartender V2 with Barback V2 extension, which can be configured in four different ways. First things first: OUTS is ONE 2TE module with TWO panels printed on both sides. The module does not contain any electronics in that sense, it only serves to connect different buses with sockets. OUTS can be configured for only one mode. If several bus or channel outputs are required, additional units must be planned.

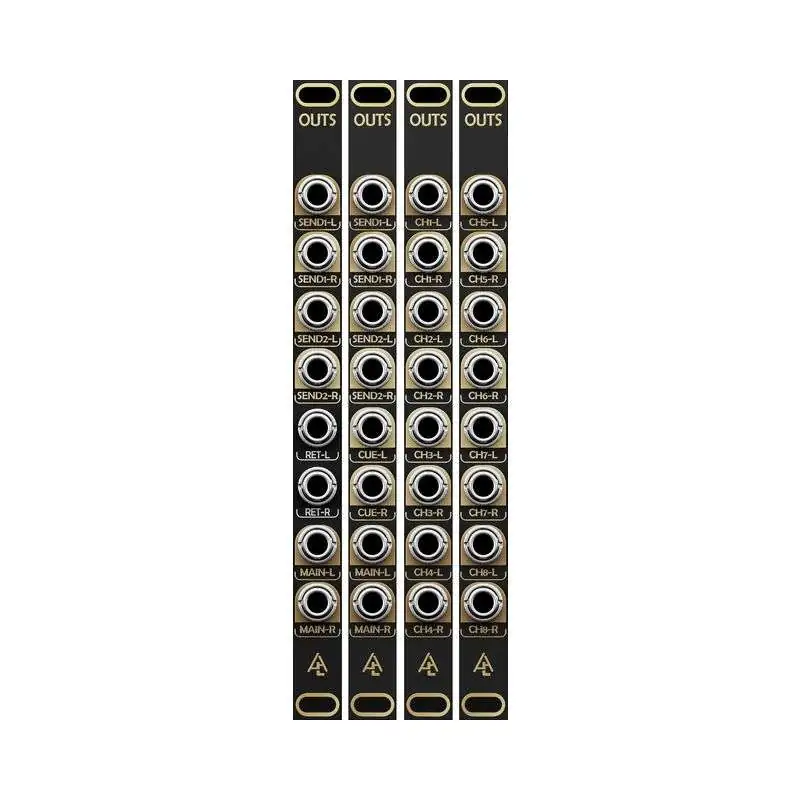

The following configurations are possible:

• (1) Bus outputs - In this mode, the four stereo outputs are provided for all four buses. This mode is best used as an additional set of outputs for Bartender V2 or to connect to a chain of barbacks (no Bartender required). It is also a way to get output jacks for the CUE bus.
• (2) Bus outputs with Return (without CUE) - This mode is similar to the first mode, by turning the panel and switching the Jumper the CUE outputs are turned into return inputs.
• (3) Channel outputs (1-4) - In this mode, the unbalanced outputs for four stereo channels PRE or POST are output.
• (4) Channel outputs (5-8) - This mode is identical to the third mode, by turning the panel you get the labeling for channels 5-8.
