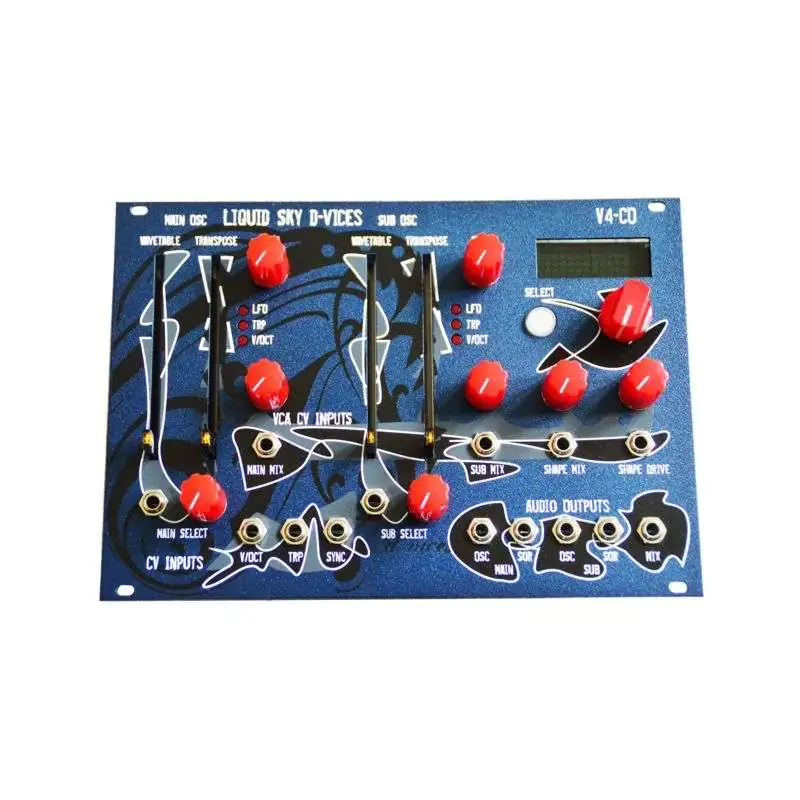

      The V4CO from Liquid Sky DVices is a dual wavetable oscillator with authentic 8-bit sound.
      Antal :
      Skriv din anmeldelse

      EU3234363840424446USXX5XSSMLXLXXLXXLArm Length6161,56262,56363,56464,5Bust Circumference8084889296101106111Waist Girth6165697377828792Hip Circumference87919599103108113118

      • Gratis fragt på tusindvis af varerGratis fragt på tusindvis af varer
      • 100% sikre online betalinger100% sikre online betalinger
      • 30 dage til rådighed til at returnere varerne30 dage til rådighed til at returnere varerne
      • Dual 8 bit Wavetable oscillator
      • 16 x 16 waveforms - different for each OSC
      • 2 sub-oscillators with square waveforms
      • Audio / LFO mode for each OSC
      • Waveform shuffle
      • True 8-bit sound
      • Detune function
      • Hardsync
      • FM input
      • Analog VCA per oscillator
      • Analog Overdrive (controllable via VCA)
      • Chromatic quantizer
      • Audio outputs for oscillator 1 + 2, sub-oscillator 1 +2, Mix (mix without subs)
      • Expandable with GLITHc expander

      The V4CO from Liquid Sky DVices is a dual Wavetable oscillator with authentic 8-bit sound. Each of the two-tone generators uses 16 x 16 waveforms, with the second oscillator containing a different wavetable set than the first. Attached to the oscillators are two sub-oscillators with square waveforms that operate an octave below the frequency of the oscillators and provide a fat Bass sound. The frequency range of both oscillators can be easily switched between audio and LFO modes. If you need an LFO with unusual waveforms in other patches, the V4CO is also an experimental CV source. If you patch the second OSC in LFO mode into the common FM input, the Dual oscillator really brings out the big guns. Details such as waveform shuffle, a detune function and hardsync are exciting functions to fully exploit the sonic possibilities. A chromatic quantizer works at the 1V/Oct input, making it easy to hit the right notes. The levels of the oscillators can be modulated internally via their own VCAs. An analogue distortion is connected downstream of the VCAs to give the rather harsh sound the necessary hardness. Oscillators 1 + 2 and sub-oscillators 1 + 2 are equipped with individual outputs. The mix output provides the (distorted and/or level-modulated) signal from the tone generators without subs. As an option, the GLITHc expander can be used to get to grips with the sounds of the V4CO at circuit bending level.

      Liquid Sky d-vices - V4CO - very first try

      Liquid Sky d-vices #V4CO & GLITHc BOARD eXPENDR jam

      liquid sky d-vices #v4co oscillator with #overdrive - demo 1

      Liquid Sky D-Vices - V4CO + Expander

      Liquid Sky D-Vices
      SYN0008912-000

      Produktinformation

      Depth (mm)
      60
      + 12 V (mA)
      160
      - 12 V (mA)
      35
      TE / HP
      36
      Manufacturer
      Liquid Sky d-vices
