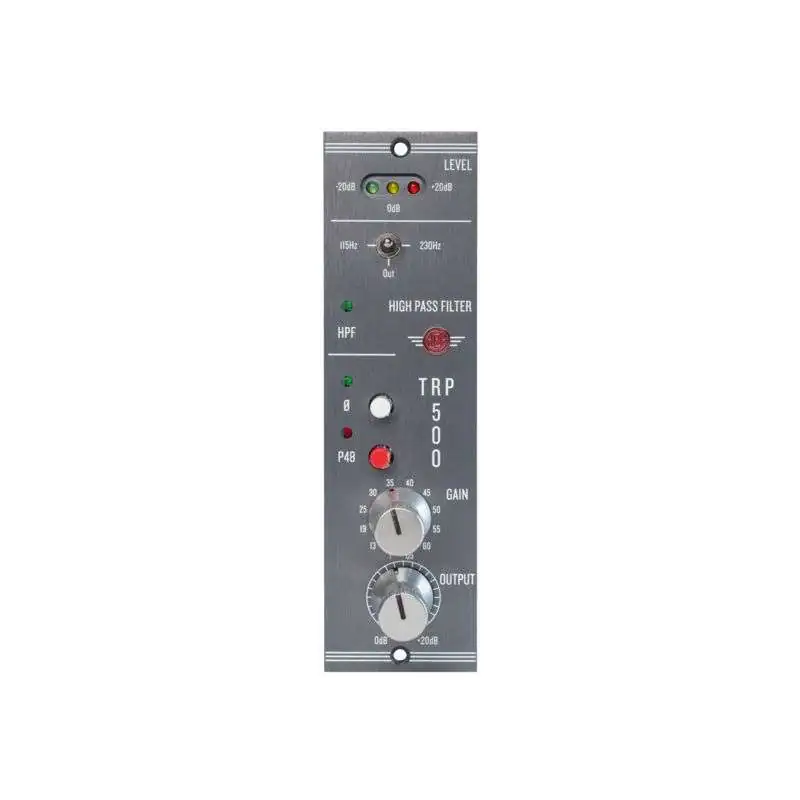

AEA TRP500
      AEA TRP500

      AEA TRP500

      679,15 €
      SKAT INKLUDERET
      På lager
      Preamplifier in API 500 format. 85dB gain, very clean & linear. Especially suitable for ribbon microphones. With low cut.
      Antal :
      Skriv din anmeldelse

      EU3234363840424446USXX5XSSMLXLXXLXXLArm Length6161,56262,56363,56464,5Bust Circumference8084889296101106111Waist Girth6165697377828792Hip Circumference87919599103108113118

      • Gratis fragt på tusindvis af varerGratis fragt på tusindvis af varer
      • 100% sikre online betalinger100% sikre online betalinger
      • 30 dage til rådighed til at returnere varerne30 dage til rådighed til at returnere varerne

      AEA TRP500 Preamplifier Overview:

      • very linear, clean and low-noise high-gain circuitry
      • exceptionally high impedance microphone input for optimal transient and frequency response
      • special preamp - designed for plunger coils and ribbons
      • high pass filter @ 100Hz/12dB switchable
      • stepped gain switch
      • PCB switch for permanent deactivation of phantom power - best protection for expensive mics
      • for installation in an API 500 rack

      The AEA TRP500 is a preamplifier specifically designed for dynamic microphones, i.e. plunger coils and ribbons. It delivers an impressive 85dB maximum gain (10 times more gain than usual!) and an extremely high input impedance of 100kOhm. It is well known that the main problem when working with classic, American ribbon microphones is the need for a lot of preamplification, especially with low noise, so that the microphones can be used sensibly, e.g. for acoustic guitar, singers or as room microphones. The consistent transfer of this need into a product AEA has not only mastered with the TRP500, but strictly speaking even overfulfilled, so that you will have peace with this Preamp for the rest of your career.

      Although that would actually be enough, the developers have also designed the input stages of the TRP500 to be very high-impedance: As known from guitar pickups, the perceived detail and transient response of a recording increases with the impedance. In addition, there is a straightening of the frequency response, which is extremely useful for ribbons: After all, they are usually almost ideal pressure gradient receivers with figure-of-8 polar pattern and correspondingly bent bass and treble band.

      AEA
      REC0016267-000

      Produktinformation

      Phantom Power
      48V
      Power Supply
      External Frame Required
      Number of channels
      1
      Highpass filter
      @ 115Hz 230Hz
      Amplifier principle
      Transistor
      Format
      Api 500
      Max. Gain in db
      85
      Hi-Z Inputs
      0
      THD+N in %
      0
      Transformer balanced
      No
      Digital converter
      No
      Input Impedance (Ohm)
      100000
      Additional functions
      Phase reversal
      Equivalent Noise (dB)
      -128
      Manufacturer
      AEA
