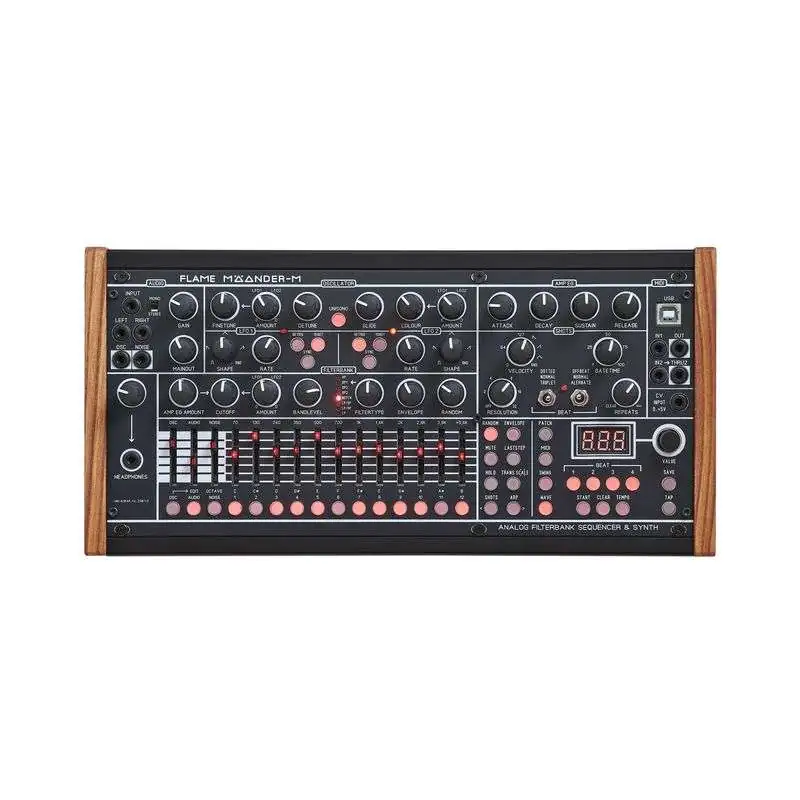

• Hybrid synthvoice
• 4-voice polyphonic with Unisono mode
• Wavetable oscillator / FM oscillator
• Noise generator
• 12-band fixed filter bank
• 24 dB slope per band
• Different filter types
• 2 BPM-synchronizable LFOs
• ADSR envelope
• live sequencer

• Audio input
• Stereo output
• Headphone output
• Audio outputs for oscillator & noise
• Freely assignable CV input
• MIDI In 1, In 2, Thru & Out via TRS adapter

• USB MIDI

• Requirements as Eurorack module: 56HP, 37mm, +12V 200mA / -12V 200mA

Sequencer

The sequencer records 15 tracks up to four bars long on request. This includes the synth part with the wavetable oscillator, the audio input, the noise generator and each of the 12 bands of the fixed filter bank. In addition, the handy SHOTS function can be used to create a beat effect for all tracks, which can be related to velocity, clock grid, repetition density and gate time. Even more Live variation is hardly possible!

Audio input and other connections

The audio input can be switched between Line and High-Z (guitar). This allows external signals to be animated using a fixed filter bank, envelope, VCA and LFOs. Everything is possible here, from a static filter cut to extremely dynamic, constantly modulating filter sequences. User is then in control of whether this is applied freely or with a clear BPM reference. A pair of stereo sockets routes the audio signal from the Meander-M to the next instance. In terms of MIDI, the Synthvoice is well equipped: in addition to USB MIDI, there are two MIDI inputs as well as Thru and Out, which allows convenient integration into any MIDI environment. Audio outputs for the oscillator and Noise as well as a freely assignable CV input have also been included.
