With the brand-new AVX series, the renowned audio manufacturer Sennheiser presents a series of new transmission systems that are specifically aimed at the professional and semi-professional video and broadcast sector. The handling is very simple. The compact receiver, which can be rotated 360 degrees, is simply plugged into the microphone input of the camera, where it automatically synchronizes with the microphone transmitter. The system independently searches for a free transmission frequency, adjusts the sensitivity to the camera and transmits the audio signal via a specially protected connection in the license-free 1.9 GHz range. For DSLR cameras with a jack input, the AVX sets include an adapter cable from XLR to mini-jack, as well as a hot shoe adapter that allows the receiver to be quickly and securely mounted on the digital SLR camera.

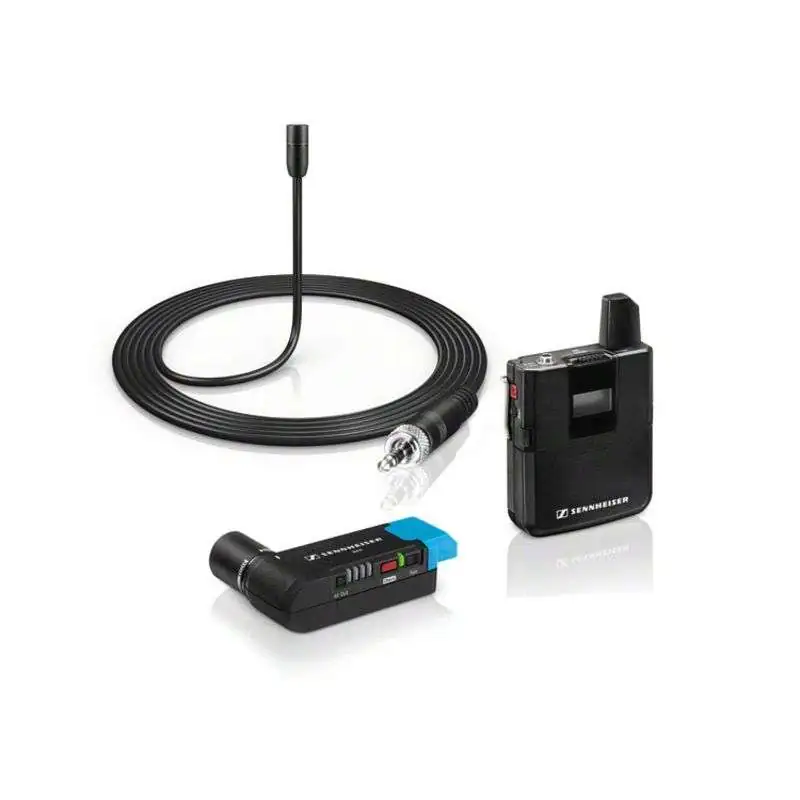

With its lavalier microphone, this Set is ideal for "hands-free" interviews and documentaries.

Features

• Very fast set-up

• Direct connection to XLR audio input

• Ultra-compact receiver

• Turns on and off via P48 phantom power

• Optimized dynamic range

• Auto frequency management

• AES-256 encryption

• Sign-on free frequency range

• Accessories for use with DSLR including

• Metal chassis

Technical specifications:

• Audio input: 3.5 mm mini jack
• Audio output: XLR
• Audio output level: -30 dBu - 0 dBu in 4 steps
• Power supply: Li-Ion 3.7 V DC
• Dynamic range: > 120 dB(A)
• Frequency band: 1880 - 1930 MHz (country dependent)
• Audio transmission range: 20 Hz - 20000 Hz
• Modulation type: GFSK
• Operating time: > 4 h (receiver), typ. 15 h (transmitter with Li-Ion battery pack)
• RF output power: Adaptive up to 250 mW (peak), country dependent
• Sample rates: 24 bit / 48 kHz
• Noise level distance: > 90 dB(A)
• Distortion factor at 1KHz: typ. 0.1 %
• Weight receiver: 87 g (incl. battery pack)
• Latency: 19 ms

Scope of delivery:

• Plug-on receiver
• Battery pack
• USB charger
• USB charging cable
• Pocket transmitter
• ME 2 lavelier microphone
• Microphone clip
• Hot shoe connector
• Belt clip
• XLR to mini jack adapter cable
• Bag
