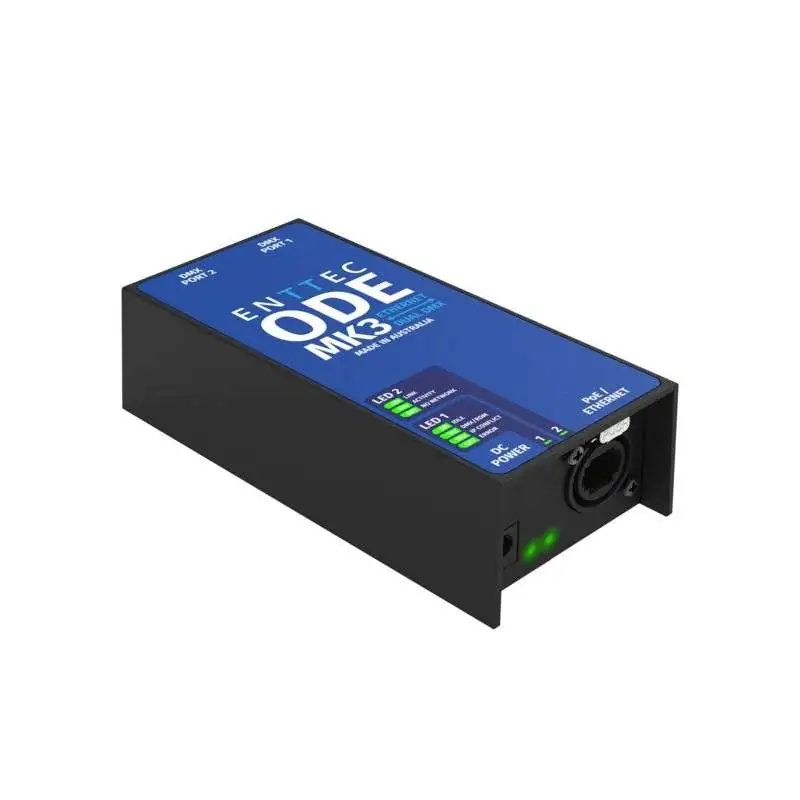

Enttec ODE Mk3
300,90 €
SKAT INKLUDERET
Two-universe bi-directional Ethernet to DMX converter with Art RDM support, ruggedized enclosure
Gratis fragt på tusindvis af varer
100% sikre online betalinger
30 dage til rådighed til at returnere varerne
Ethernet to DMX converter
- Rugged, reliable Ethernet-to-DMX converter
- Two bidirectional 5-pin DMX jacks with optional RDM (E1.20) support
- IEEE 802.3af PoE (Power over Ethernet) or DC 12-24V input
- Support for Art-Net 4, sACN and ESP to DMX conversion
- Support for DMX -> Art-Net (broadcast or unicast) / DMX -> sACN (multicast or unicast)
- Intuitive fixture configuration and updating via built-in localhost web interface
- 10/100 Mbps network speed
- "Current Port Buffer" allows live DMX values to be displayed in the web interface
- Configurable DMX output update rate
Featuring 2 universes of bidirectional Ethernet to DMX conversion with Art-RDM support, Power over Ethernet (PoE) or flexible 12-24V DC input enables the Enttec ODE Mk3 to quickly deploy DMX systems compatible with a wide range of devices.
The ultimate Power Over Ethernet DMX interface
The ODE MK3 is a rugged, reliable, installation-grade Ethernet-to-DMX converter designed to connect DMX devices to your Ethernet network infrastructure. Now you can take your lighting project to the next level. With two universes of bidirectional eDMX-to-DMX conversion and Art-RDM support, the ODE MK3 is compatible with a wide range of devices and allows you to quickly deploy your DMX system. Simply connect, configure and take control!
In addition, this Ethernet-to-DMX/RDM gateway is packed with installer-friendly features for quick installation and configuration, all managed through a web user interface - and contained in a compact, portable form factor.
Simple website configuration
Configuration is managed via the localhost web interface to simplify commissioning and updating. Consequently, the ODE MK3 can be configured from any computer on your network.
Flexible power supply options
Power the Enttec ODE MK3 with IEEE 802.3af PoE (Power over Ethernet) or DC 12-24V input.
Sync mode
All ENTEC Ethernet hardware accepts ArtSync to fully synchronize Art-Net data across your installation when receiving Art-Net from the same source, protecting against content tearing and ensuring professional-looking output on your rig.
Time-saving and installer-friendly
This Ethernet-to-DMX converter is packed with installer-friendly features, including industry-standard 5-pin XLR connectors to simplify wiring.
A "Current Port Buffer" in the web interface also allows you to view live DMX values from the localhost web interface to troubleshoot your installation. After receiving power, the device is ready to use within seconds.
Monitor activity
LED indicators let you monitor connectivity and status at a glance.
Supported protocols
The main functionality of the ODE Mk3 is to convert between Ethernet DMX protocols and USITT DMX512-A (DMX). The following conversions are available with the ODE Mk3:
- Art-Net - DMX (with/without RDM. ANSI E1.20 RDM supported)
- DMX - Art-Net (broadcast or unicast)
- sACN - DMX
- DMX - sACN (Multicast or Unicast)
- ESP - DMX
- DMX - ESP (broadcast or unicast)
An important part of your smart home infrastructure
Unlock a world of potential by integrating the ODE Mk3 Ethernet-to-DMX interface. Simply combine it with a number of popular automation systems that use generic Art-Net or sACN (E1.31) drivers so you can send and receive DMX and RDM.
If your control system of choice is not capable of sending Art-Net or sACN, the S-Play show controller is capable of receiving a wide range of low bandwidth input triggers and sending streams of lighting control data to the ODE MK3 and other DMX nodes in your installation network.
Emu
EMU is not just a great lighting tool designed for creating beat-perfect light shows. It gives you the ability to detect ODEs on your network with ArtPoll and test the output by sending control data over your network. EMU runs on both Windows and macOS.
LIG0018621-000
Produktinformation
- User's Manual
- Yes
- DMX Controller
- Yes
- Interface Included
- Yes
- Programmable via PC
- Yes
- Ethernet / Artnet
- Yes
- Number of Universes
- 2
- Manufacturer
- Enttec
